FCI ST100A Series User Manual

ST100A Series Flow Meter INSTALLATION
Fluid Components International LLC 15

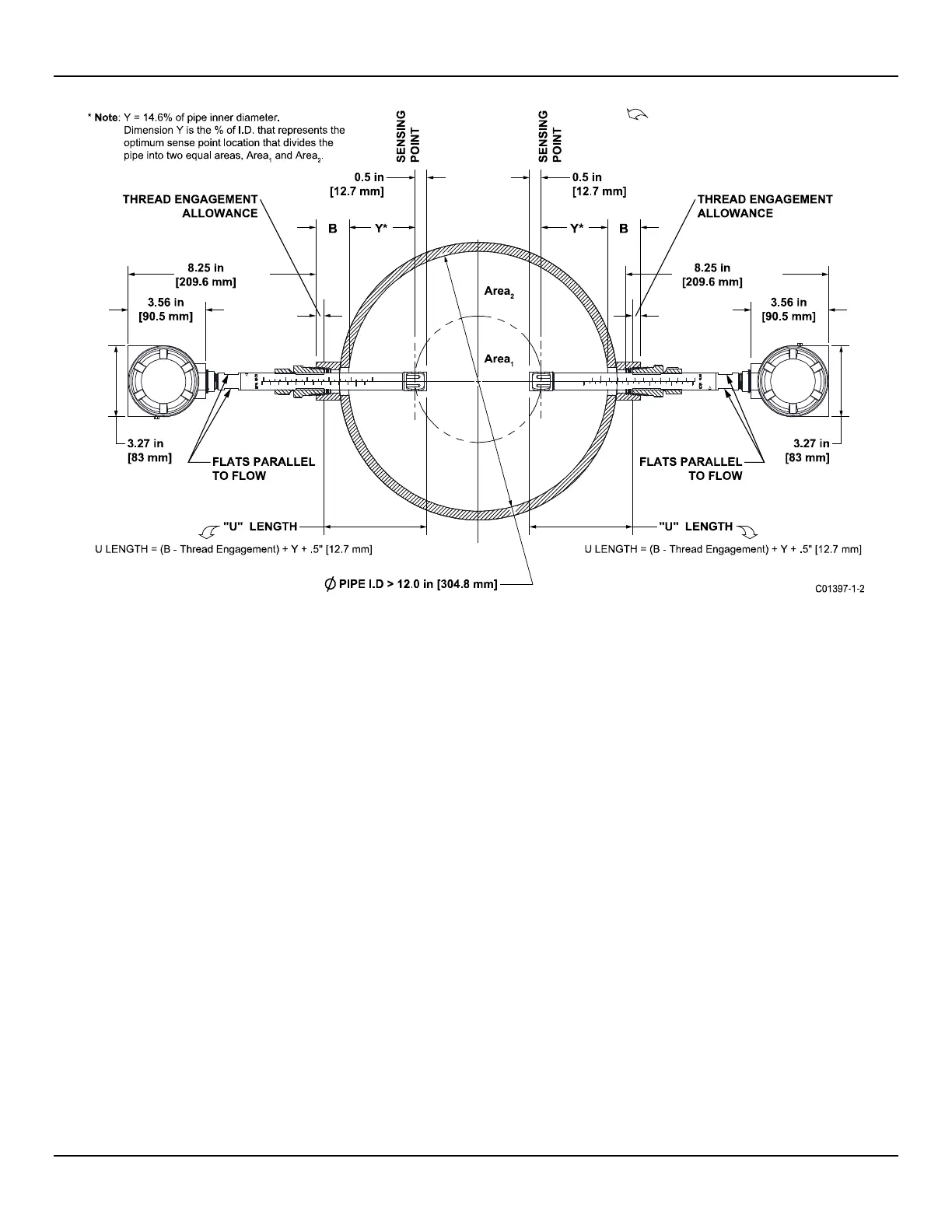

Figure 8 – 2-Point Flow Element Installation (Compression Fitting Shown)
Compression Fitting, ¾" or 1" NPT
MAX
MAX
C
L
C
L
C
L
C
L
Flow Element Wiring
The
ST102AA/ST112AA can be configured with one integral and one remote flow element or with two separate flow elements and remote
electronics. Wiring diagrams for these configurations are located in Appendix B. Each of the flow elements on the ST102A/ST112 are
connected to the transmitter using an 8-conductor shielded cable as specified in Table 2 on page 21.
