OPERATION ST100A Series Flow Meter
38 Fluid Components International LLC
Instrument setup includes the following parameters:
• Flow – Sets flow parameters including flow type and flow timebase. Table 6 below summarizes the Flow parameters. The default is
Vel Flow, SFPS (Standard Feet Per Second).
• Temperature (Temp) – Sets the temperature scale in use: Degrees C (Celsius) or Degrees F (Fahrenheit). The default is Degrees F.
• Pressure (Pres) – This sets the pressure units in use: psi(a) or psi(g). The default is None.
• Name – This sets a descriptive name for the displayed process flow. Use a name as required for your application. The default is Empty.
• Restore – Select this item to restore the instrument setup parameters to the factory defaults.
• Pipe – This sets the pipe geometry. Choose between Round and Rectangular. When set to Round the diameter (D) dimension is shown
– set the diameter of the round pipe in inches (default is 1.0"). When set to Rectangular the width (W) and height (H) dimensions are
shown – set the width and height of the rectanglular pipe in inches. The default is Rectangular, W: 1.0", H: 10.0".
Table 6 – Flow Parameters, HMI
Velocity
Volumetric
Mass
Note: Bold type indicates factory default setting.
D
ISPLAY OPTIONS
Figure 36 below summarizes the display setup options.

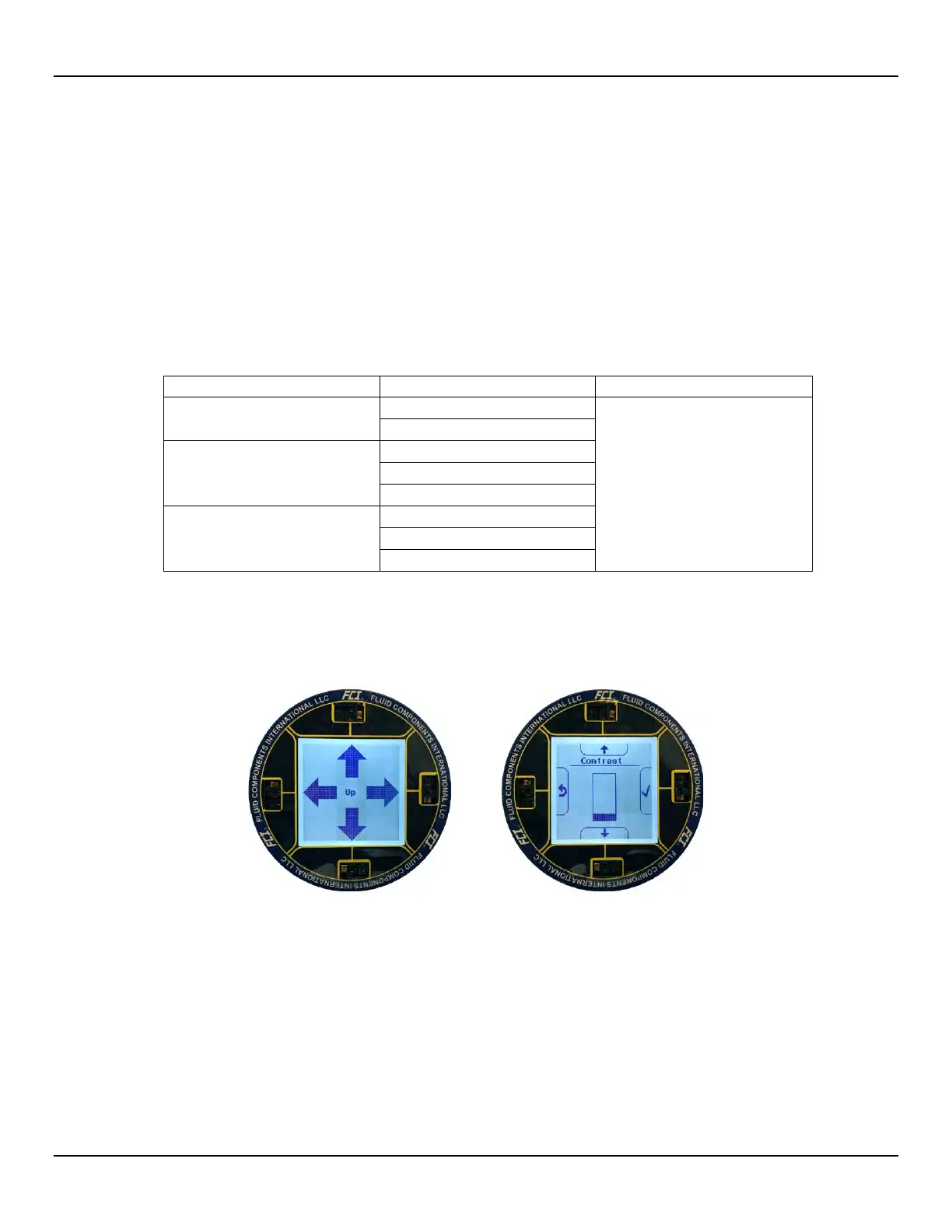

Figure 36 – Display Setup Options
Display setup includes the following parameters:
• Or
ientation – Use this parameter to change the LCD orientation for easier viewing. Selecting Orientation changes the display to
arrows pointing to the four sides of the LCD. Press the corresponding IR sensor to assign that side as the LCD top.
• Contrast – Use this parameter to adjust the display contrast via the Scroll Up/Scroll Down buttons. Contrast decreases with upward
movement of the bar graph.
L
ANGUAGE OPTION
There is currently only one language option: English (default/fixed).
