ST100A Series Flow Meter OPERATION
Fluid Components International LLC 41

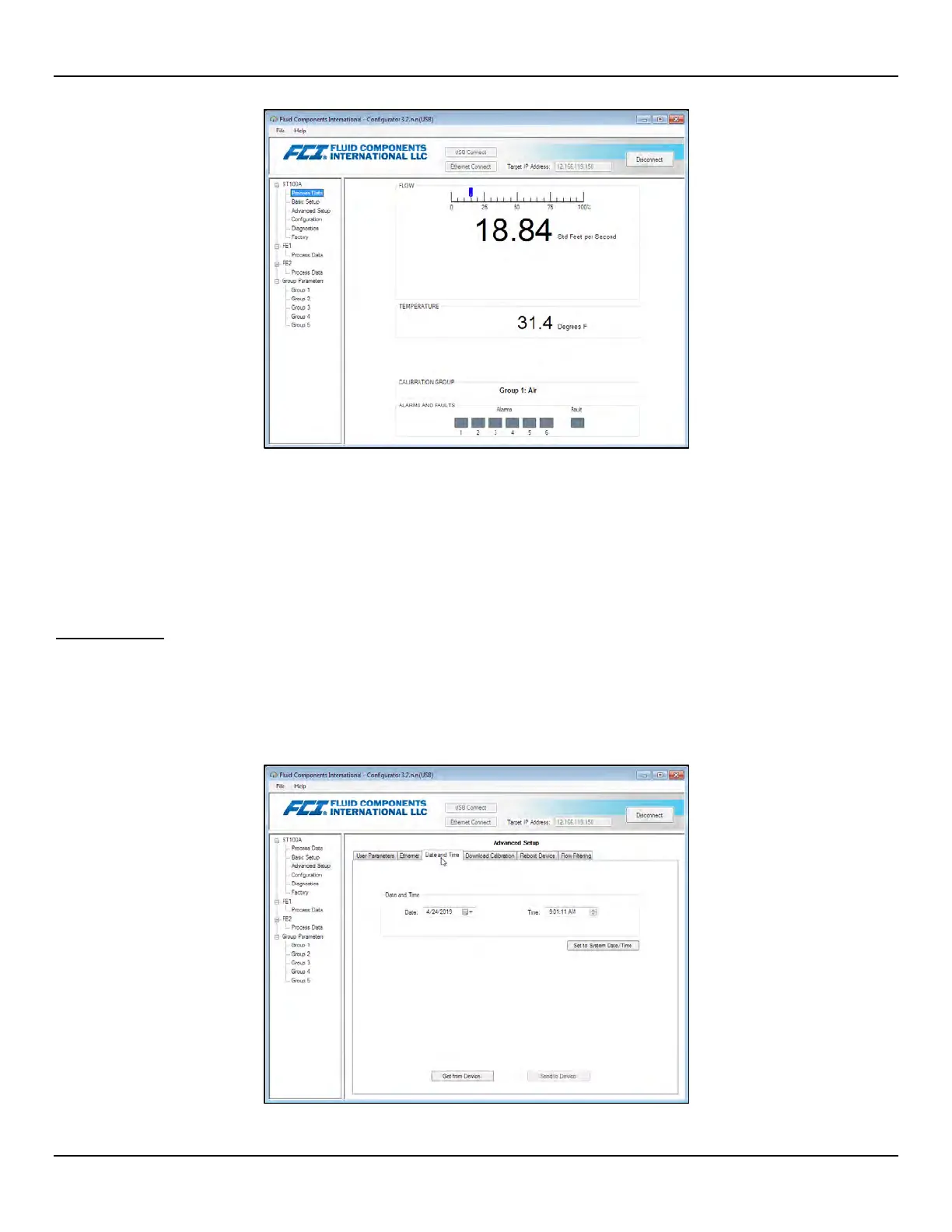

Figure 40 – Example Process Data Screen
With the configuration soft
ware running on the attached PC the user has access to all configurable features of the ST100A Series instrument. When
prompted, enter the User Level Password (2772) to make parameter changes. For more detailed instructions on the configuration software, refer to
the ST100A Series Configuration Software manual 06EN003481.
An asterisk (*) shown next to a menu item on the optional display means that the item is “locked out” due to the flow
meter communicating with the configurator. Note also that the HMI presents only a subset of configurable settings.
Real Time Clock
The ST100A Series system time is maintained by a battery-powered real time clock that is set to Pacific Time at the factory. Synchronize the
instrument’s system time to the installed location’s local time using the configuration software. The real time clock cannot be set using the HMI menu
interface. If the real time clock is not set correctly, or becomes corrupted, the process data logging feature will not work properly.
Start the ST100A Series configuration software application. Click USB Connect on the welcome screen. Select the Advanced Setup branch from the
menu tree on the window's left side. Select the Date and Time tab.
Figure 41 – Example Date and Time Set Screen
