OPERATION ST100A Series Flow Meter
36 Fluid Components International LLC
HMI Display Menu Navigation
In the HMI setup mode use the four IR sensors to navigate the menu. Touch the top/bottom sensor to scroll up ()/down () through the
menu selections. Touch the right sensor to select (). Touch the left sensor to go back () to the previous menu.
Some setup parameters are password protected—when prompted enter the HMI user password: E#C. Use the Up/Down scroll key to
select a character. After scrolling to the desired character, touch the Select () key to go to the next character. After entering the password
the display returns to the menu item. Select the item again by touching the Select key.
To immediately exit HMI setup and return to the process display touch the bottom () sensor for 2 seconds. Backing out of menus via
repeated touches of the left button also exits setup. Refer to HMI Menu Outline, page 145 for an overall view of the menu structure. Note
that the front panel menu provides only a small subset of the instrument’s settings. This makes the front panel menu an ideal tool for quick
adjustments.
The optional HMI interface provides for quick adjustments using only a subset of instrument programming
commands. Use the ST100A Series configuration software application for in-depth programming.
A menu item with an asterisk (*) is inaccessible due to an active connection to a PC running the configurator software
(only one master can be active at a time), or an extended mode is in effect which restricts group selection.
To accommodate various instrument mounting situations the LCD can be electronically rotated for easy viewing. Refer to
Display Options, page 38 for details.

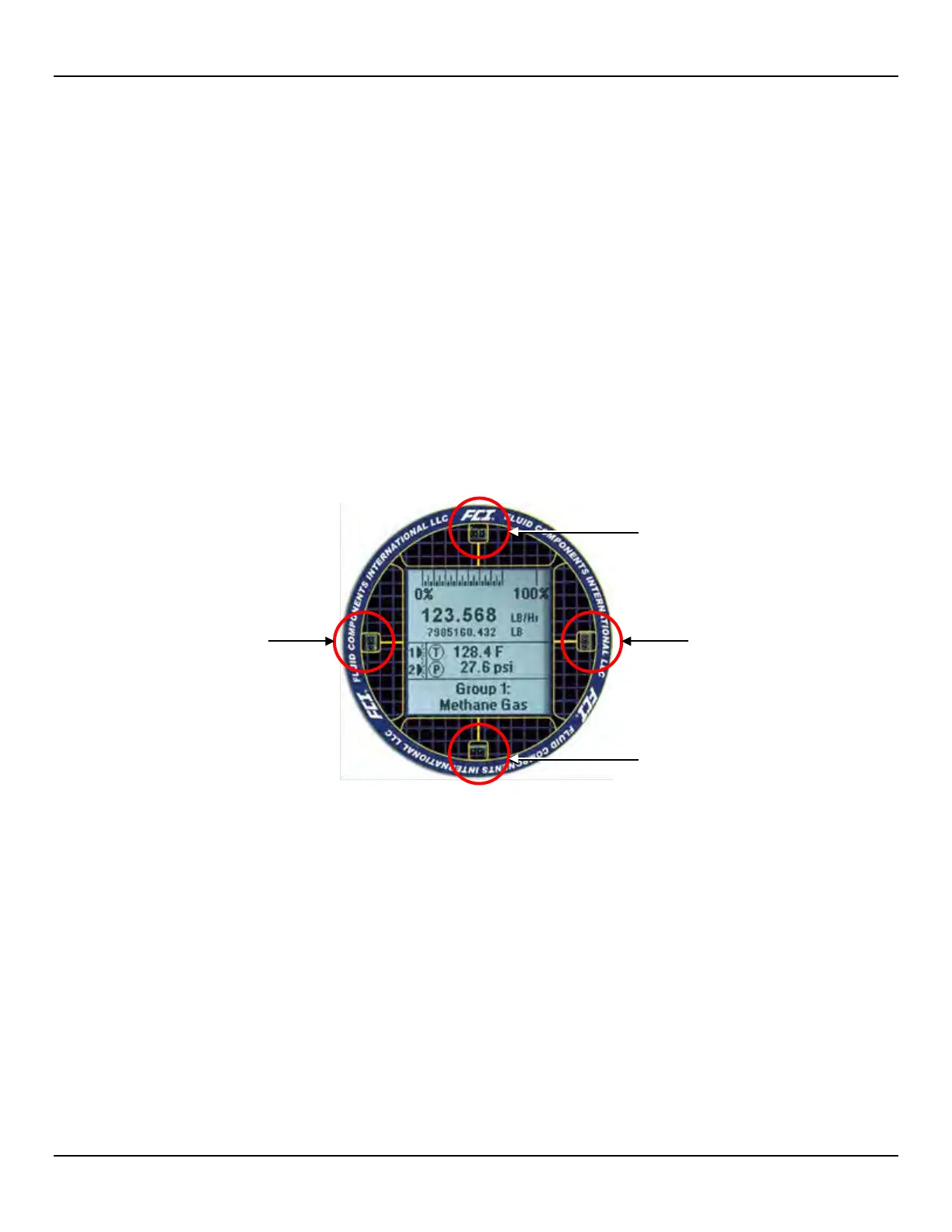

Figure 33 – HMI Display IR Sensor Functions
or EXIT Setup (hold 2 sec.)
Previous Menu
To Next Page
