■ Comparison with server management function of ServerView
"ServerView", software provided with the server, can manage the server remotely if OS is normally
operating. The Remote Management Controller can operate even in the state of the server hang,
therefore, it is effective when the server cannot be monitored by ServerView.
D.4 Remote Management Controller Upgrade
(PG-RMCU1)
This option is a license key to make Remote Management Controller's console redirection function and
remote storage function effective.
● Console Redirection Function
The server can be remotely operated by using console redirection function. Remote operation such as the
keyboard and mouse operation, and seeing the contents of the display of the server are possible.

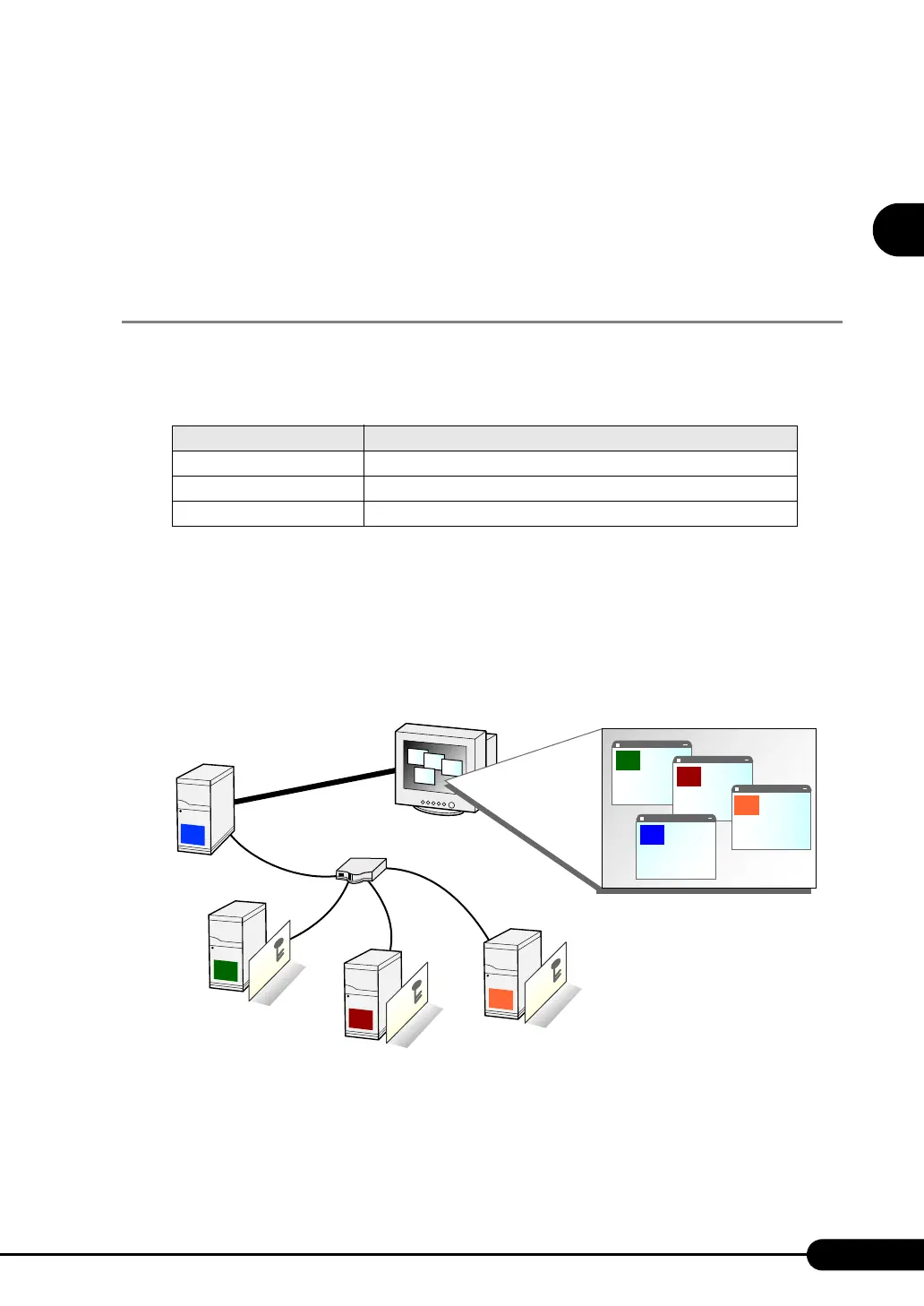

By using console redirection function, it makes possible to achieve the function of the CRT/KB
switching in the environment where multiple servers are used. The composition of the multiple servers
environment is shown in the figure below.
table: Specifications of Remote Management Controller Upgrade
Item Specifications
Product Name Remote Management Controller Upgrade
Model PG-RMCU1
Function Console redirection function / Remote storage function
CRT/KB interface
Console
Console
㪧㪩㪠㪤㪜㪩㪞㪰
HUB
LAN
1
2
3
4
2
3
㪧㪞㪄㪩㪤㪚㪬㪈
㪧㪞㪄㪩㪤㪚㪬㪈
㪧㪞㪄㪩㪤㪚㪬㪈
㪧㪞㪄㪩㪤㪚㪬㪈
㪧㪞㪄㪩㪤㪚㪬㪈
㪧㪞㪄㪩㪤㪚㪬㪈
PG-RMCU1
PG-RMCU1
PG-RMCU1
Console
window
Console
window
4
Console
window
Console
window
1

Fujitsu Primergy RX300 S3 Specifications

General

Tcase	78 °C
Bus type	FSB
FSB Parity	Yes
Processor cache	4 MB
Processor cores	2
Processor model	5080
Processor series	Intel Xeon 5000 Series
Processor socket	LGA 771 (Socket J)
Processor threads	4
Processor codename	Dempsey
Motherboard chipset	Intel® 5000P
Processing Die size	162 mm²
Processor frequency	3.73 GHz
Processor cache type	L2
Processor lithography	65 nm
Processor system type	DP
Processor manufacturer	Intel
Processor package size	37.5 x 37.5 mm
Processor front side bus	1066 MHz
Processor operating modes	64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	130 W
Processor core voltage (AC)	1.25 - 1.40 V
CPU multiplier (bus/core ratio)	14
Number of Processing Die Transistors	376 M
Maximum graphics card memory	8 MB
Memory slots	8
Internal memory	2 GB
Internal memory type	DDR2-SDRAM
Maximum internal memory	32 GB
Memory layout (slots x size)	2 x 1 GB
Networking features	Ethernet/Fast Ethernet/Gigabit Ethernet
Expansion slots	1 x PCIe x8, 2 x PCIe x4, 2 x PCI-X
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	56 dB
Chassis type	Rack (2U)
Compatible operating systems	Windows Server 2003, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, VMware ESX
I/O ports	8 x SAS
Power supply	600 W
Power requirements	100 - 240V, 50/60 Hz
Operating temperature (T-T)	10 - 35 °C
Safety	IEC 60950-1, EN 60950-1
Electromagnetic compatibility	EN 55 022 A, EN 55024, EN 61000-3-2 / -3-3
RAID levels	1, 5, 10, 50
Processor ARK ID	27213

Weight and Dimensions

Depth	785 mm
Width	483 mm
Height	86 mm
Weight	25000 g
