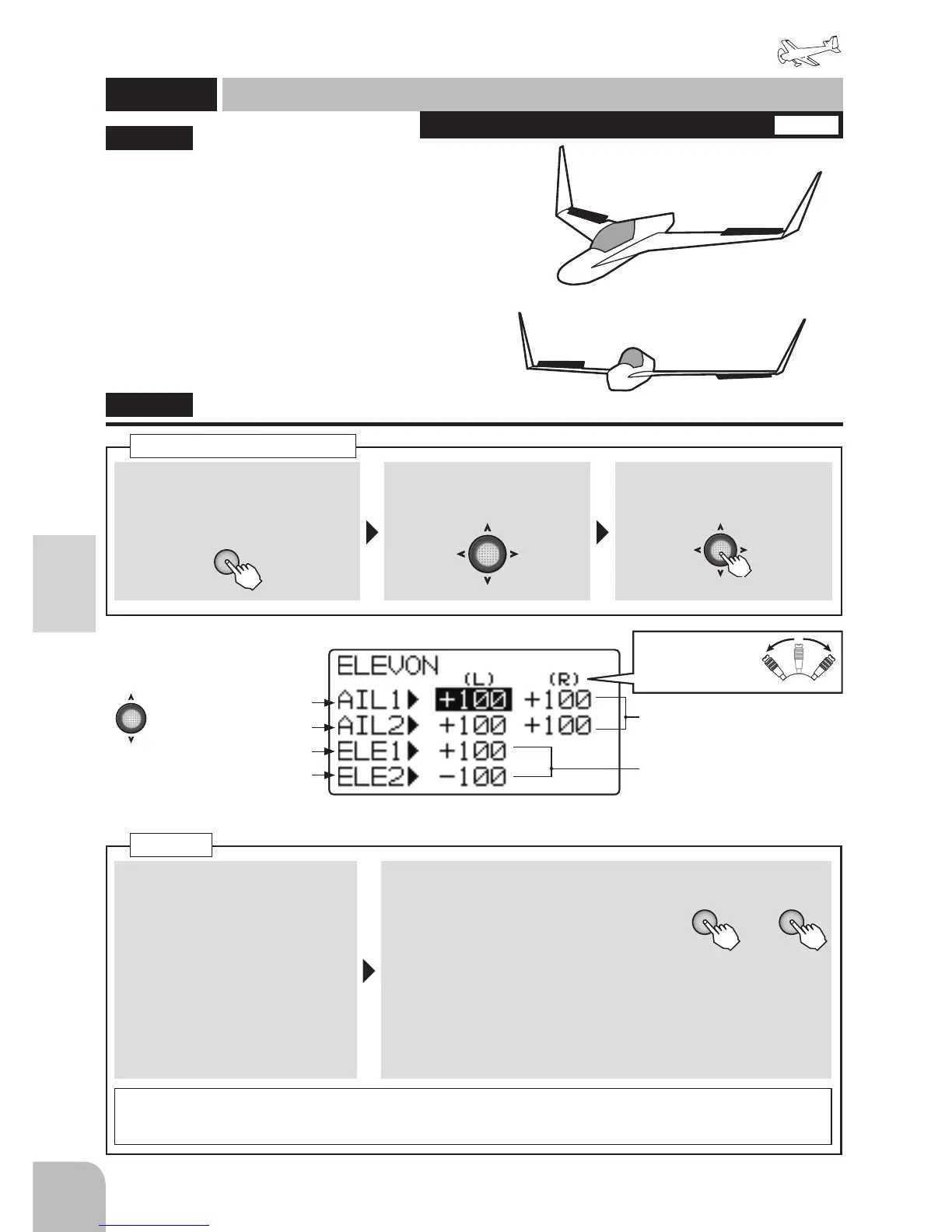

FUTABA 6k - Elevon

112
Airplane
Function
Method
① Call the menu screen from the
home screen by pressing the +
key for 1 second.
＋
② Select
from the menu with the
Jog key.
③ Open the setting screen by
pressing the Jog key.
（1 second）
Calling the setting screen
1AIL 2AIL1AIL1FLP 2AIL1FLP ELEVONWING TYPE
This mixing is used with delta wing, tailess, and
disk shaped airplanes that combine the aileron and
elevator functions.
Connect the CH1 servo to the left aileron and the
CH2 servo to the right aileron.
●The aileron and elevator travel can be adjusted
individually.
"ELEVON"
ELEVON
Elevon
(AIRPLANE)
Aileron1（CH1）rate
Aileron2（CH2）rate
Elevator2（CH1）rate
Elevator1（CH2）rate
（Aileron rate）
L：Aileron stick Left side rate
R：Aileron stick Right side rate
（Elevator rate）
● Select the setting item with
the Jog key.
■ Activating the function
① Select the "ELEVON" by WING
type (MDL TYP).
■ Rate set
＋ －
or
② Select the "RATE" item and then adjust
the mixing rate by pressing the + key or
– key.
Range：-120 ～ +120%
Default：+100%
（only ELE1 : -100%）
● When you want to return the set value to the initial value, press
the + key and – key simultaneously.However, polarity does not
return.
NOTE：We recommend that setting be performed while moving the stick and checking the amount of movement. If
the amount of movement is too large, elevator and aileron operation will be compounded and the servo travel range
will be exceeded and a dead band in which the servo will not operate may be created.
ELEVON
CH1
CH1
CH2
CH2
Pitch (Elevator operation)
Roll (Aileron operation)
Select the Left/
Right with the
aileron stick .
