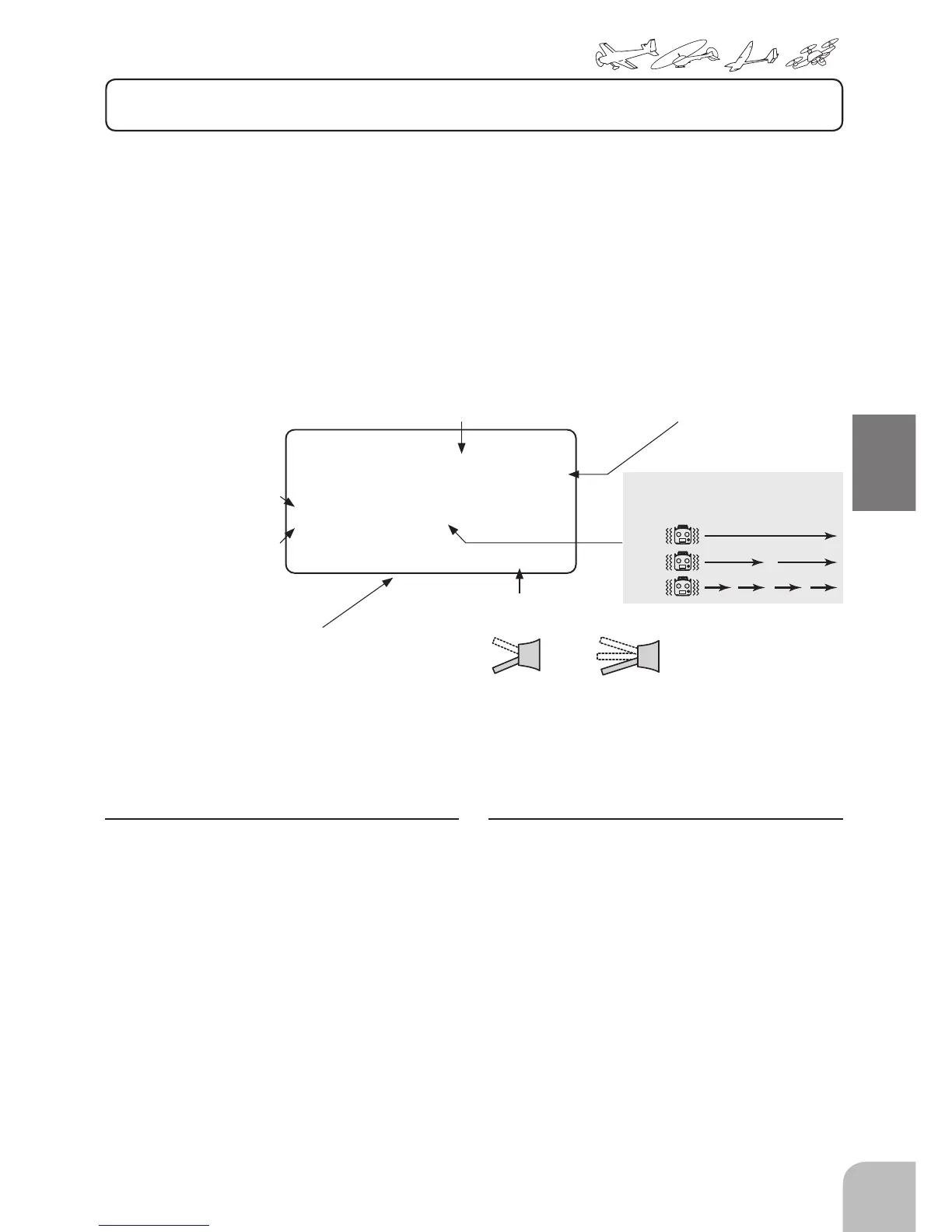

VARIO is a screen which displays / sets up the
variometer information from an optional altitude
sensor.
The variometer of the model which is ying can
be known.
If it becomes higher or lower than the setting an
alarm and/or vibration will ALARM you.
● Conversion of a display unit is performed by "TLM UNIT"
of"PARAMETER".
●Select [VARIO] in the TELEMETRY screen and access the
setup screen shown below by press the Jog key.
●"DN" indicates the
alarm will start when
the vario reaches
below your set value.
●"UP"indicates the alarm
will start when the
vario reaches above
your set value.
ALARM set : Rise side
1. Move the cursor to the UP:(ALARM) item.
2. Select the ACT mode by press the +-key.
3. Move the cursor to the UP:(LIMIT)[value]item.
4. Ajust the rate by press the +-key.
Initial value: +50(m/s)
Adjustment range: -150~+150(m/s)
(UP:(LIMIT)
≧
DN:(LIMIT))
*When the + - key simultaneous press, the rate is reset to the
initial value.
(To terminate the input and return to the
original state, touch the END key.)
ALARM set : Low side
1. Move the cursor to the DN:(ALARM) item.
2. Select the ACT mode by press the +-key.
3. Move the cursor to the UP:(LIMIT)[value]item.
4. Ajust the rate by press the +-key.
Initial value: -50(m/s)
Adjustment range: -150~+150(m/s)
(UP:(LIMIT)
≧
DN:(LIMIT))
*When the + - key simultaneous press, the rate is reset to the
initial value.
(To terminate the input and return to the
original state, touch the END key.)
*An altitude sensor must be installed in the aircraft.
●Variometer
VARIO : Display of SBS-01A (Option), and alarm setup
ON
OFF
ON
OFF
OFF
● Switch selection
TYPE 1
TYPE 2
TYPE 3
"VIB" type
If the following types are selected, the
transmitter will vibrate during the warning.
●You can hear the
Vario data through an
earphone or headset,
by Activating the Speech
function.
●The maximum and the minimum
when powering ON are shown.
● Maximum and minimum
date reset by
pressing the Jog key for 1 second.
