FUTABA 6k - Telemetry:altitude

84
Common function
●You can hear the
Altitude data through an
earphone or headset,
by Activating the Speech
function.
ALTITUDE
(ALARM) (VIB) (LIMIT)
UP▶INH ▶OFF ▶ +200
DN▶INH ▶OFF ▶ -50
REFERENCE▶ EXEC
SPEECH▶ INH SW▶ NULL
0 m
0 / 0MIN/MAX=

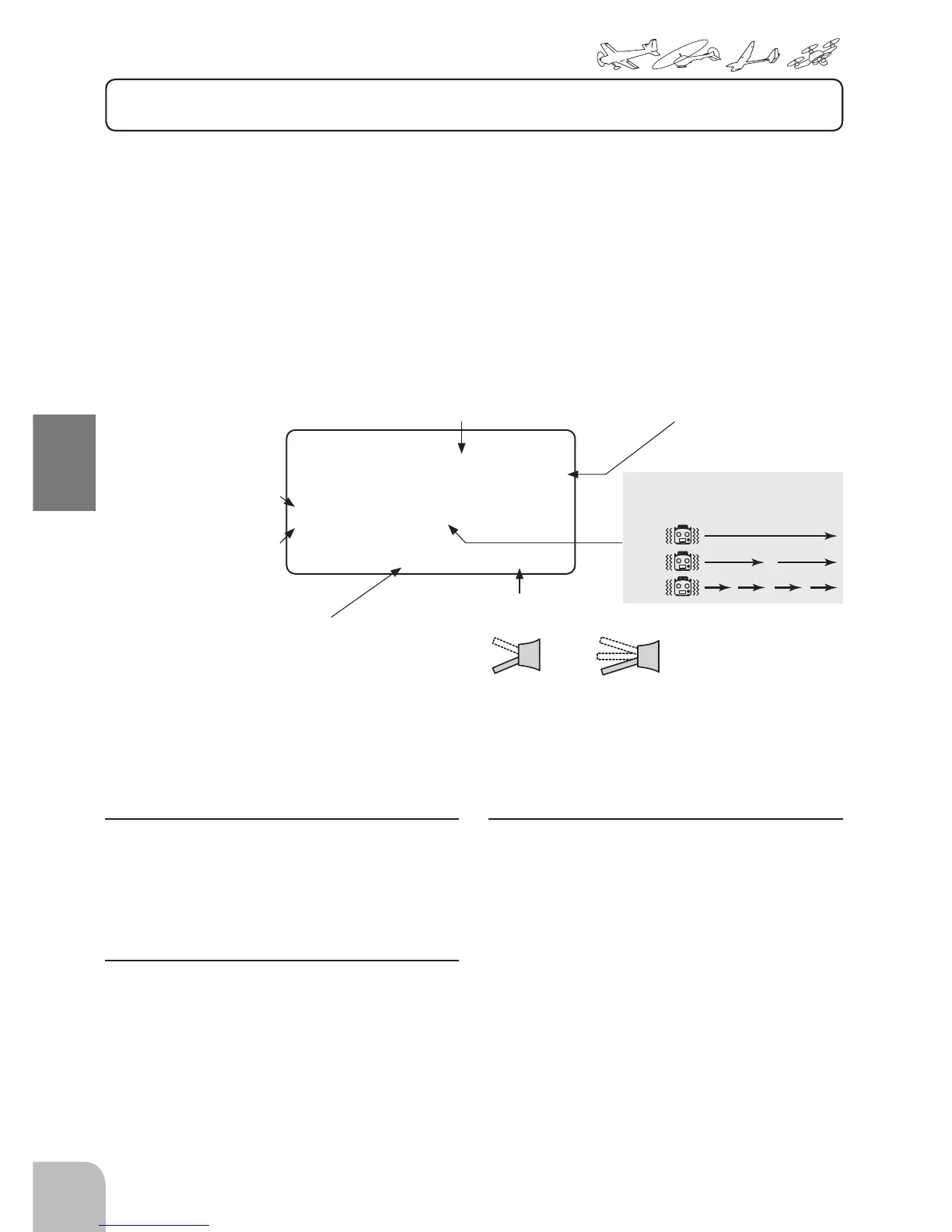

ALTITUDE is a screen which displays / sets up
the altitude information from an optional altitude
sensor. The altitude of the model which is flying
can be known. If it becomes higher (low) than
preset altitude, you can be told by alarm. To show
warning by vibration can also be chosen. Data
when a power supply is turned on shall be 0 m, and
it displays the altitude which changed from there.
Even if the altitude of an aireld is high, that shall
be 0 m and the altitude difference from an aireld
is displayed. This sensor calculates the altitude
from atmospheric pressure. Atmospheric pressure
will get lower as you go up in altitude, using
this the sensor will estimate the altitude. Please
understand that an exact advanced display cannot
be performed if atmospheric pressure changes in a
weather situation.
● Conversion of a display unit is performed by "TLM UNIT" of
"PARAMETER".
●Select [ALTITUDE] in the TELEMETRY screen and access
the setup screen shown below by press the Jog key.
●Altitude
●The maximum and the minimum
when powering ON are shown.
●"DN" indicates the
alarm will start when
the altitude reaches
below your set value.
●"UP"indicates the
alarm will start when
the altitude reaches
above your set value.
First, the set of a reference is required.
1. The model and transmitter to which the
altitude sensor was connected are turned on.
2. Move the cursor to the [REFERENCE] of "EXEC"
item.
3. Press the Jog key (1s or more press).
*Atmospheric pressure is changed according to the weather also
at the same aireld. You should preset before a ight.
ALARM set : High side
1. Move the cursor to the UP:(ALARM) item.
2. Select the ACT mode by press the +-key.
3. Move the cursor to the UP:(LIMIT)[value]item.
4. Ajust the rate by press the +-key.
Initial value: +200(m)
Adjustment range: -500~+5000(m)
(UP:(LIMIT)
≧
DN:(LIMIT))
*When the + - key simultaneous press, the rate is reset to the
initial value.
(To terminate the input and return to the
original state, touch the END key.)
ALARM set : Low side
1. Move the cursor to the DN:(ALARM) item.
2. Select the ACT mode by press the +-key.
3. Move the cursor to the UP:(LIMIT)[value]item .
4. Ajust the rate by press the +-key.
Initial value: -50(m)
Adjustment range: -500~+5000(m)
(UP:(LIMIT)
≧
DN:(LIMIT))
*When the + - key simultaneous press, the rate is reset to the
initial value.
(To terminate the input and return to the
original state, touch the END key.)
*An altitude sensor must be installed in the aircraft.
ALTITUDE : Display of SBS-01A (Option), and alarm setup
ON
2 Position 3 Position
OFF
ON
OFF
OFF
●Switch selection
TYPE 1
TYPE 2
TYPE 3
"VIB" type
If the following types are selected, the
transmitter will vibrate during the warning.
● Maximum and minimum date reset
by pressing the Jog key for 1 second.
