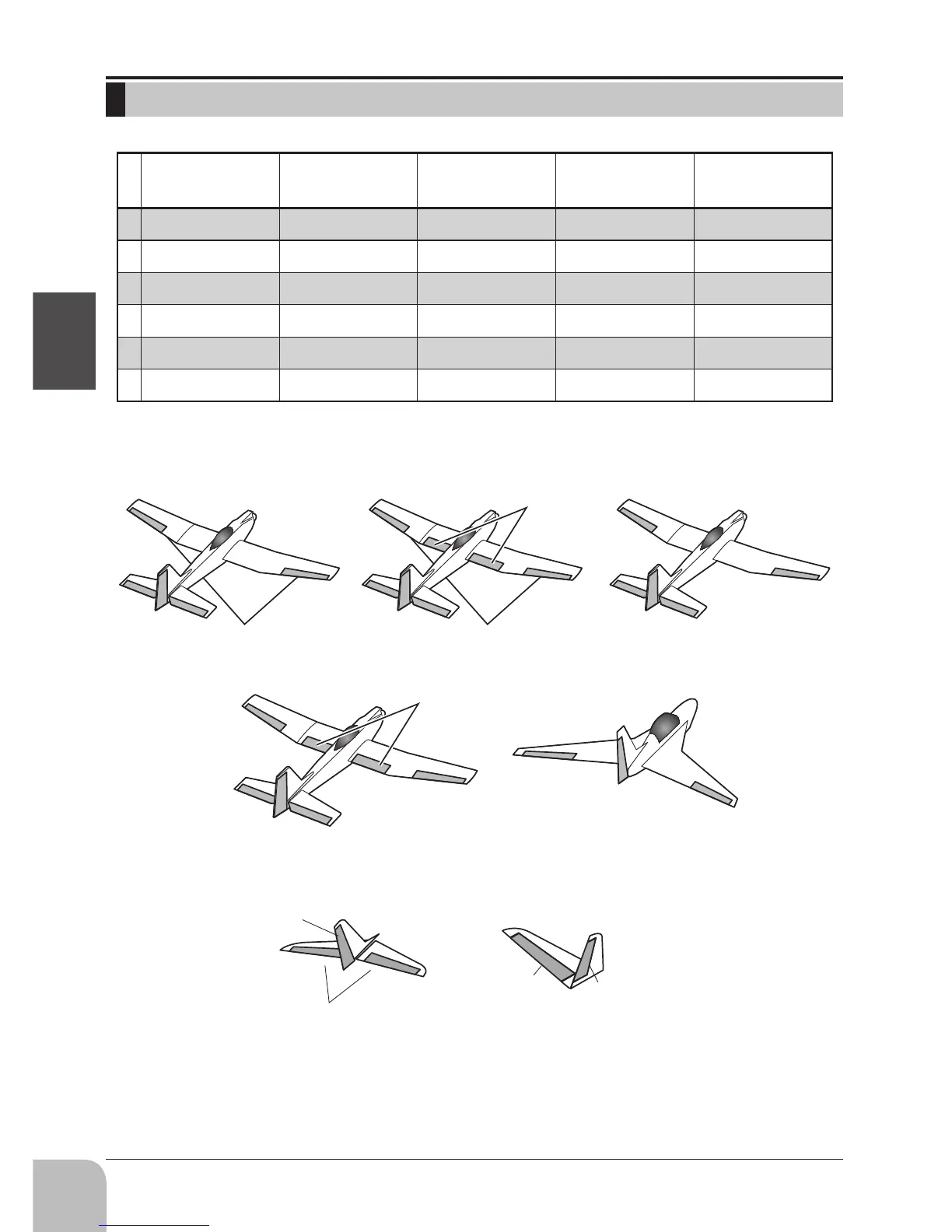

FUTABA 6k - Receiver and Servo Connections

Before use
32
Aircraft
CH
1AIL
1Aileron
1AIL1FLP
1Aileron
１Flap
2AIL
2Aileron
2AIL1FLP
2Aileron
１Flap
ELEVON
1 Aileron Aileron Aileron1 Aileron Elevon1
2 Elevator Elevator Elevator Elevator Elevon2
3 Throttle Throttle Throttle Throttle Throttle
4 Rudder Rudder Rudder Rudder Rudder
5 －－－ Flap －－－ Flap Flap
6 －－－ －－－ Aileron6 Aileron6 －－－
（WING TYPE）
（TAIL TYPE）
NORMAL Ｖ-TAIL
Elevator
+Rudder
(CH4)
Elevator
+Rudder
(CH2)
Elevator
(CH2)
Rudder
(CH4)
Aileron 1
(CH1)
Aileron 6
(CH6)
Aileron１Servo
(CH1)
Aileron１Servo
(CH1)
Flap１Servo
(CH5)
Flap１Servo
(CH5)
Elevon 1
(CH1)
Elevon 2
(CH2)
1AIL
2AIL+1FLP ELEVON
2AIL 1AIL+1FLP
RECEIVER AND SERVO CONNECTIONS
