FUTABA 6k - Page 33

Before use
33

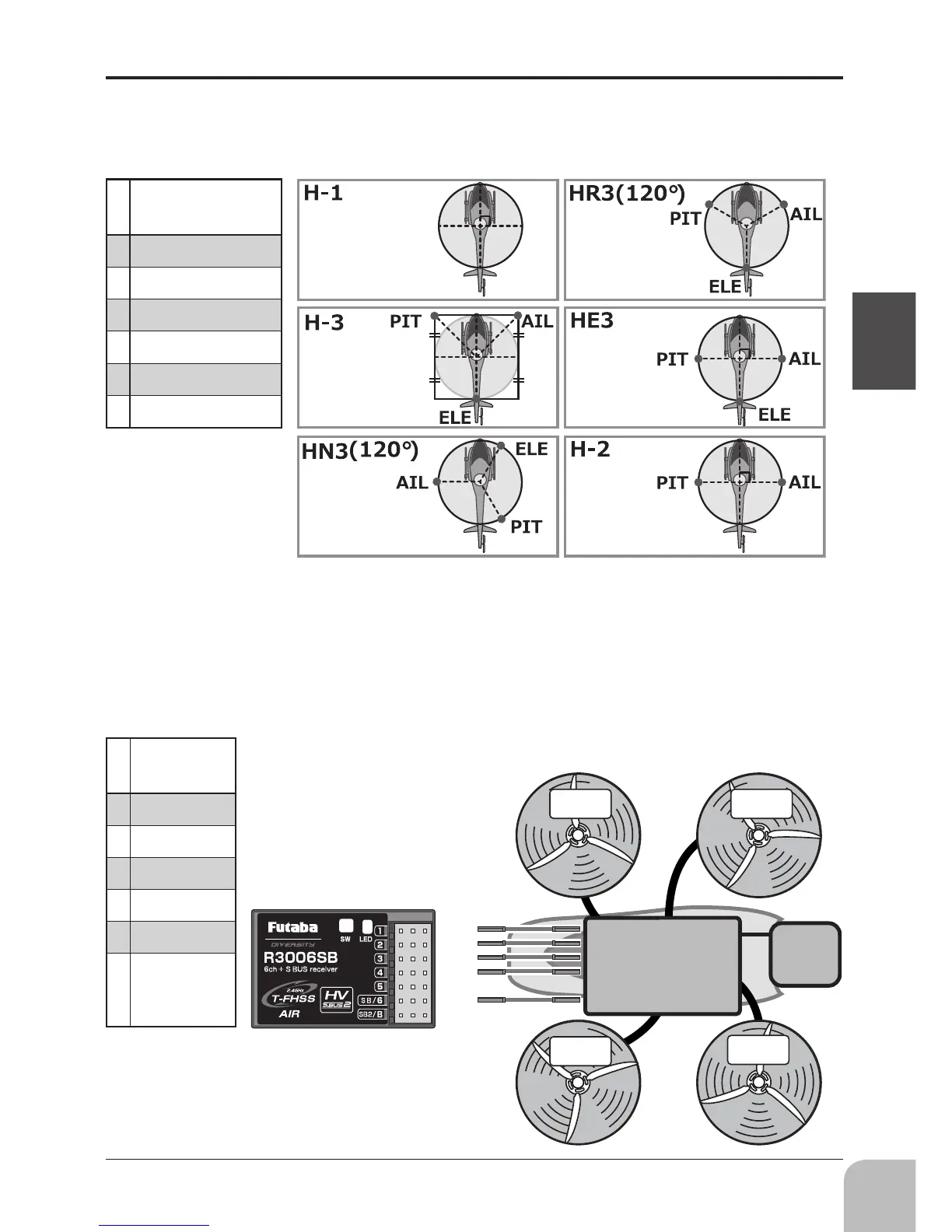

Helicopter
Multicopter
(Swash Type)
AIL
ELE
PIT
：Aileron Servo
：Elevator Servo
：Pitch Servo
(Normal linkage type)
H-1: each servo linked
to the swashplate
independently.
CH HELICOPTER
1 Aileron (cyclic roll)
2 Elevator (cyclic roll)
3 Throttle
4 Rudder
5 Gyro
6 Pitch (collective pitch)
CH1 ←
CH2 ←
CH3 ←
CH4 ←
CH6 ←
[ Connection example ]
CH1 AIL
CH2 ELE
CH3 THR
CH4 RUD
MODE
（e.g, U -port）
Multicopter
Controller
When using an accessary (e.g,
shutter of a camera), use 5CH.
Battery
Receiver
Motor
ESC
Motor
ESC
Motor
ESC
Motor
ESC
CH MULTI COPTER
1 Aileron
2 Elevator
3 Throttle
4 Rudder
5 AUX
6
Mode
for Multicopter
controller
