FUTABA 6k - Page 34

Before use
34

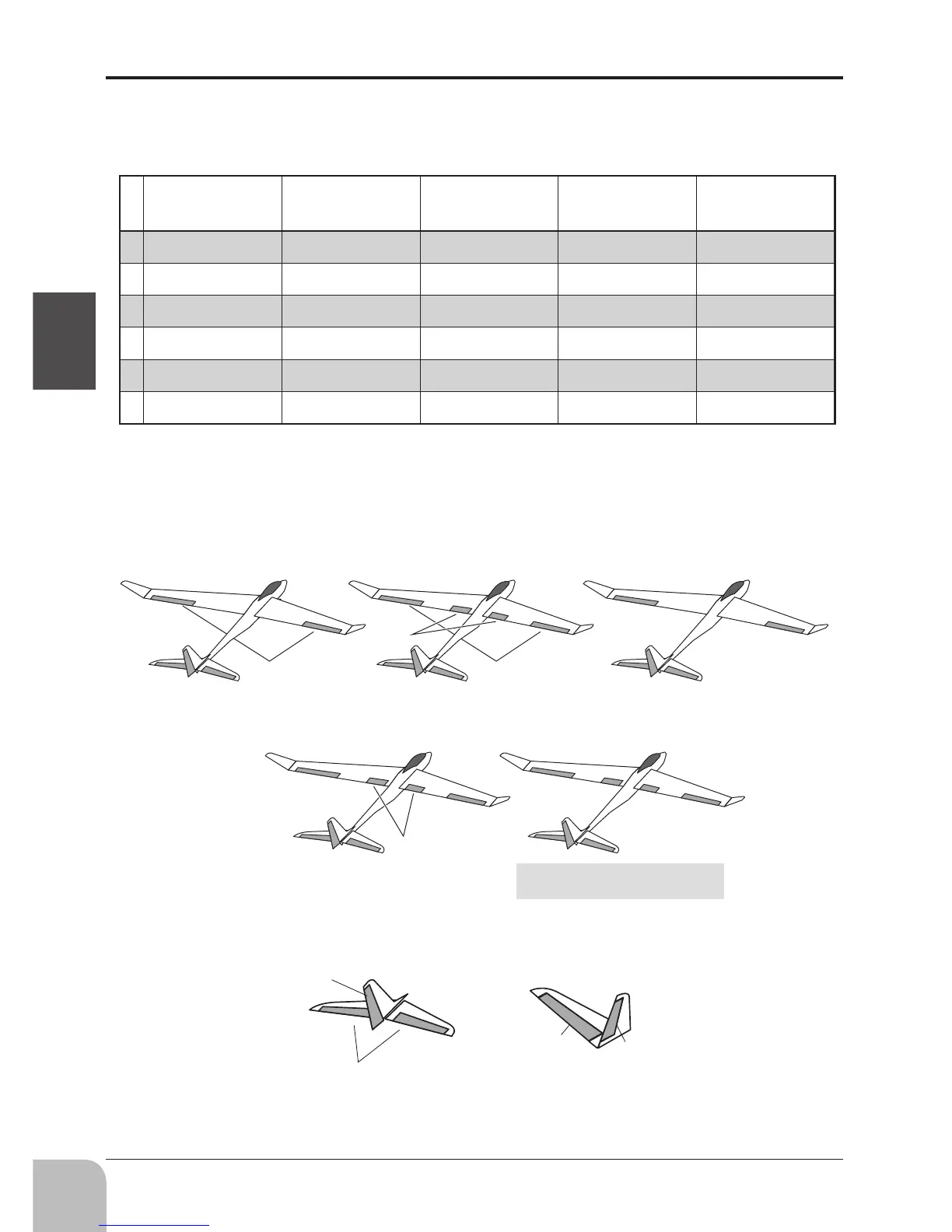

（WING TYPE）
（TAIL TYPE）
NORMAL Ｖ-TAIL
Elevator
+Rudder
(CH4)
Elevator
+Rudder
(CH2)
Elevator
(CH2)
Rudder
(CH4)
Aileron 1
(CH1)
Aileron 1
(CH1)
Aileron 1
(CH1)
Aileron 6
(CH6)
Aileron 6
(CH6)
Aileron 6
(CH6)
Aileron１Servo
(CH1)
Aileron１Servo
(CH1)
Flap１Servo
(CH5)
Flap１Servo
(CH5)
1AIL
2AIL+1FLP 2AIL+2FLP
2AIL
Flap 5
(CH5)
Flap 3
(CH3)
1AIL+1FLP
*2AIL+2FLP type can't be used for a
motor glider.
Glider
CH
1AIL
1Aileron
1A+1F
1Aileron
１Flap
2AIL
2Aileron
2A+1F
2Aileron
１Flap
2A+2F
2Aileron
2Flap
1 Aileron Aileron Aileron1 Aileron1 Aileron1
2 Elevator Elevator Elevator Elevator Elevator
3 Motor Motor Motor Motor Flap3
4 Rudder Rudder Rudder Rudder Rudder
5 －－－ Flap －－－ Flap Flap5
6 －－－ －－－ Aileron6 Aileron6 Aileron6
