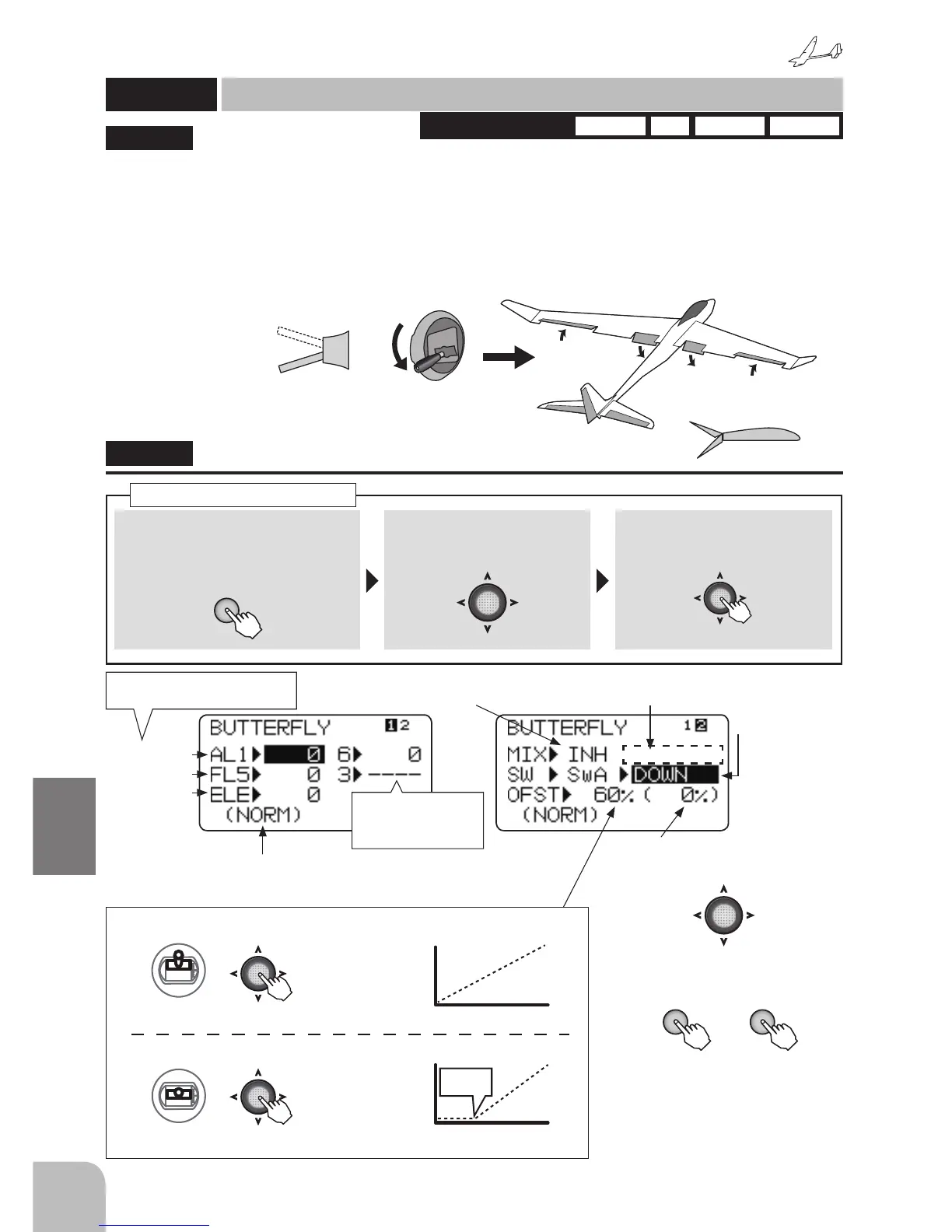

FUTABA 6k - Butterfly Mixing

144
Glider
Function
Method
① Call the menu screen from the
home screen by pressing the +
key for 1 second.
＋
② Select
from the menu with the
Jog key.
③ Open the setting screen by
pressing the Jog key.
（1 second）
Calling the setting screen
1AIL 2AIL1AIL1FLP 2AIL1FLP 2AIL2FLPWING TYPE
"BUTFLY"
BUTFLY
Buttery mixing
(GLIDER)
● Select the setting item
with the Jog key.
● The value is changed by
+ key or – key.
● Current THR stick position
0％ : Low 100％ : High
● Buttery : ACT/INH
● O󱐯set setting –Select "OFST" XX%.
Amount of movement setting
● Can be either
set to a switch
or when NULL
is controlled
by the THR
stick.
（Currently selected condition）
＋ －
Switch set to ON THR stick lowered
Resistance increased by raising
the elevators and lowering the
flaps
Fine tuning of an elevator
ON
OFF
High
THR stick operation
THR stick operation
Brake amount
MAX
Brake amount
MAX
OFST ▶ 100%
OFST ▶60%
Slow
High
Start from
60%
Slow
At THR stick high press the Jog key for 1 second
press the Jog key for 1 secondAt THR stick 60%
This function is utilized to quickly slow the
aircraft and reduce altitude by simultaneously
raising the left and right ailerons and lowering the
ap.
Butterfly (Crow) produces an extremely
efcient landing conguration by accomplishing
the following:
1. Slow the aircraft’s velocity.
2. Provide washout at the wing tips to reduce the
tendency to tip stall.
3. Create more lift toward the center of the wing
allowing it to y at a slower speed
● Mixing during flight can be turned ON/OFF by
setting a switch.
● The point at which the butterfly operation
reference point can be offset.
● The differential rate can be adjusted.
●
When MIX is set to ACT, the amount of MIX(s)
according to stick operation is displayed.
●
When offset is set below a center, the
mixing of THR stick operates by the high
side.
● Elevator
● Aileron
● Flap
● It can't be set.
＜ It's caused by the
wing type. ＞
