R3006SB
CH MODE
The R3006SB receiver is a very versatile unit. It has 6 PWM outputs and S.BUS2 outputs. Additionally
the SB/6 outputs can be changed from channels PWM 6 channel to S.BUS.

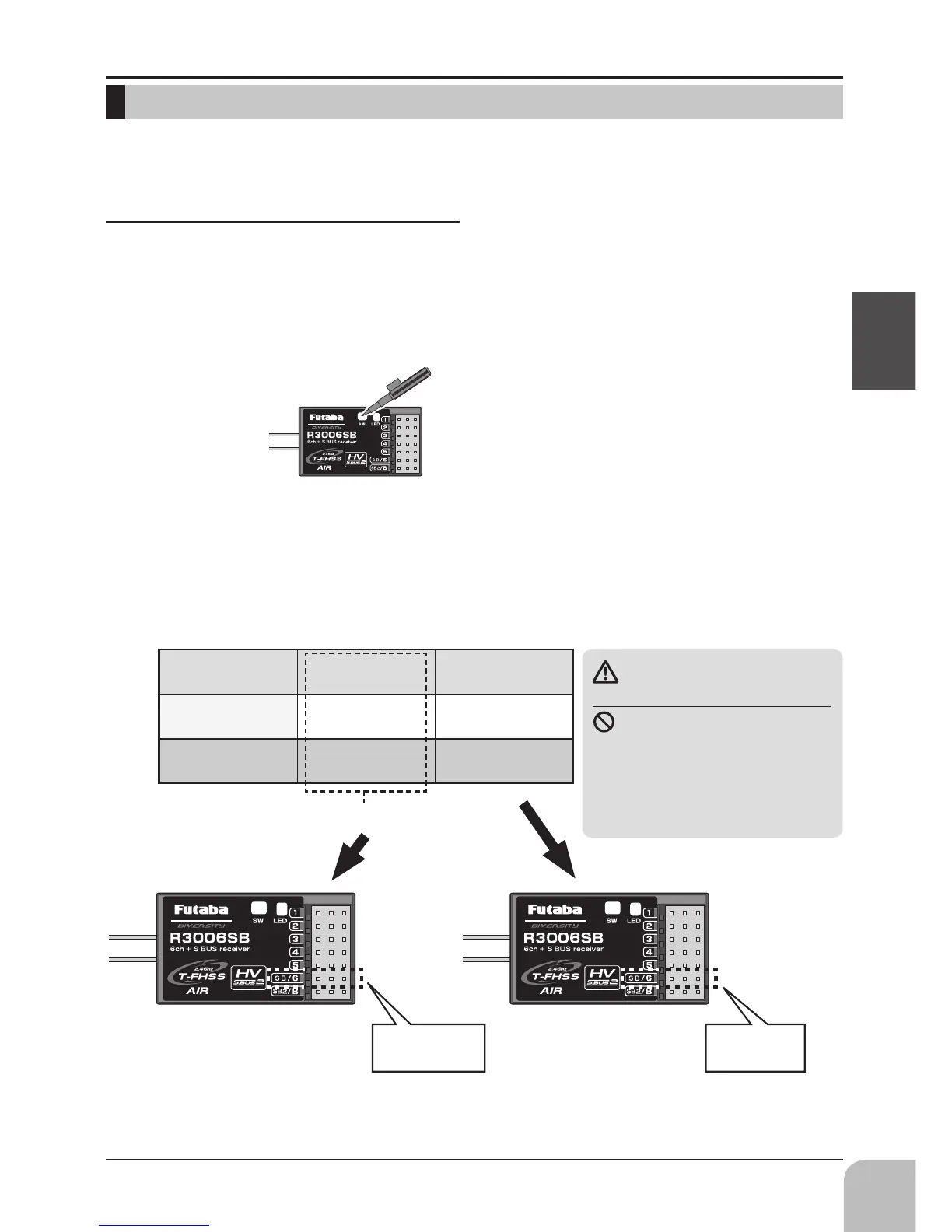

How to change the R3006SB Channel mode
(S.BUS
⇔
6CH )
The R3006SB is capable of changing its channel
allocations as described in the table below.
1 Turn on the receiver. (At this moment, the
transmitter should be off.) Then, LED blinks
RED in about 3 seconds. Next, wait until it
becomes solid RED.
2 Press and hold the Mode switch more than 5
seconds.
3 Release the button when the LED blinks RED
and GREEN simultaneously.
4 The receiver is now in the "Operation CH Set"
mode. At this moment, the LED indicates
current set status through ashing a pattern
that corresponds to the CH mode.
Mode A Mode B
6/SB 6CH S.BUS
Red LED blink 1 time 2 time
R3006SB CH Mode table
Default CH mode
*Cannot exit this CH setting mode before the operation mode is
xed.
**See the below table that shows correspondence between "CH
mode" and way of ashing LED.
***Default CH mode is "Mode A (6CH)".
5 By pressing the Mode switch, the operation
CH is switched sequentially as " Mode A"
"Mode B" "Mode A"....
6 The operation mode will be set by pressing
the Mode switch more than 2 seconds at the
desired CH mode.
7 Release the button when the LED blinks
RED and GREEN simultaneously. Then, the
operation CH is xed.
6 After confirming the operation CH mode is
changed, turn off and back on the receiver
power.
*The “Operation CH Set” mode cannot be changed during the
receiver communicates to the transmitter.
PWM 6ch
S.BUS
WARNING
S.BUS2 connectors
Don't connect servo for
conventional system to S.BUS
port.
*Digital servo for conventional system→
It does not operate.
*Analog servo → It may cause abnormal
heat, re and burning.
