44

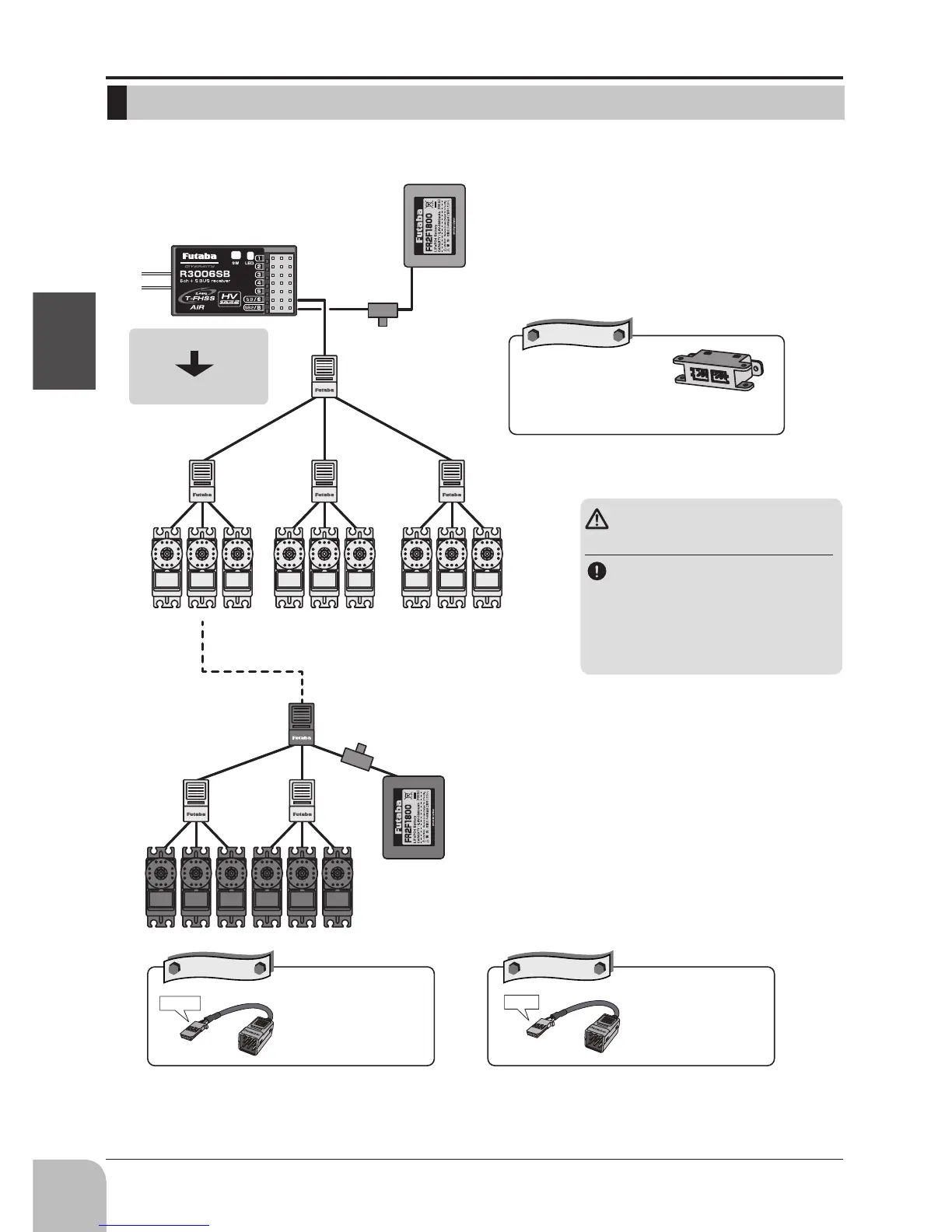

S.BUS WIRING EXAMPLE
Battery
Battery
Switch
Switch
HUB
HUB
HUB
HUB
HUB
HUB
HUB
（Another power supply）
HUB
S.BUS Servo
S.BUS Servo
Receiver
●S.BUS Servo
Since the channel number is
memorized by the S.BUS itself,
any connector can be used.
●When separate power supply used
When a large number of servos are used or
when high current servos are used, the servos
can be driven by a separate power supply by
using a separate Power Supply 3-way Hub.
●
Terminal box
Four connectors can be inserted
Three connectors
can be inserted.
Used when using
a separate power
supply battery.
SB/6
Port
Orange
Green
CH MODE
MODEＢ(S.BUS)
Optional Parts
Optional PartsOptional Parts
WARNING
Power supply
Please make sure that you use a
battery that can deliver enough
capacity for the number and
kind of servos used. Alkaline
batteries cannot be used.
To Next Page
