TELEMETRY SYSTEM
The R3006SB receiver features bi-directional communication with a T-FHSS Air Futaba
transmitter using the S.BUS2 port. Using the S.BUS2 port an impressive array of telemetry
sensors may be utilized. It also includes both standard PWM output ports and S.BUS output
ports.
*Telemetry is available only in the T-FHSS Air mode.
*The telemetry function requires the corresponding receiver (R3006SB).
*The T6K will enter and keep the ID number of the R3006SB that it is linked to.
*When you use two or more R3006SB, set telemetry mode to INH.
T6K
●Telemetry sensor (sold separately)
Your aircraft's data can be checked in the
transmitter by connecting various telemetry
sensors to the S.BUS2 connector of the
receiver.
●Slot Number
Servos are classified by channel, but sensors
are classified by “slot” . Since the initial slot
number of the T6K is preset at each sensor,
the sensors can be used as is by connecting
them. There are 1
~
31 slots.

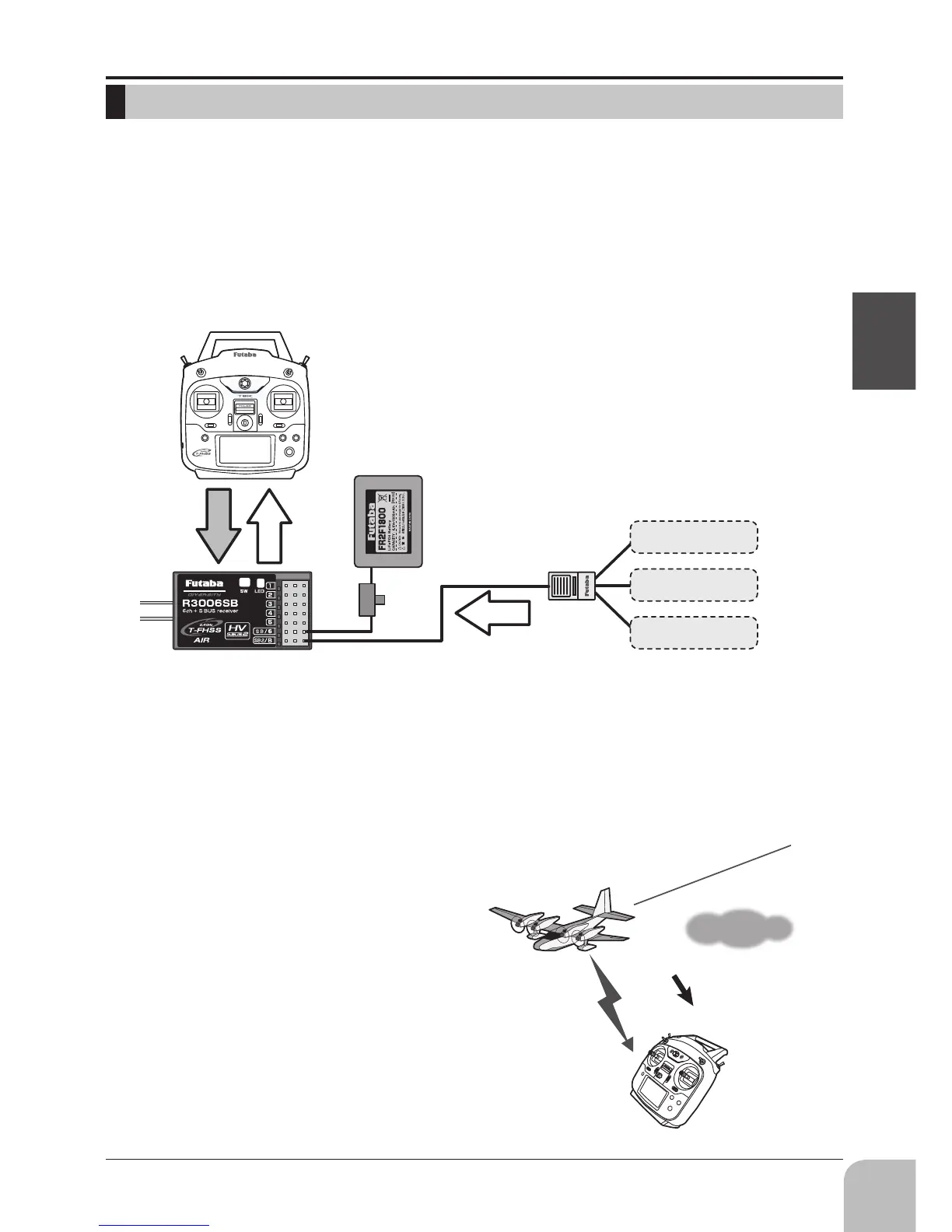

S.BUS2
Port(SB2/B)
Battery voltage is
displayed at the transmitter.
Switch
Info
Info
Signal
Temperature
Sensor
Slot 1
Slot 2
Slot 3 ～ 5
HUB
RPM
Sensor
Altitude
Sensor
●Receiver Voltage
●Altitude
●Engine Temperature
●Propeller R.R.M
Airplane in the sky
Displayed at the transmitter
Receiver
Transmitter
