1.3 Connectors descriptions

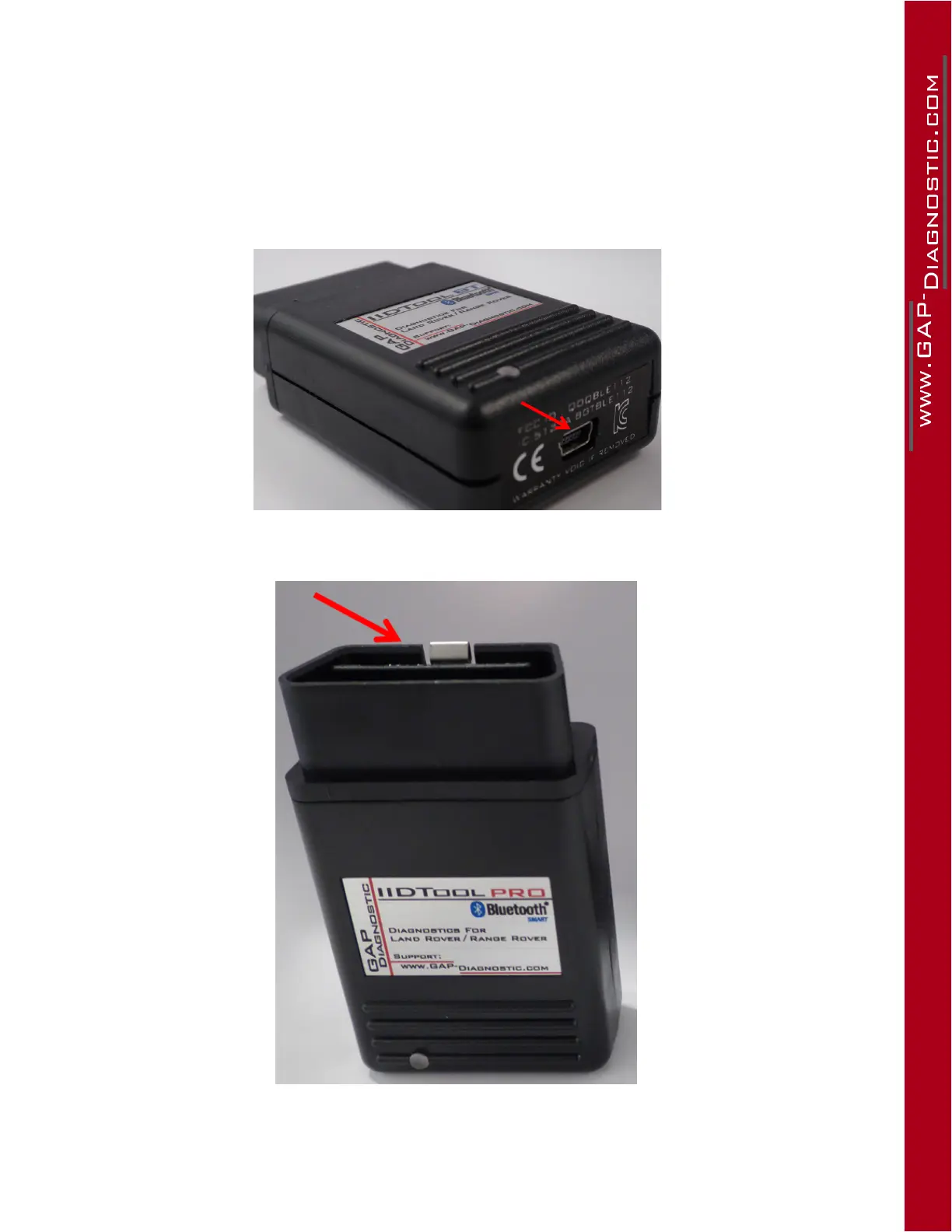

Figure 1. Micro USB socket for USB cable used to connect the IIDTool to a computer
Figure 2. OBDII connector allowing connection of the IIDTool to a vehicle
