IIDTool
GAP Diagnostic 2019-07-15 All Rights Reserved
User Manual : Version 33, Firmware V3.0
5- MMM rmware version
To verify which version is currently in the MMM ECU, simply proceed with the following:
• Selecthomescreen.
• Pressandholdthelocationindicated(number1)for5secondsandrelease.Immediatelypress
the Nav button (number 2) and hold it until the keypad appears.

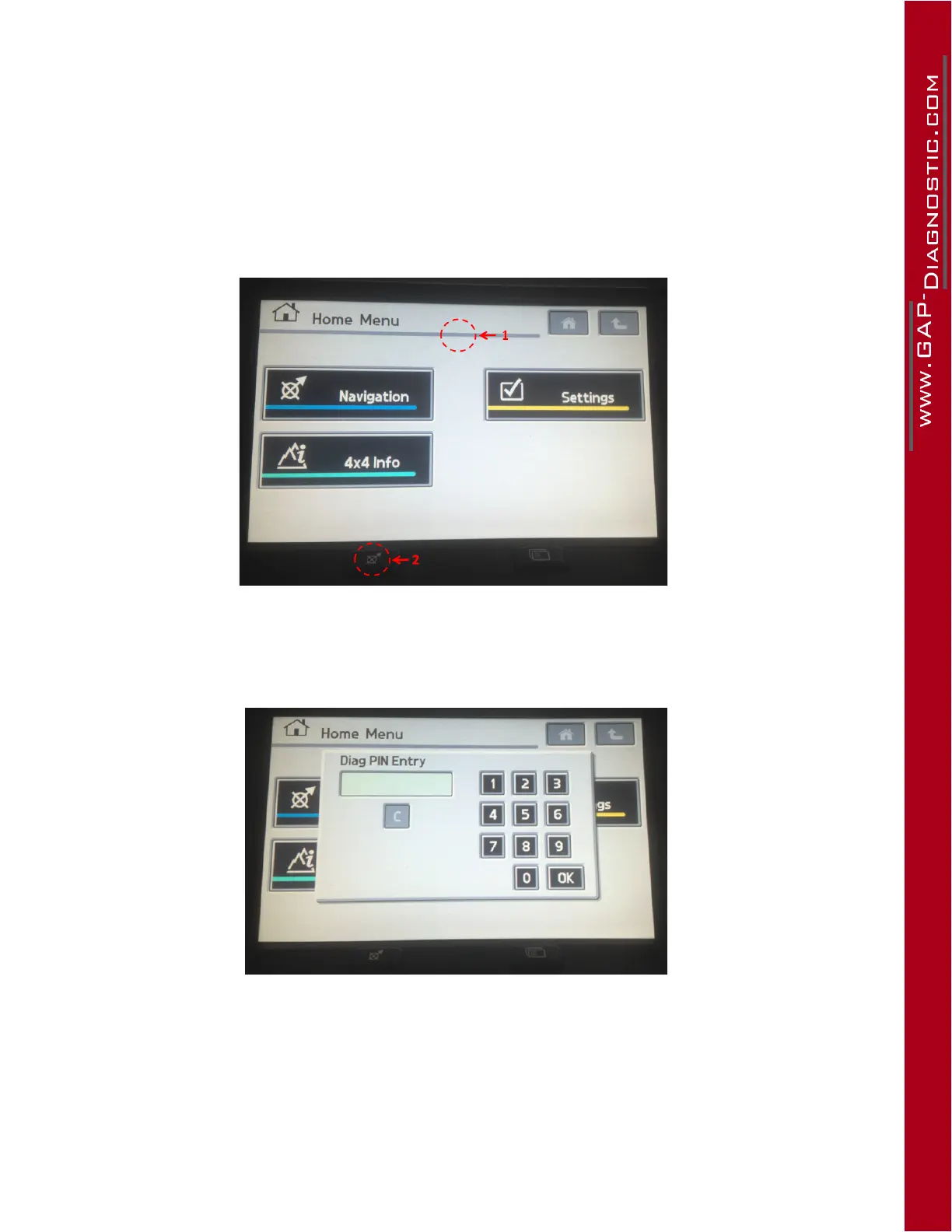

Figure 111. Diagnostic mode, Navigation
• ReleasetheNavbuttonandenterpincode7-5-3,pressOK
Figure 112. Enter pin code for diagnostic mode, Navigation
