7-8 745 Transformer Management Relay GE Power Management

7.2 BLOCK DIAGRAMS 7 SCHEME LOGIC

7.2.2 OVERCURRENT SCHEME LOGIC

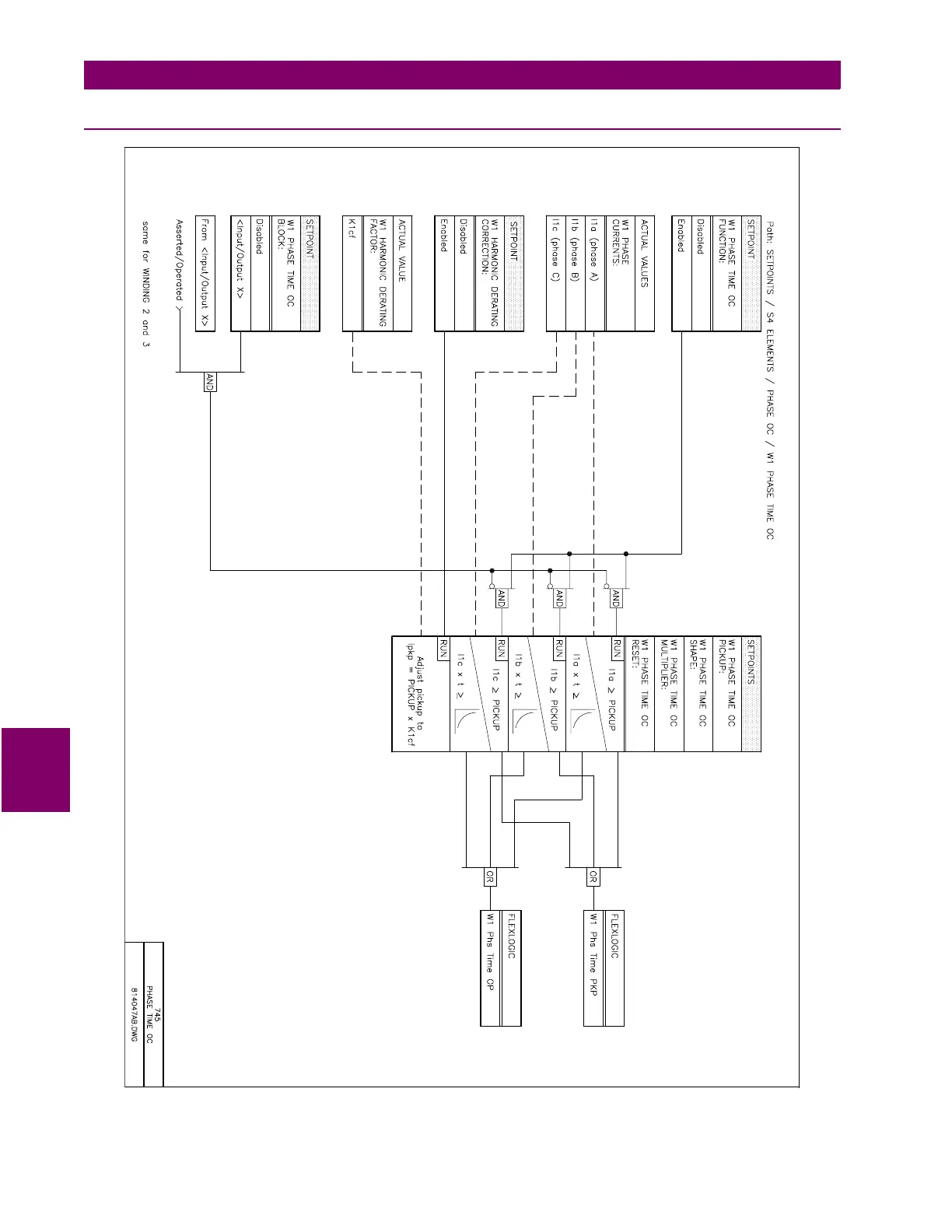

Figure 7–7: PHASE TIME O/C SCHEME LOGIC
