GE 745 TRANSFORMER MANAGEMENT RELAY User Manual

GE Power Management 745 Transformer Management Relay 9-7
9 745 PC SOFTWARE 9.3 USING 745PC
9
9.3 USING 745PC 9.3.1 SAVING SETPOINTS TO A FILE
Saving setpoints to a file on the local PC is accomplished as follows:
1. If the local PC is not connected to a 745 relay, select the
File > Properties
menu item. The dialog box
shown below appears, allowing for the configuration of the 745PC program for the options ordered for a
particular 745 relay. 745PC needs to know the correct options when creating a setpoint file so that set-
points that are not available for that particular relay are not downloaded.

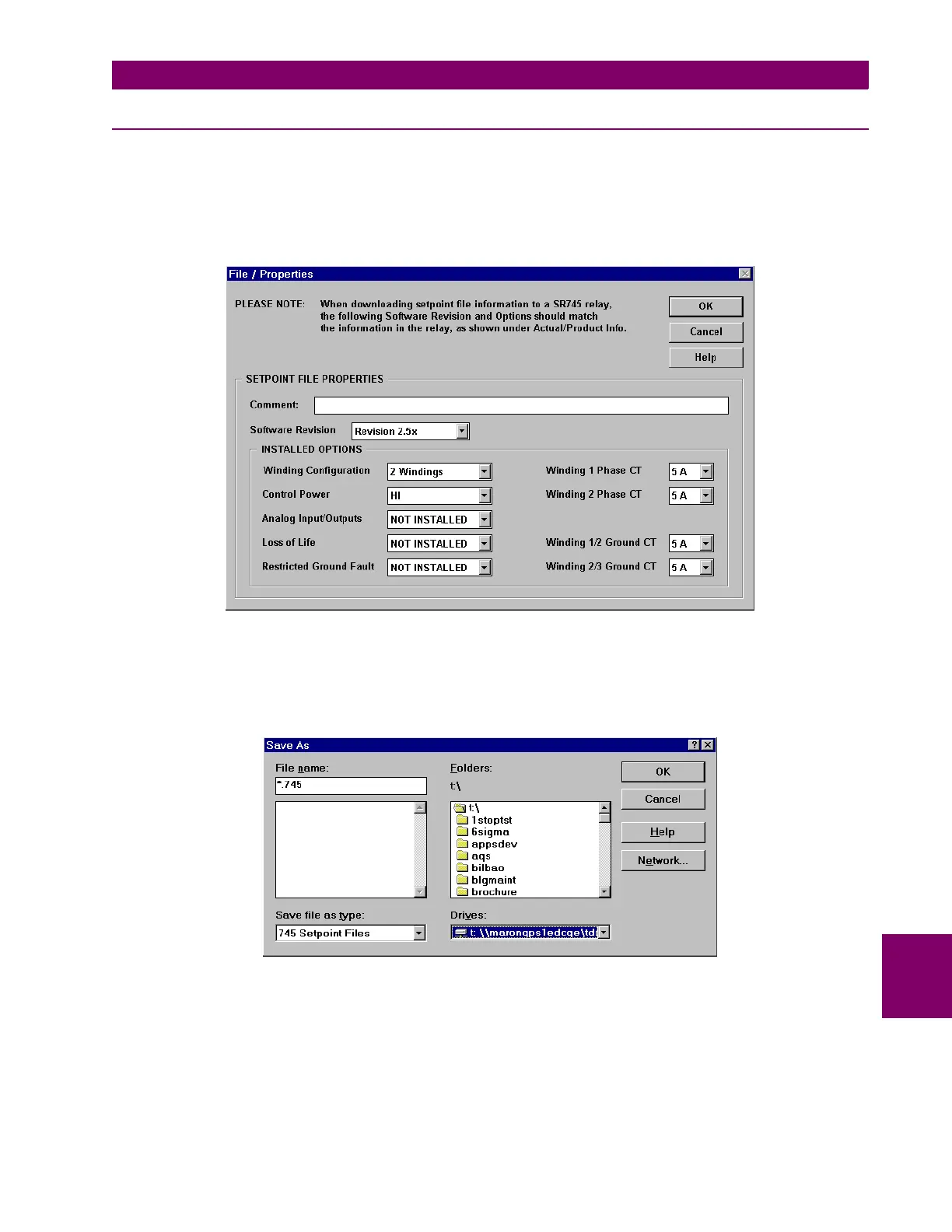

Figure 9–8: FILE/PROPERTIES DIALOG BOX
2. Select the installed options from the drop down menus. After configuration, select the
File > Save As
menu item. This launches the following dialog box. Enter the file name under which the file will be saved in
the
File Name
box or click on any of the file names displayed. All 745 setpoint files should have the exten-
sion
.745
(for example,
xfrmr01.745
). Click
OK
to proceed.
Figure 9–9: SAVING SETPOINTS
3. The program reads all the relay setpoint values and stores them to the selected file.
