GE 745 TRANSFORMER MANAGEMENT RELAY User Manual

GE Power Management 745 Transformer Management Relay 9-1
9 745 PC SOFTWARE 9.1 OVERVIEW
9
9 745 PC SOFTWARE 9.1 OVERVIEW 9.1.1 DESCRIPTION
The 745PC program, provided with every 745 relay, allows easy access to all relay setpoints and actual values
via a personal computer running Windows
®
3.1/95 or higher and one RS232 port (COM1 or COM2). 745PC
allows the user to:
• Program/modify setpoints
• Load/save setpoint files from/to disk
• Read actual values
• Monitor status
• Plot/print/view trending graphs of selected actual values
• Perform waveform capture (oscillography)
• Download and “playback” waveforms (Simulation Mode)
• View the Event Recorder
• View the harmonic content of any phase current in real time
• Get help on any topic

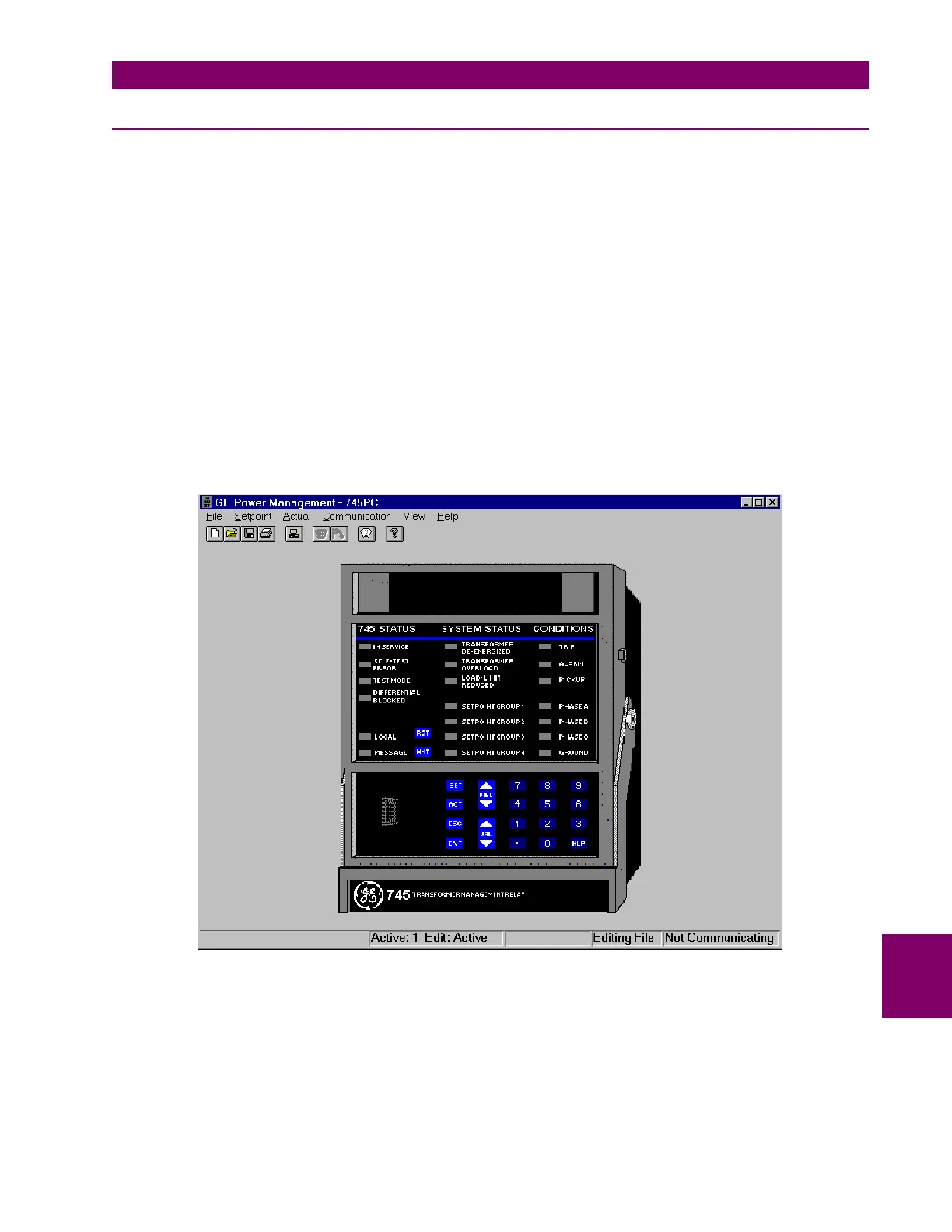

Figure 9–1: 745PC PROGRAM STARTUP WINDOW
The 745PC program can be used “stand-alone”, without a 745 relay, to create or edit 745 setpoint files.
