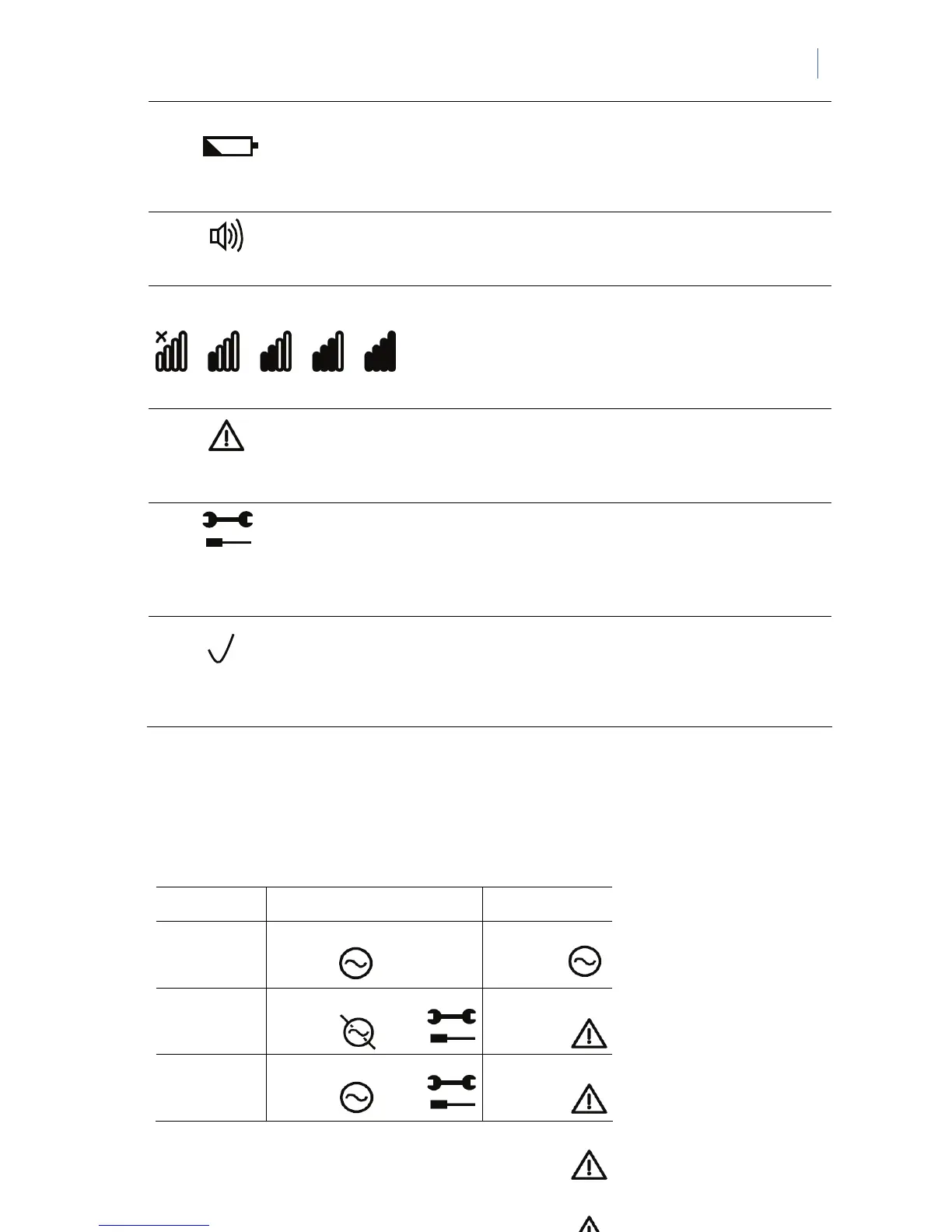

8
Battery low
This icon is only available on the wireless keypad and flashing when the
keypad battery is low.
9
Alarm
This icon flashes in case of an alarm condition.
10
This icon is only available on the wireless keypad and indicates RF-link
field strength. The one most to the left indicates absence of RF, the one
most to the right indicates full signal strength. It will flash as long as the
keypad is not registered yet.
11
Trouble
This icon indicates a system trouble condition, for example, fire trouble,
day zone trouble or AC power loss. You can display the trouble list by
pressing the # (hash) button on the keypad (see
Appendix 4: Service
messages on page
264.)
12
Service
This icon is ON in case the system needs to be serviced. It can indicate
many conditions, for example, ground fault, phone fault, fail to
communicate, box tamper, loss of system time, and similar problems. You
can display the service message list by pressing the # (hash) button on the
keypad (see Appendix 4: Service messages on page 264.)
13
Ready to arm
If the system is OK to arm, the V-sign icon is displayed. If it is NOT OK to
arm, the V-sign disappears. In case a force armable zone is open, it will
show a flashing V-sign (see
Table 15 Default zone types, and Force
Armable menu option description in the glossary.)
Note: In case of power supply problems, the following icons are displayed:
Power
Normal
mode
Screensaver
mode
NO faults
ON
ON
AC fault
Battery OK
ON
ON
Blinking
AC OK
Battery fault
Blinking
ON
Blinking
