NetworX Version 3 Installation Manual
29

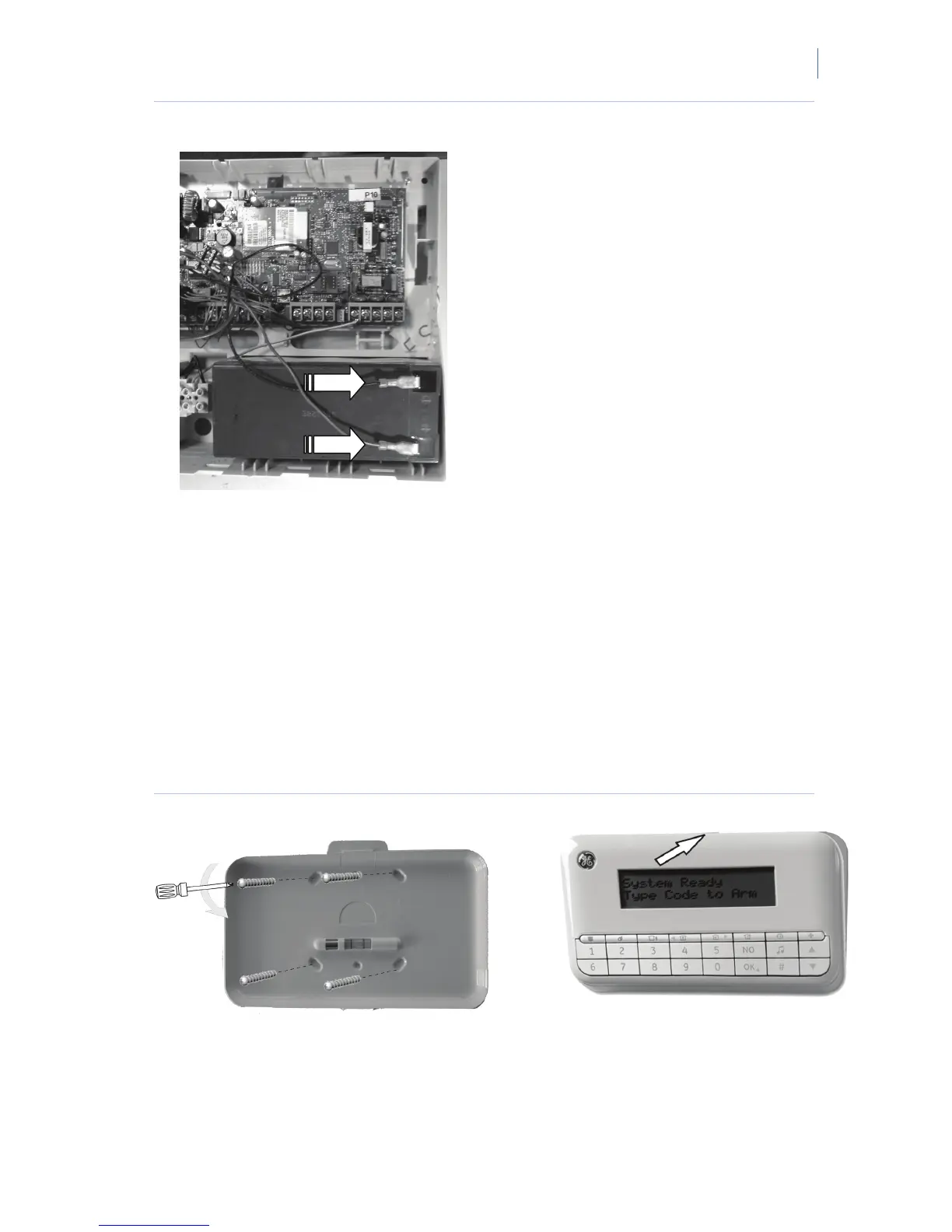

Figure 7. Connecting the battery to the panel.
9. Close the housing.
Installing the keypad
Mounting the wireless keypad
Depending on the configuration, the wireless keypad can be mounted on the wall in a cradle or used
as a portable device.
To install a wireless keypad:
Figure 8. Mounting the wireless keypad.
1. Ensure that the keypad is mounted on a flat, solid, vertical surface so that the base will
not flex or warp when the mounting screws/bolts are tightened.
! "
