NetworX Version 3 Installation Manual
28
When expanding the small system, switching to the large polycarbonate box may be required, since
more modules cannot physically fit the smaller housing.

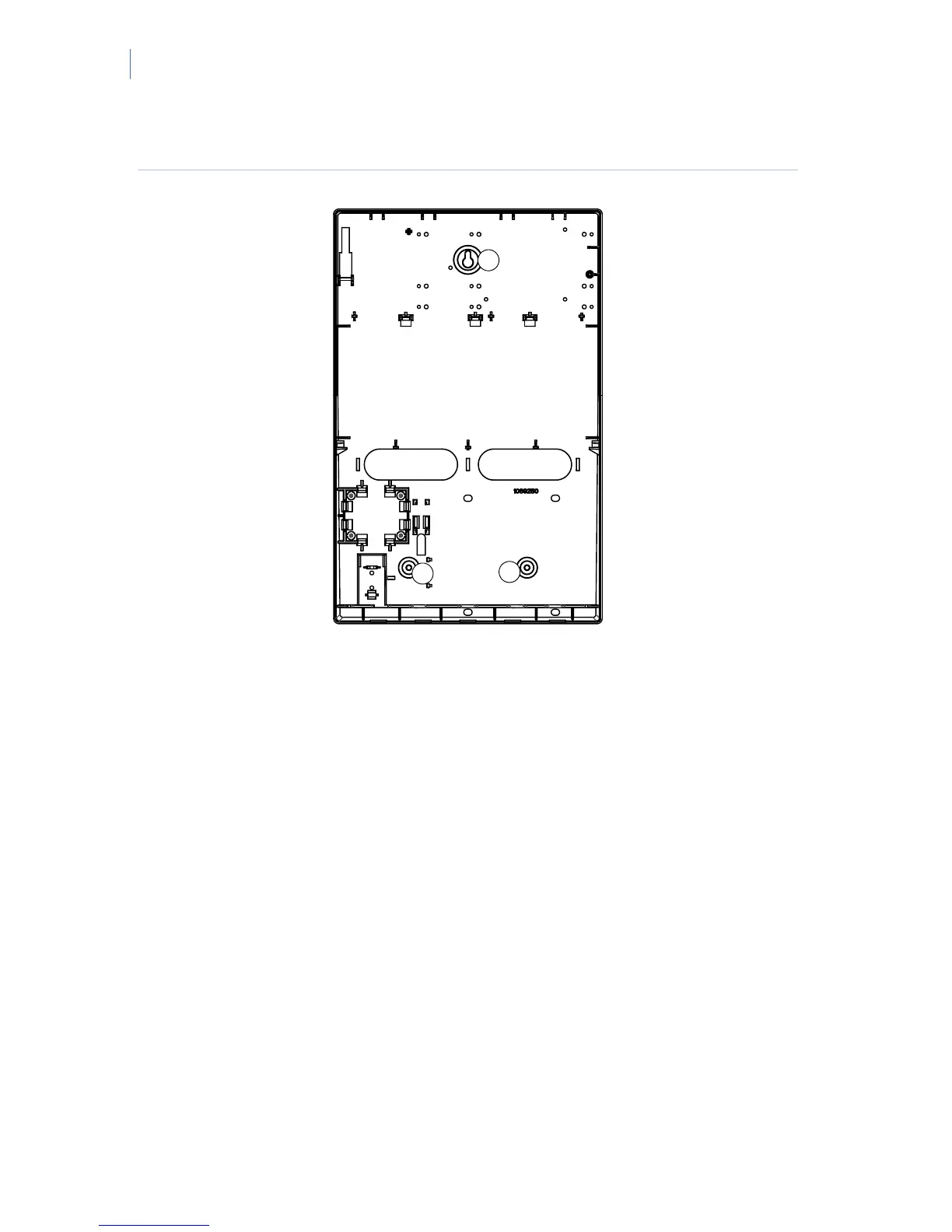

Figure 6. Largel polycarbonate housing
1
1
1
Mount the panel housing on the wall using mounting holes shown as items
1 in Figures 5 and 6.
To install the panel:
1. Unscrew the holding screw in the polycarbonate housing.
2. Open the box.
3. Lift off the lid of the box.
If you are using an additional module:
4. Connect the NetworX bus cables to the module.
5. Connect the NetworX bus cables from the additional module to the panel. Use one of the
internal bus connectors for this purpose (see
Figure 1, position 2, 3 and M).
6. Clip-in the TCP/IP module inside the housing cover.
7. Connect the Ethernet cable to the TCP/IP module (see instructions in the NX-590E
module manual).
8. Connect the battery leads to the battery and power up the panel.
