D IRECTION GA091568, R EVISION 5 VIVID E9 S ERVICE M ANUAL
Chapter 4 - General procedures and Functional checks 4 - 21
4-2-7-3 Connectivity — Additional Outputs
1.) Select Config/F2 to log on as ADM. (Default password: ulsadm).
For a detailed description, see: 4-2-5 "Logging on to VIVID E9 as ‘ADM’" on page 4-15.
2.) Select Connectivity > Additional Outputs.
3.) Select Button P1 in the Button pull-down menu.
4.) Record the settings for Button P1.
5.) Select Button P2 in the Button pull-down menu.
6.) Record the settings for Button P2.
7.) Select Button Record in the Button pull-down menu.
8.) Record the settings for Button Record.

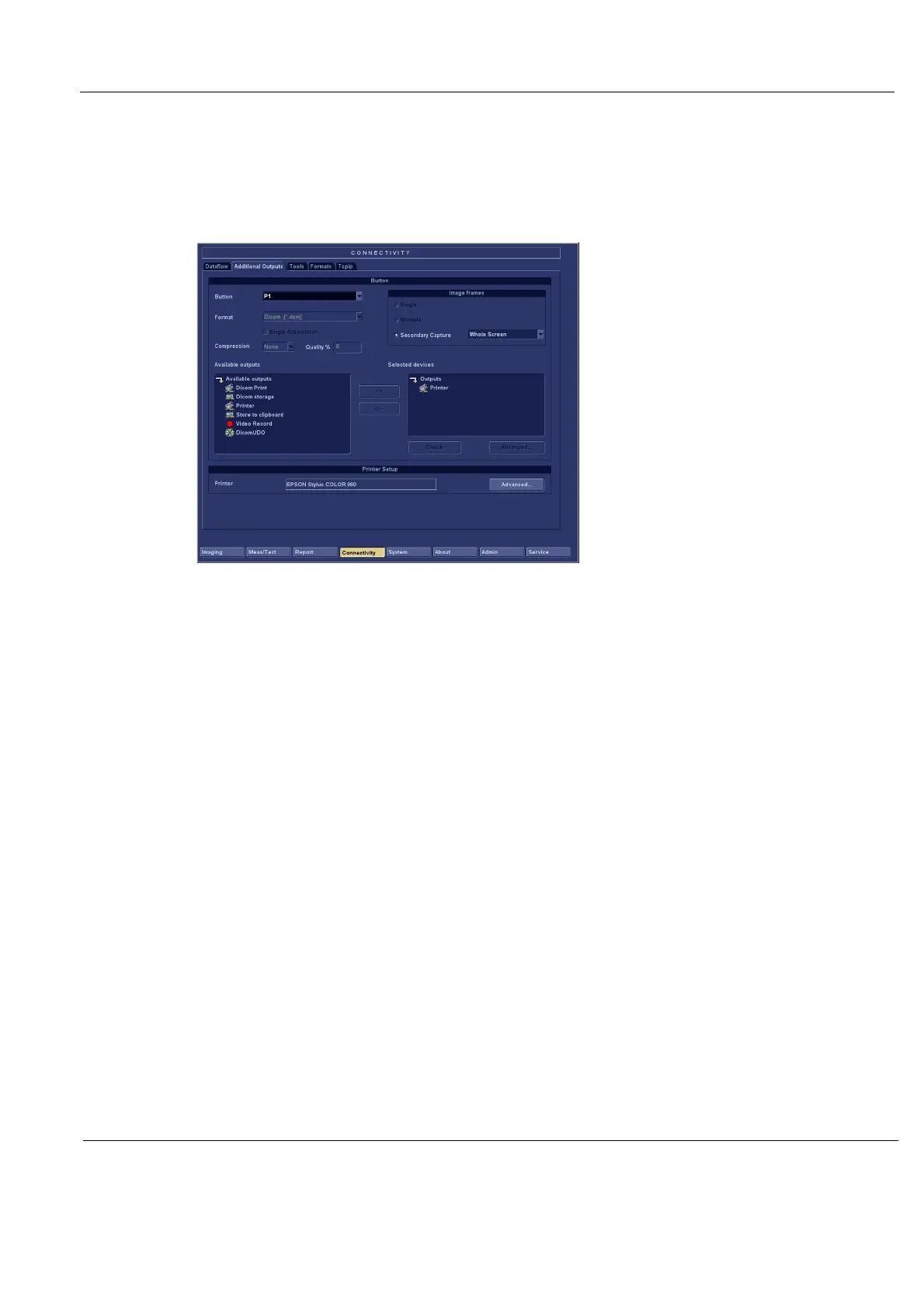

Figure 4-20 Additional Outputs
