8 - 86 Section 8-6 - Top Console Parts Replacement
8-6-4-2 Disconnect the cables from the Bulkhead board
Follow these steps to disconnect the cables from the Bulkhead board:
1.) Disconnect the Power/USB PLUG from the Bulkhead board.
2.) Bend the HDMI Connector Lock upwards, then disconnect the HDMI plug.
8-6-4-3 Remove the LCD Arm assembly
Follow these steps to remove the LCD Arm assembly:
1.) Slide the LCD Mount Lock Handle into unlocked position.
2.) Move the LCD Arm from side to side when at the same time pulling upwards, until you can lift LCD
Arm assembly away.

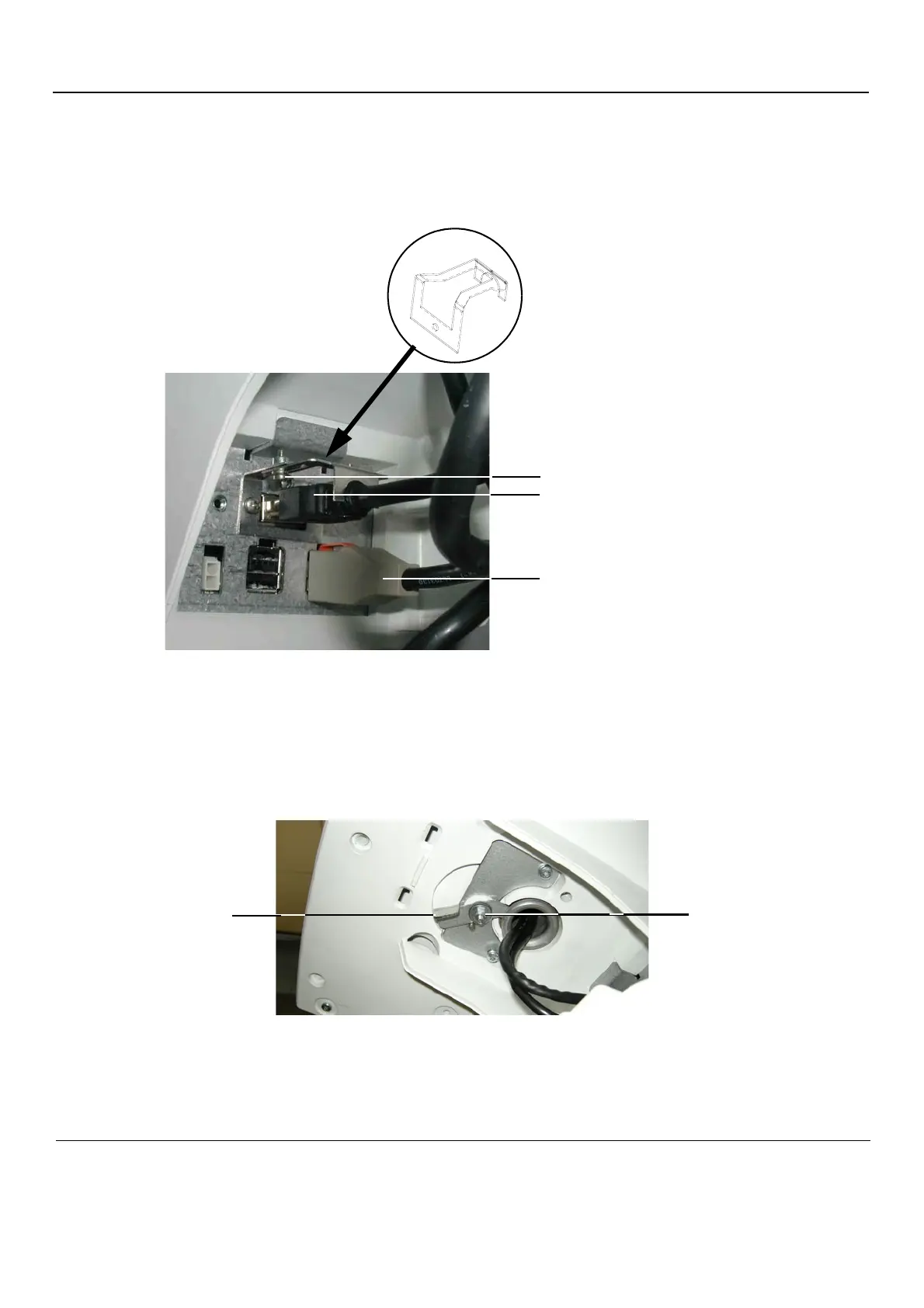

Figure 8-92 LCD Cables at Bulkhead
Figure 8-93 LCD Mount Lock Handle
POWER/USB PLUG
HDMI PLUG
SCREW
BRACKET, LOCK HDMI, introduced
after the picture was taken.
DO NOT ADJUST THIS NUT! LCD MOUNT LOCK HANDLE
