GE H
EALTHCARE
D
IRECTION
GA091568, R
EVISION
5 VIVID E9 S
ERVICE
M
ANUAL
Chapter 8 - Replacement procedures 8 - 87
8-6-4-4 Install the LCD Arm assembly
Follow these steps to install the LCD Arm Assembly:
1.) Carefully install the LCD Arm assembly into position, first feeding the LCD Arm cables down through
the console opening.
2.) Push the LCD Mount Lock Handle into locked position.

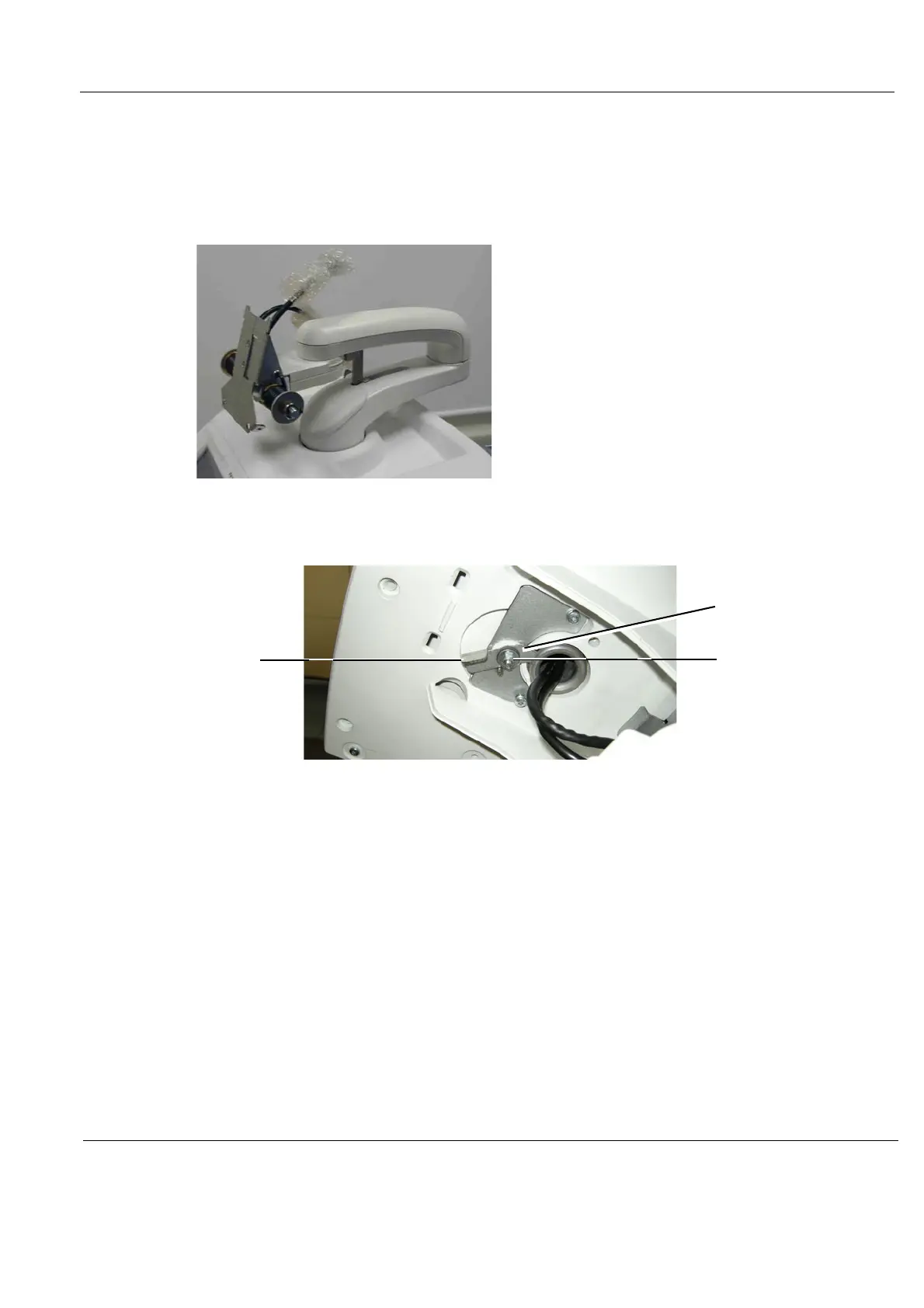

Figure 8-94 LCD Arm installed onto the UI Frame Upper (Arm for 17” screen illustrated)
Figure 8-95 LCD Mount Lock Handle
DO NOT ADJUST THIS NUT!
LOCKED POSITION
LCD MOUNT LOCK HANDLE
