GE DRAFT VOLUSON™ P8/VOLUSON™P6
DIRECTION 5775469, R
EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL
Chapter 3 - Setup Instructions 3-77
3-12-2-8 Available WLAN Channels
The available WLAN channels show availability of wireless connect point that the system can talk to.
Each channel supports a finite number of users and has limited signal strength. This may effect the
ability to connect, the throughput and the connection dropping out.
1.) Press the “Utilities” key on the control console.
2.) On the right side of the screen select Connectivity and then click the Device Setup tab.
3.) Click the WLAN Configuration button; see Section Figure 3-64 on page 3-71
4.) The Wireless Network Configuration tool with available Wireless Networks appear.
5.) Select the Properties tab .
6.) Click Available Channels.

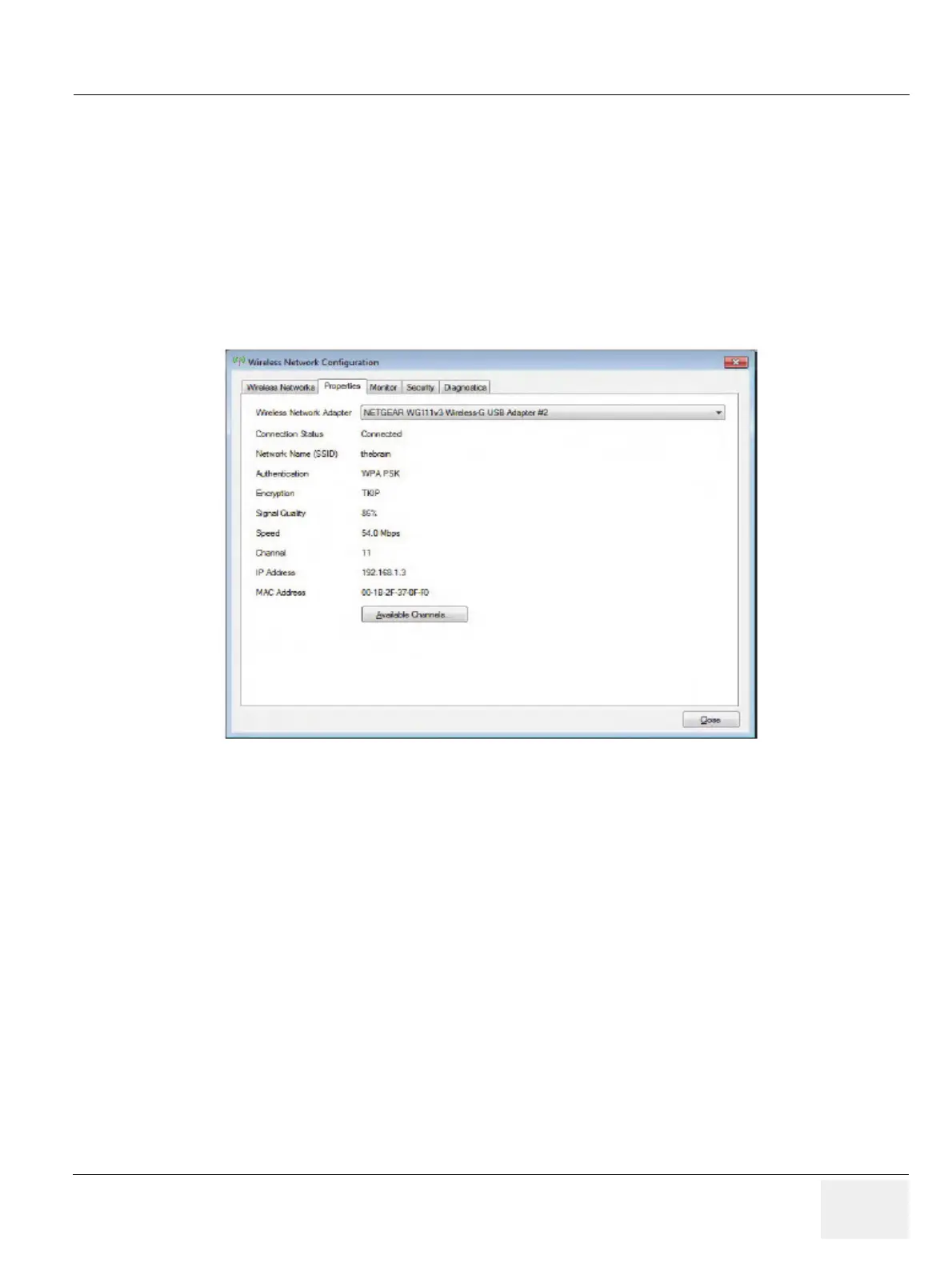

Figure 3-68 Properties
