GE DRAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

Chapter 1 - Introduction 1-17

1-5-2 System Manufacturer

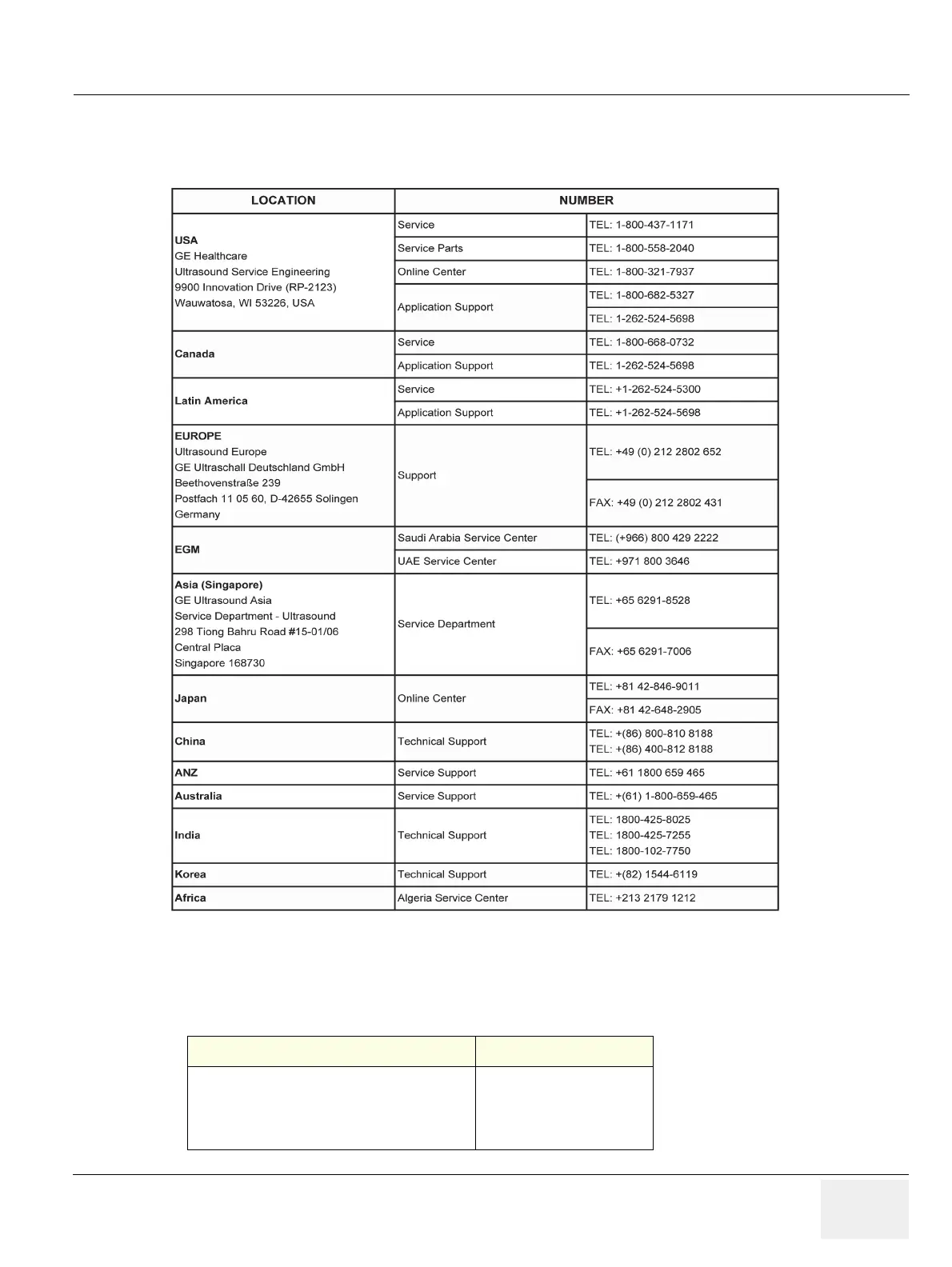

Figure 1-5 Phone Numbers for Customer Assistance

Table 1-6 System Manufacturer

Manufacturer FAX Number

GE Ultrasound Korea, Ltd.

9, Sunhwan-ro 214beon-gil, Jungwon-gu,

Seongnam-si, Gyeonggi-do,

Korea

+82 (0) 31-740-6436
