GE DRAFT VOLUSON™ P8/VOLUSON™P6
DIRECTION 5775469, R
EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL
Chapter 5 - Components and Functions (Theory) 5-35
5-6-2 OPIO layout

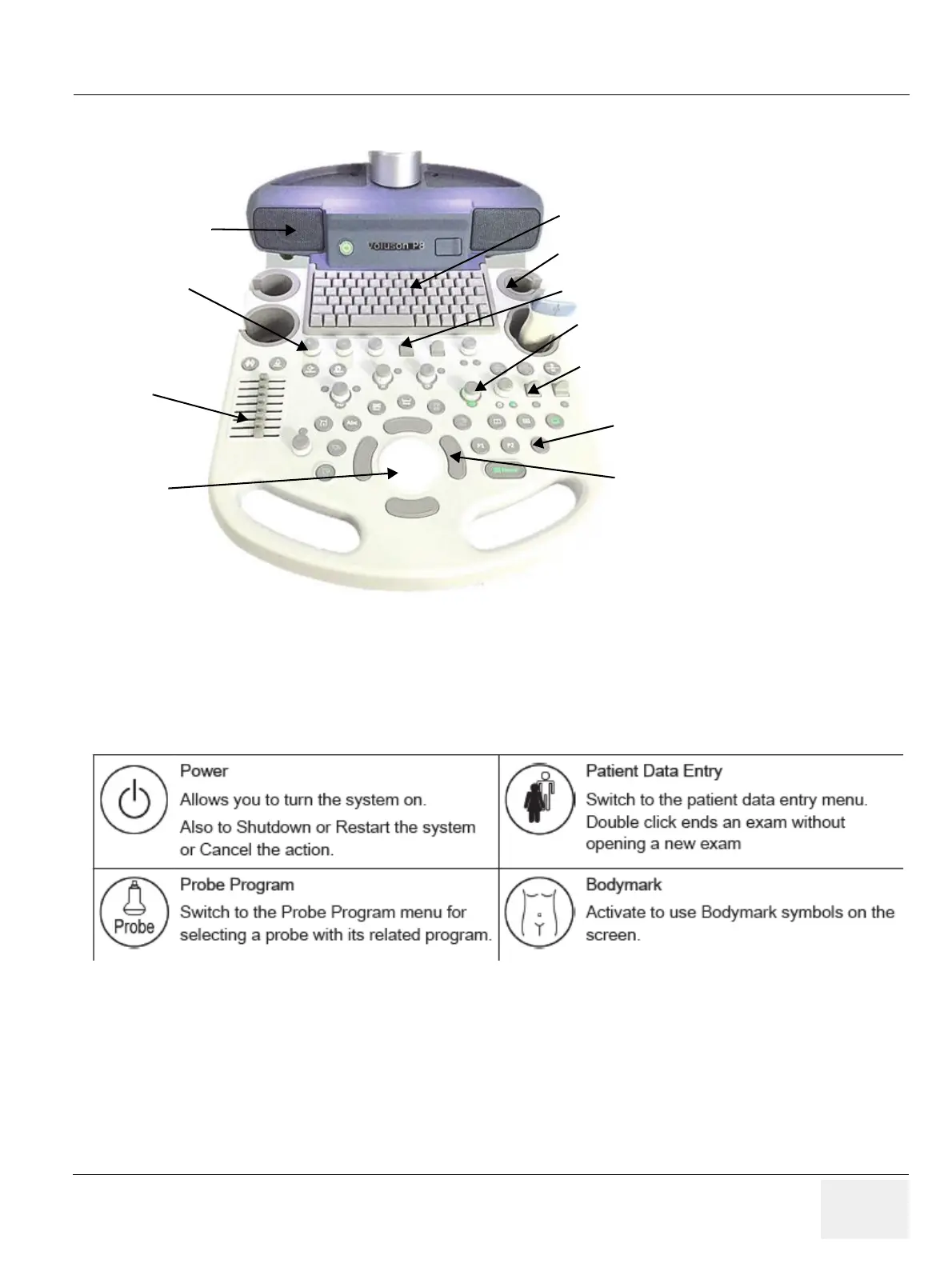

Figure 5-14 Voluson™ P8/Voluson™P6 - OPIO Layout
5-6-3 Button Description
1
2
3
4
9
7
5
10
11
6
8
1. Loudspeaker position
2. Menu window digipot
controls
3. TGC Slider controls
4. Trackball
5. Alphanumeric Keyboard
6. Probeholders
7. Menu window flip-
switch controls
8. Mode keys
(digipot controls)
9. Toggle switch controls
10. Hard keys
11. Trackball buttons
