GE Voluson P6 - Section 8-22 Replacement of the MONITOR ARM; 8-22-1 Manpower; 8-22-2 Tools; 8-22-3 Removal Procedure

To Next Page

To Previous Page

GE DRAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-69

Section 8-22

Replacement of the MONITOR ARM

8-22-1 Manpower

Two persons, 20 minutes

8-22-2 Tools

Philips screwdriver, Nipper, Allen Wrench

8-22-3 Removal Procedure

1.) Disassemble the LCD MONITOR. Refer to the Section 8-21 "Replacement of Monitor" .

2.) Unscrew 1 screw to remove Monitor arm cover. Refer to the figure below.

3.) Removing 2 RUBBER CAPS on SPEAKER COVER LFET/RIGHT.

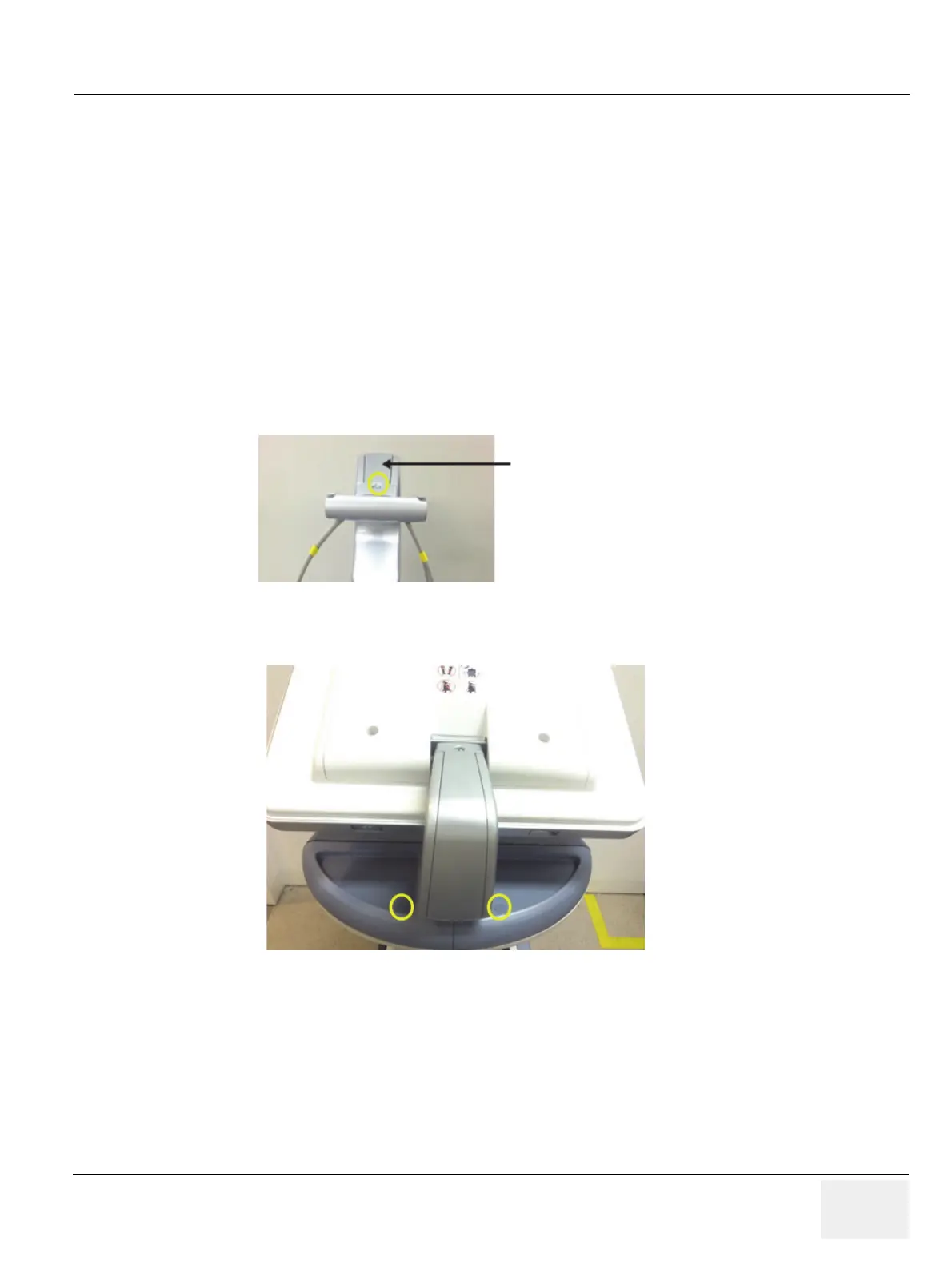

Figure 8-94 Removing the LCD Arm Cover

Figure 8-95 Removing 2 RUBBER CAPS on SPEAKER COVER LEFT/RIGHT

MONITOR ARM

COVER
