Section 8-35
Replacement of AN KEYBOARD ASSY
8-35-1 Manpower
One person, 15 minutes
8-35-2 Tools
Philips Screwdriver
8-35-3 Preparations
1.) Power Off/Shutdown the system as described in 4-3-2 on page 4-4.
8-35-4 Removal Procedure
1.) Follow the removal procedure of Section 8-25 "Replacement of OPIO" .
2.) Disconnect the HUB TO MAIN OPIO CABLE. Refer to the figure below.
3.) Unscrew 10 screws. and pull out the AN KEYBOARD and OPIO HUB PWA ASSY. Refer to the
figure below.

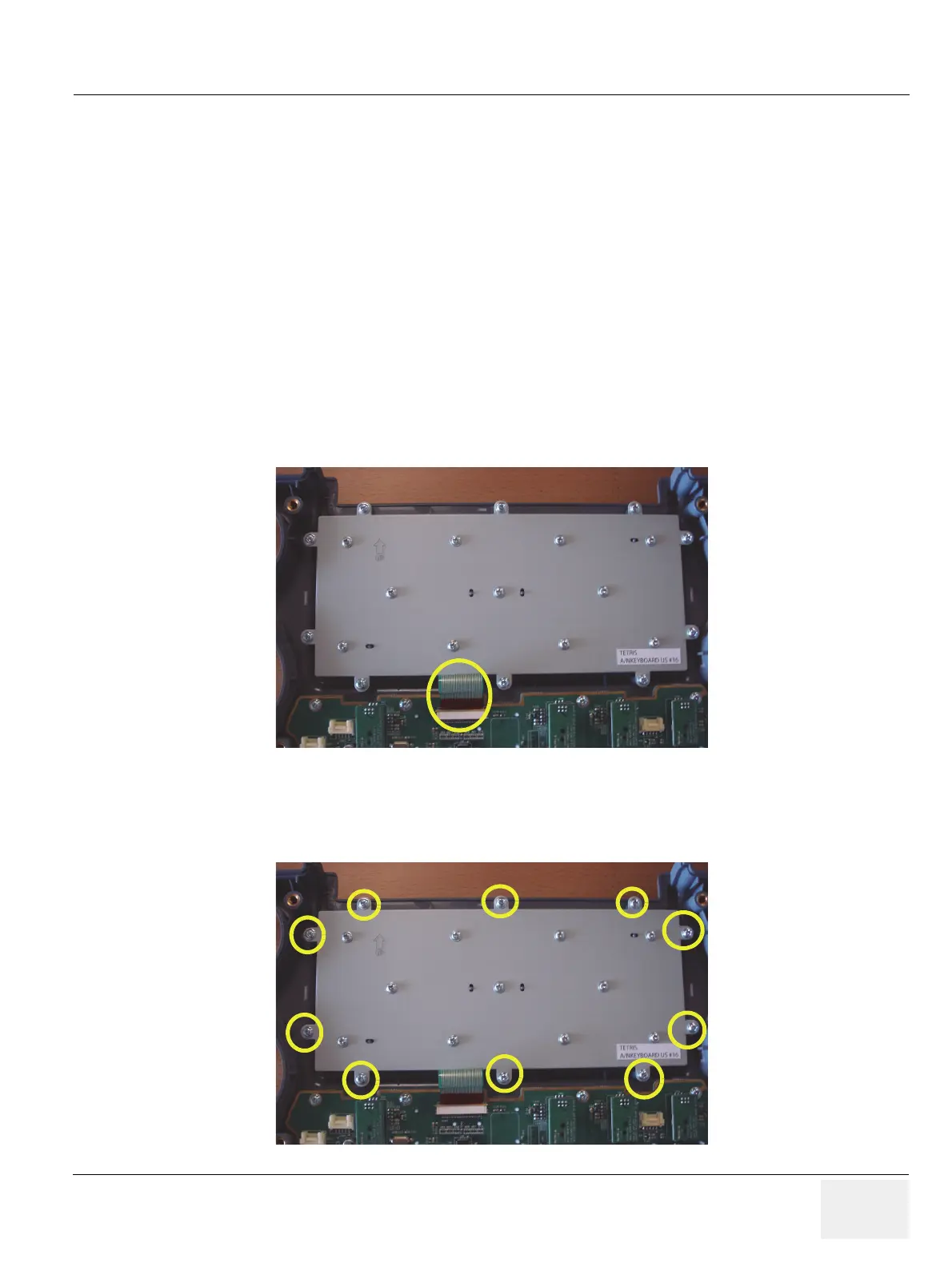

Figure 8-166 Disconnecting the HUB TO MAIN OPIO CABLE
Figure 8-167 Unscrewing 10 screws from the AN KEYBOARD
