GE RAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

3-16 Section 3-5 - Connection of Auxiliary Devices

3-5-3-1 Connection Scheme: Color Printer

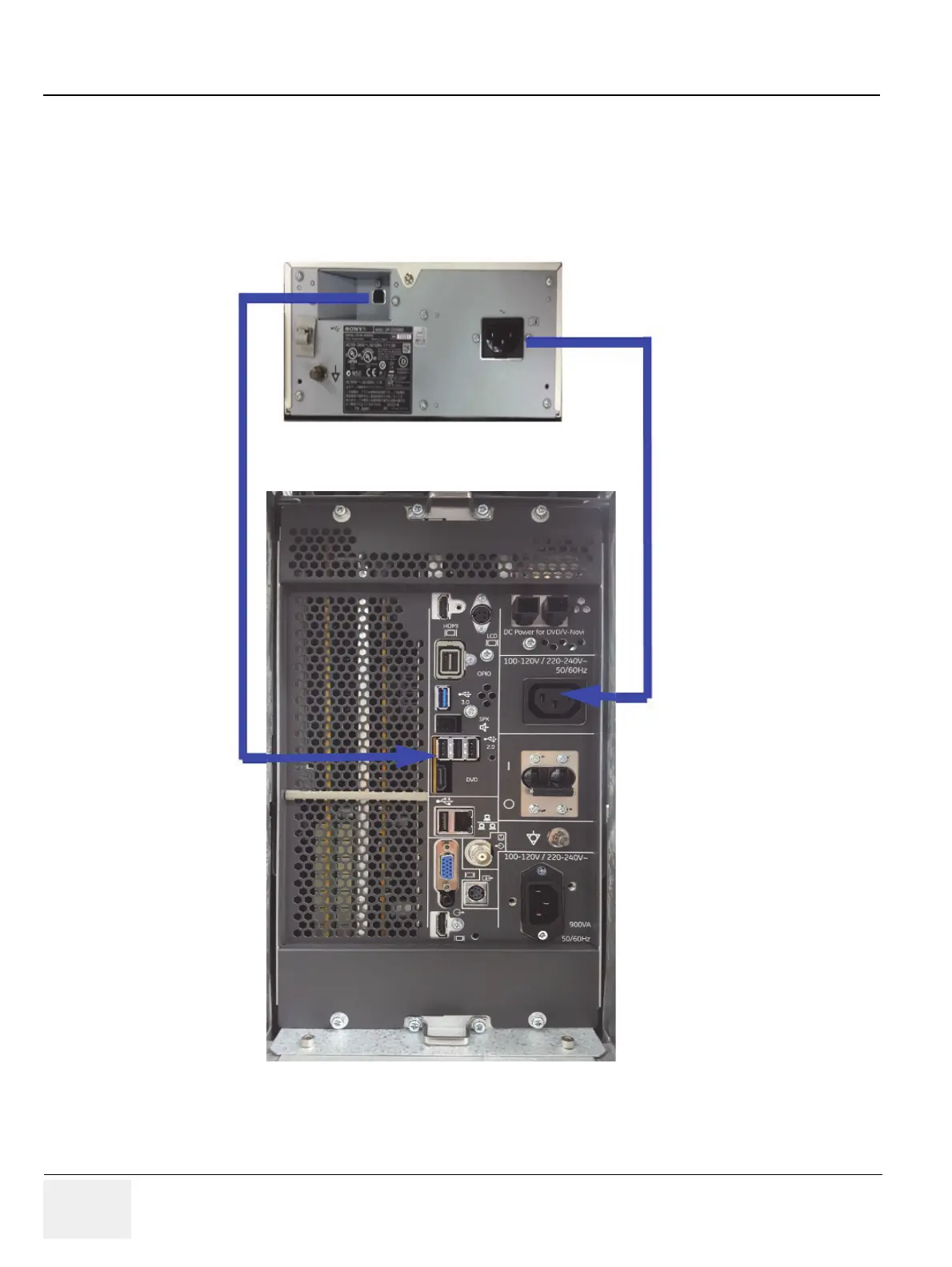

Figure 3-7 Color Printer connection
