GE DRAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

Chapter 7 - Diagnostics/Troubleshooting 7-33

7-6-2-4 GPU (Graphics Processing Unit) Test

This test examines data transfer and memory workload of the Graphic card. Image/Calculation errors

are displayed after test is finished.

• 10 Iterations

Wait about 2 minutes for test to complete. Final error count after 10 iterations of GPU memory is

displayed.

• 50 Iterations

Wait about 10 minutes for test to complete. Final error count after 50 iterations of GPU memory is

displayed.

• 100 Iterations

Wait about 20 minutes for test to complete. Final error count after 100 iterations of GPU memory is

displayed.

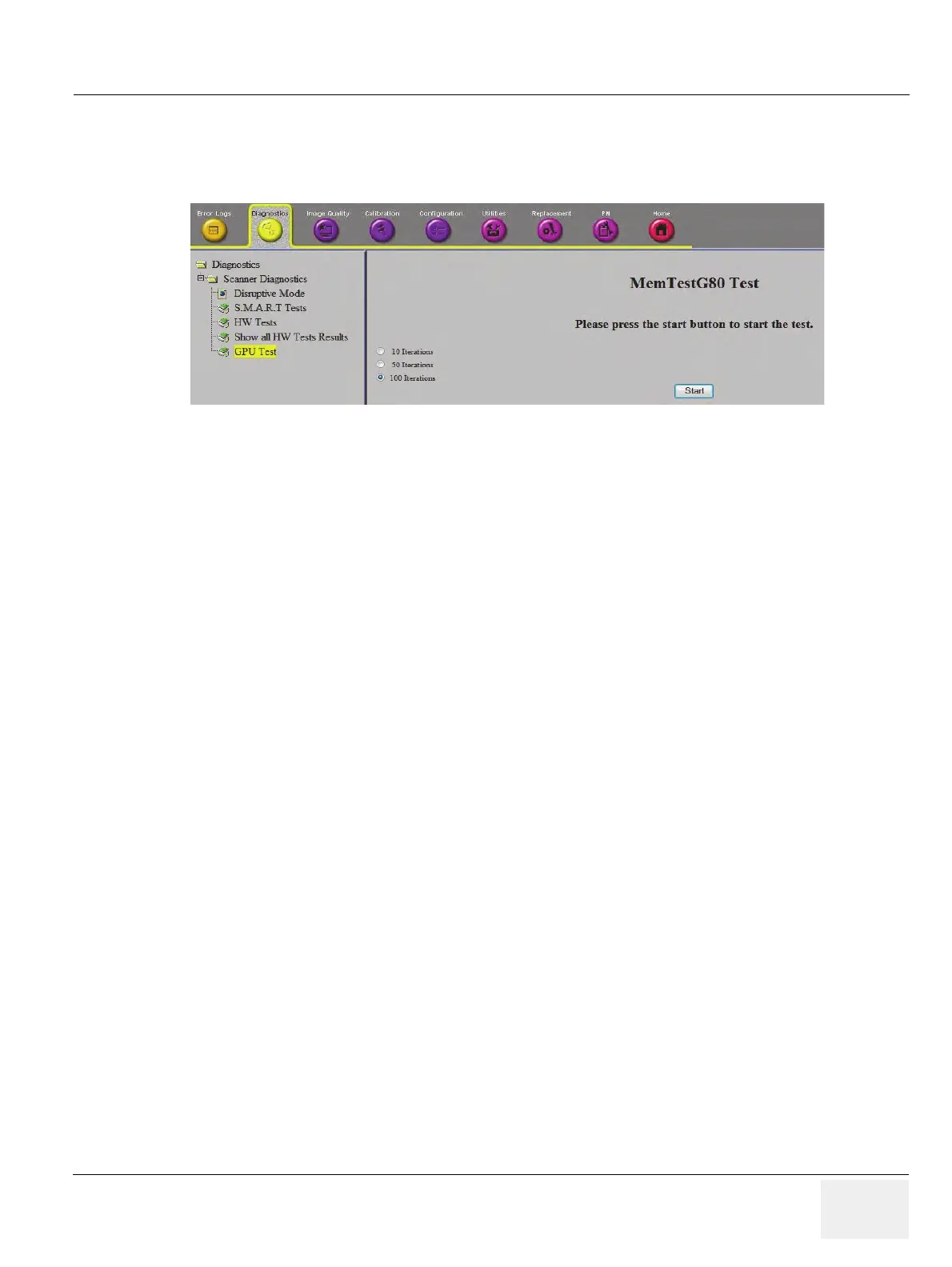

Figure 7-33 CSD - Diagnostics - GPU Test

Main Page
