Section 8-32
Replacement of SIDE COVER R ASSY
8-32-1 Manpower
One person, 5 minutes
8-32-2 Tools
Philips Screwdriver
8-32-3 Preparations
1.) Power Off/Shutdown the system as described in 4-3-2 on page 4-4.
8-32-4 Removal Procedure
1.) Unscrew 2 screws, and remove the Tray Side Cabinet. Refer to the figure below.
2.) Remove the FRONT PRINTER BEZEL ASSY BT16. Refer to the figure below.

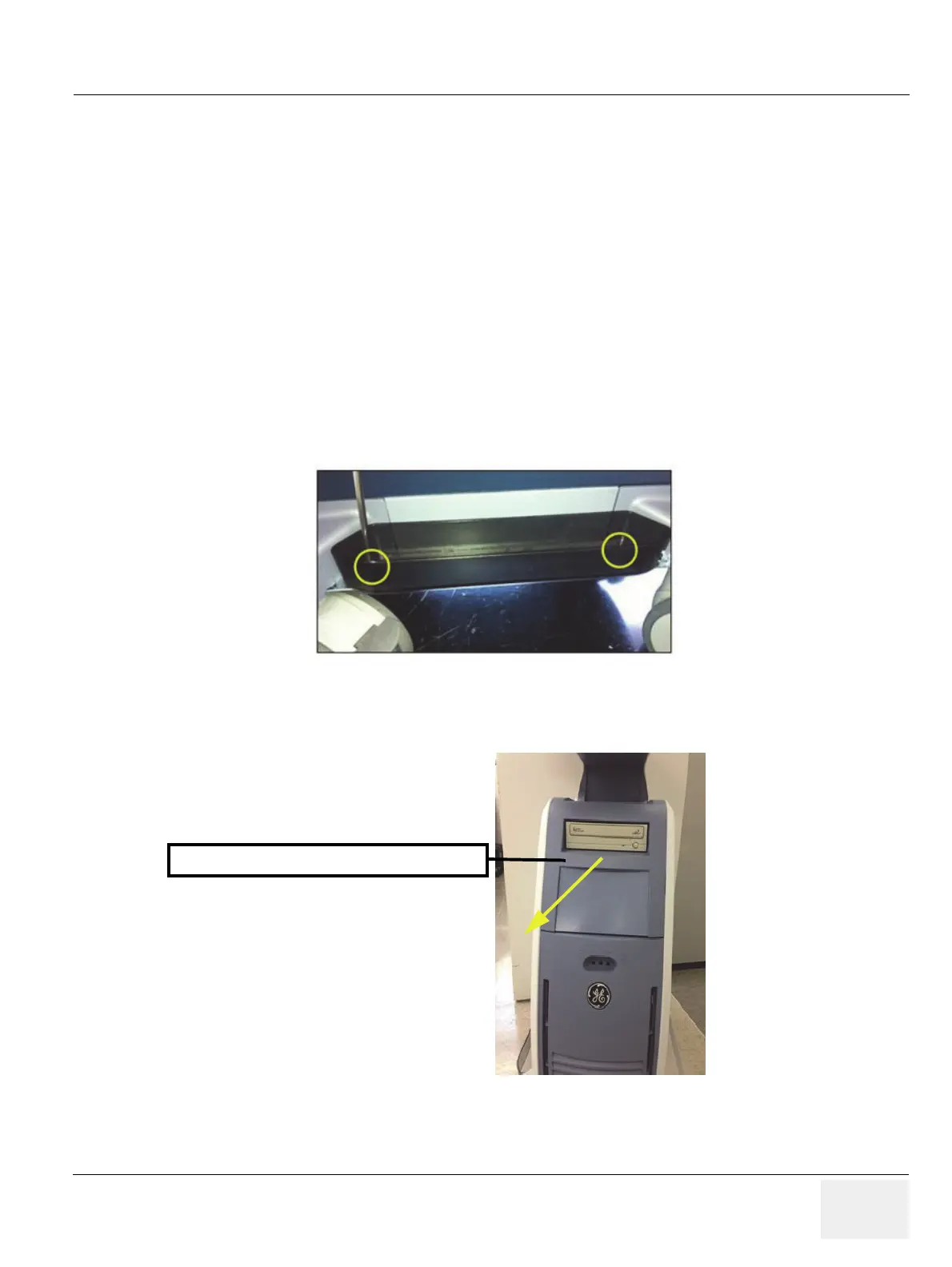

Figure 8-152 Removing the Tray Side Cabinet
Figure 8-153 Removing the FRONT PRINTER BEZEL ASSY BT16
FRONT PRINTER BEZEL ASSY BT16
