GE DRAFT VOLUSON™ P8/VOLUSON™P6
DIRECTION 5775469, R
EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-97
6.) Unscrew 4 screws and remove the Nest box. Refer to the figure below.
8-28-5 Installation Procedure
1.) Install the new parts in the reverse order of removal.
2.) Perform: FRU8-13: Replacement of the NEST - Functional Tests.

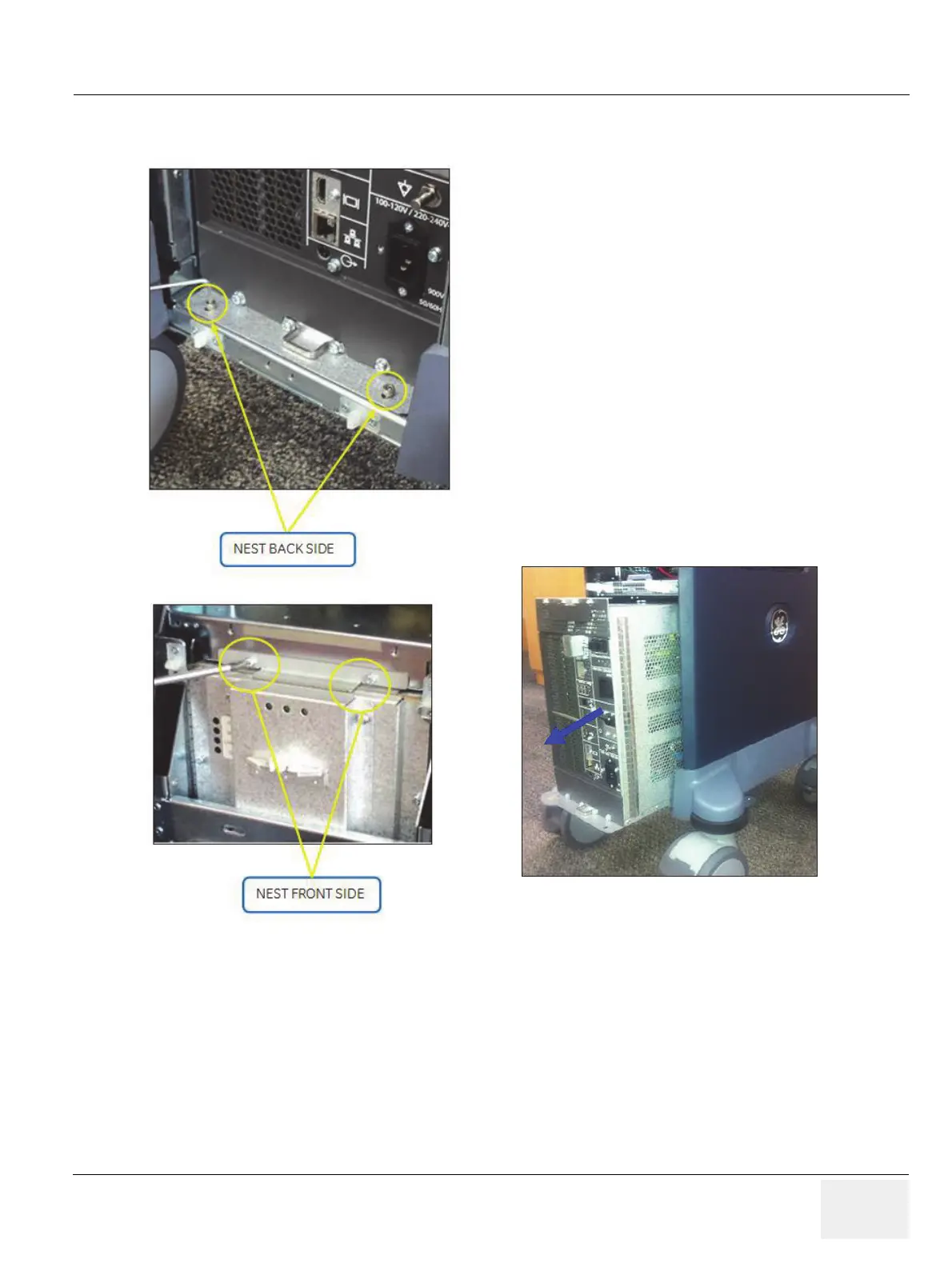

Figure 8-144 Unscrewing 4 screws and removing the NEST BOX
