8.) By using spanner, unscrew the nut of encoder to be replaced. And replace the encoder. Refer to
the figures below.
9.) Pull the encoder out from the main keyboard circuit board. Refer to the figure below.
8-15-4 Installation Procedure
Install a new part in the reverse order of removal procedure.

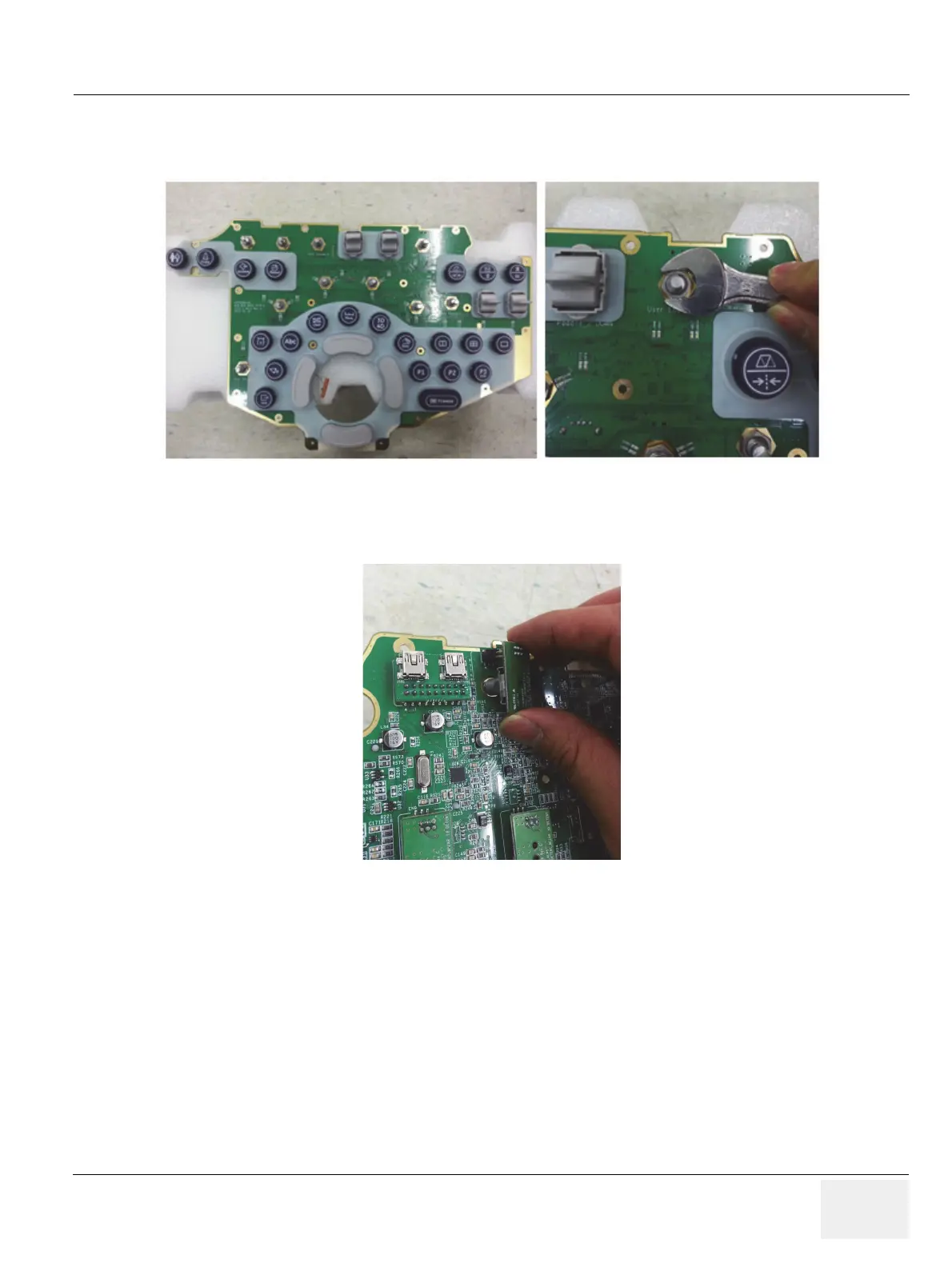

Figure 8-44 Unscrewing the nut of encoder to be replaced
Figure 8-45 Pulling the encoder out from the main keyboard circuit board
