8-176 Section 8-57 - Replacement of ECG Kit assy
3.) Open keyboard assembly.
4.) Remove ECG DUMMY BRKT.

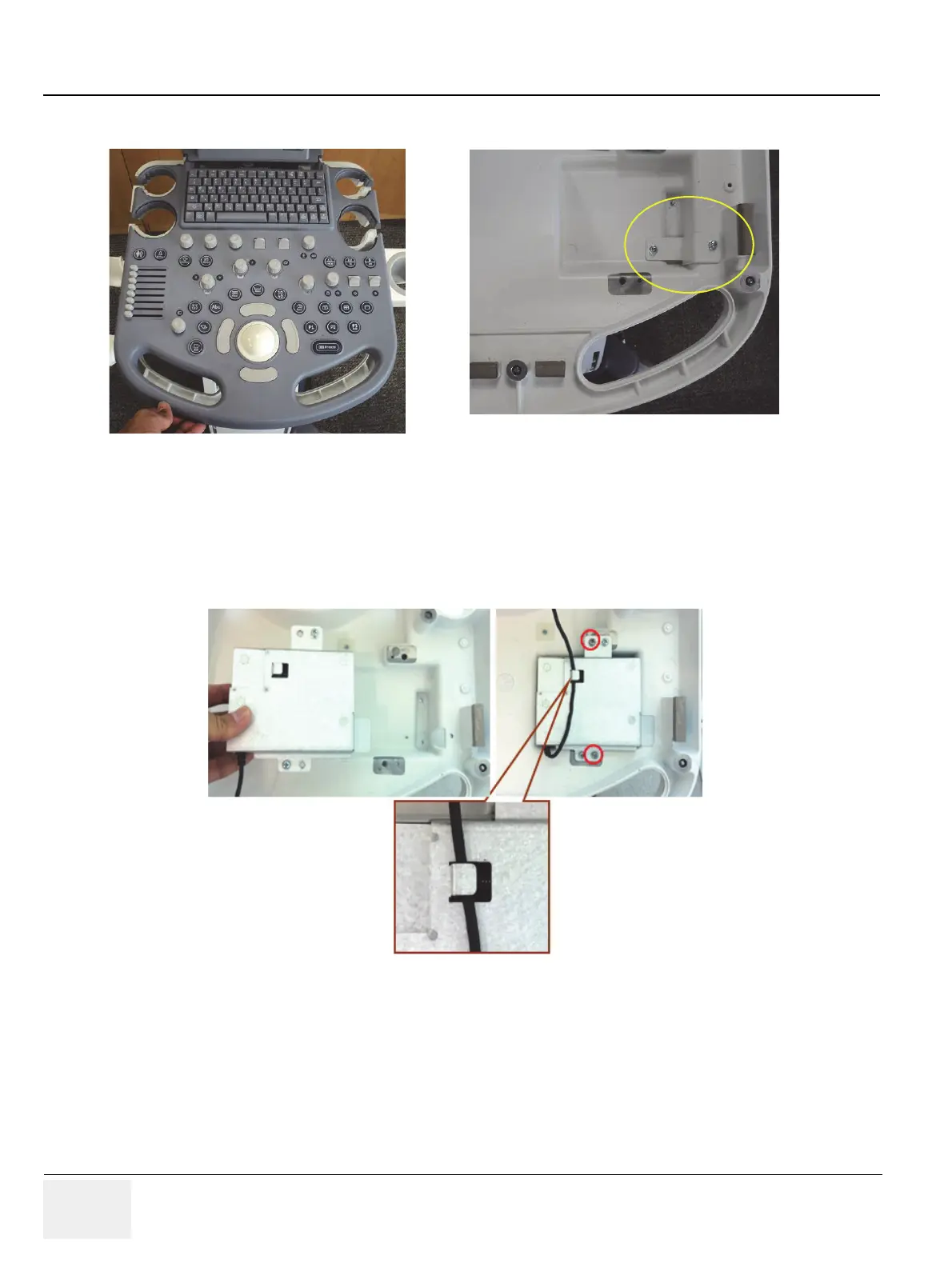

Figure 8-252 ECG DUMMY BRKT
8-57-5 Installation Procedure
1.) Assemble ECG kit on keyboard base.
2.) Screw ECG kit with Keyboard base using 2 screws (2159625-screw w/SP PH m4x8)and fix ECG
USB cable by using the hook of bracket.
Figure 8-253 ECG kit Installation
