GE Voluson P6 - Section 8-23 Replacement of LCD Cable; 8-23-1 Manpower; 8-23-2 Tools; 8-23-3 Disassembly Procedure

GE RAFT VOLUSON™ P8/VOLUSON™P6
DIRECTION 5775469, R
EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL
8-72 Section 8-23 - Replacement of LCD Cable
Section 8-23
Replacement of LCD Cable
8-23-1 Manpower
One person, 15 minutes
8-23-2 Tools
Philips screw driver, Flat-blade screwdriver, wrench, Pincette, Cutter
8-23-3 Disassembly Procedure
1.) Unscrew 2 screws to remove the MONITOR REAR CABINET BEZEL ASSY BT16. Refer to the
figure below.
2.) Unscrew 5 screws to disconnect the LCD Cables.

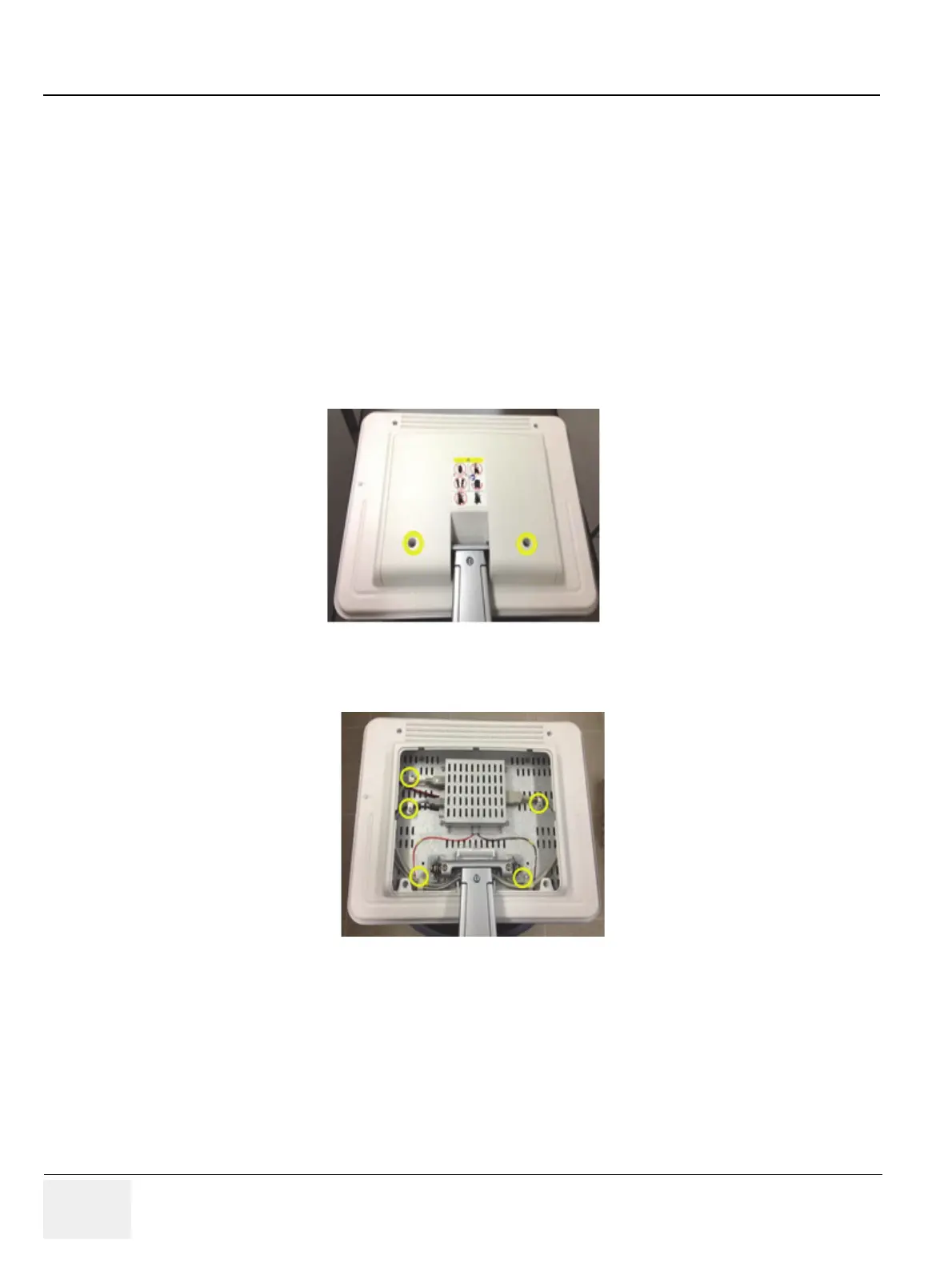

Figure 8-101 Unscrewing 2 screws to remove the MONITOR REAR CABINET BEZEL ASSY BT16
Figure 8-102 Unscrewing 5 screws to disconnect the LCD Cables
