GE DRAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-73

3.) Unscrew 1 screw to remove MONITOR ARM COVER. Refer to the figure below.

4.) Unscrew 1 screw to remove MONITOR CABLE FIX BRKT. Refer to the figure below.

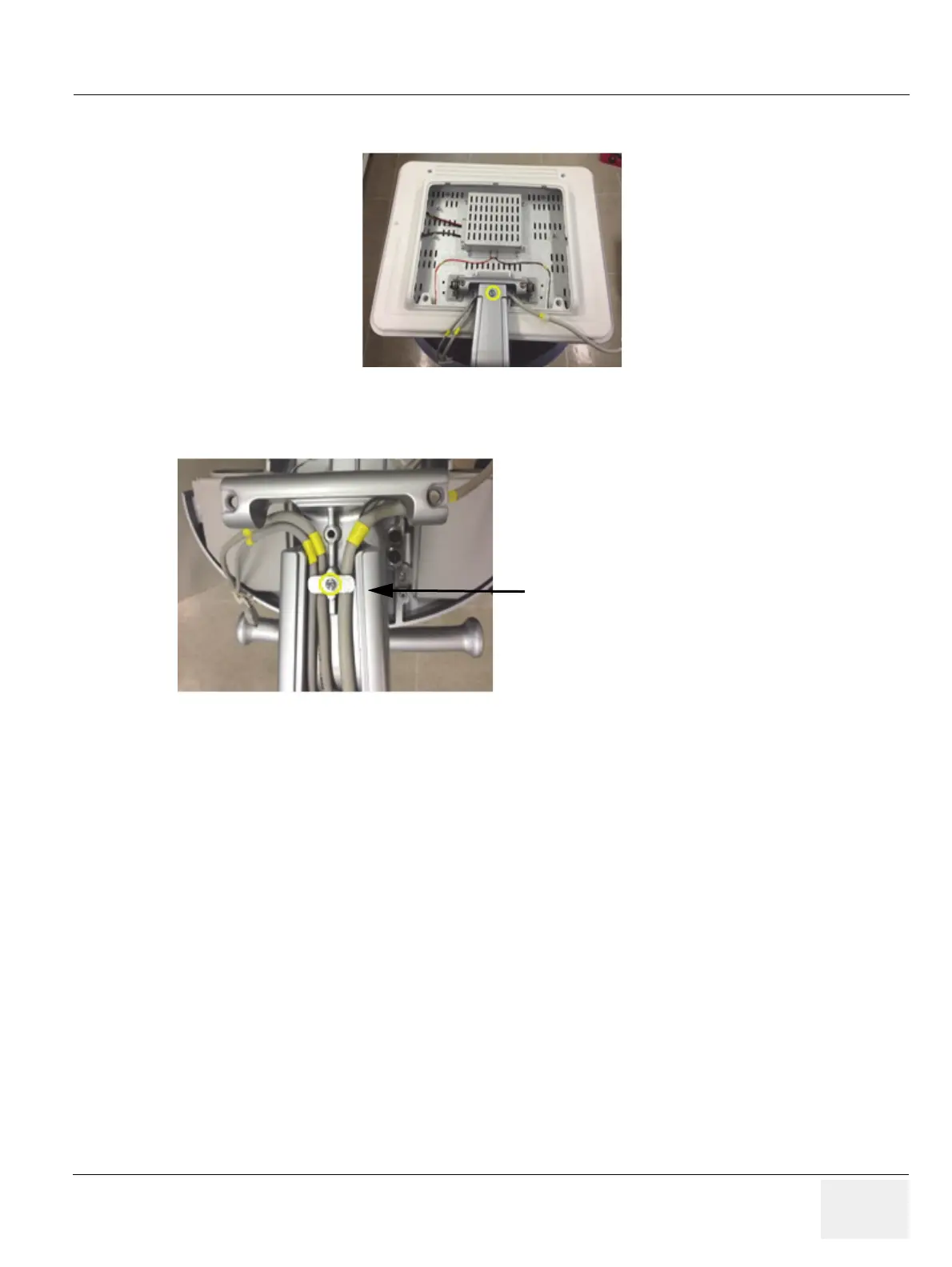

Figure 8-103 Unscrewing 1 screw to remove Monitor arm cover

Figure 8-104 Unscrewing 1 screw to remove MONITOR CABLE FIX BRKT

MONITOR CABLE FIX BRKT
