GE DRAFT VOLUSON™ P8/VOLUSON™P6
DIRECTION 5775469, R
EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL
Chapter 4 - Functional Checks 4-29

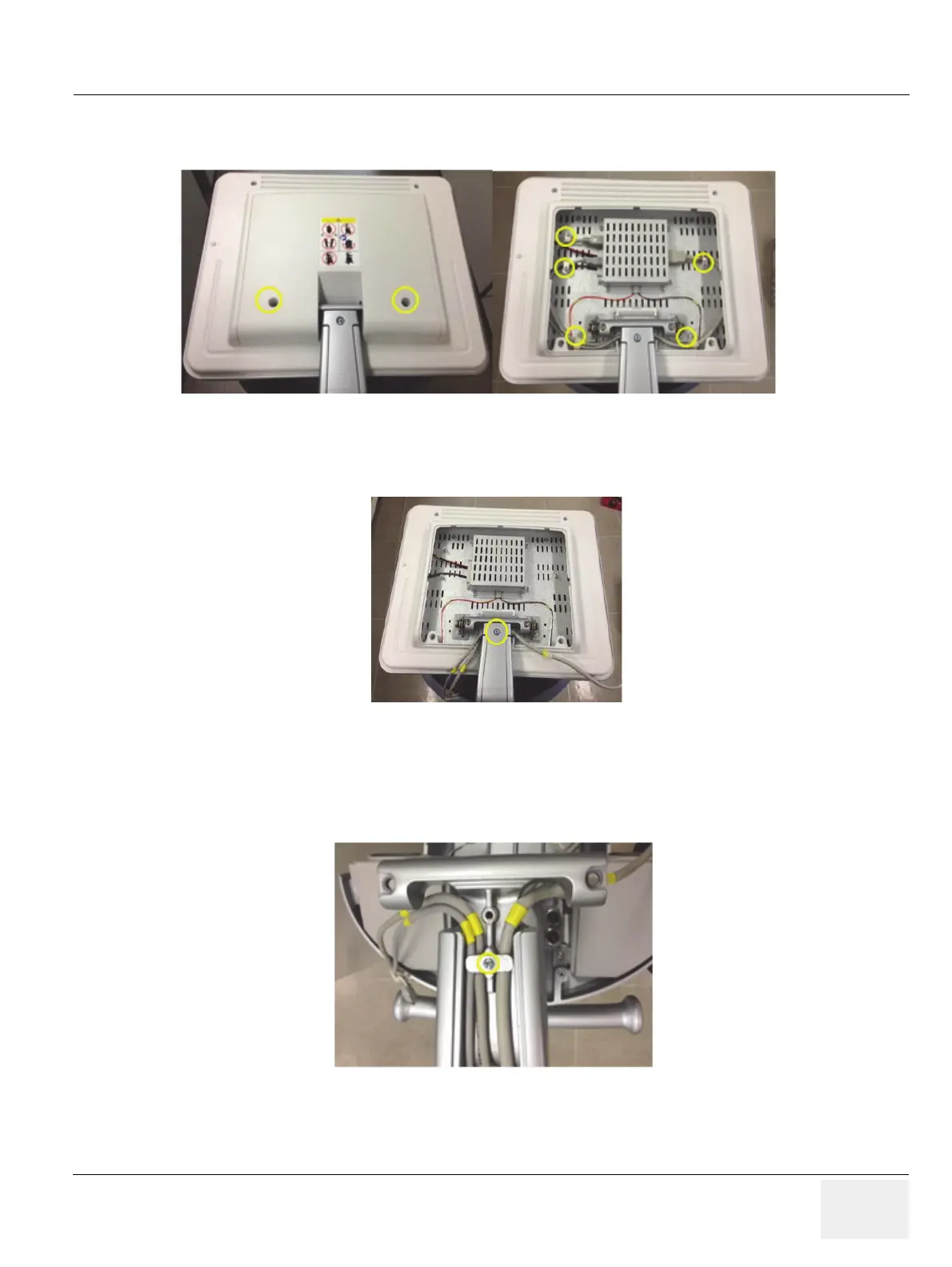

3.) Unscrew 2 screws to remove the MONITOR CABLE COVER. And unscrew 5 screws to
disconnect the LCD cables.
Figure 4-31 Removing the MONITOR CABLE COVER and cables
4.) Unscrew 1 screw to remove MONITOR ARM COVER BT16.
Figure 4-32 Unscrewing 1 screw to remove the MONITOR ARM COVER BT16
5.) Unscrew 1 screw to remove MONITOR CABLE FIX BRACKET.
Figure 4-33 Unscrewing 1 screw to remove MONITOR CABLE FIX BRACKET
To Next Page
