GE DRAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

Chapter 7 - Diagnostics/Troubleshooting 7-17

3.) Select the destination of the “System state” backup.

4.) Select the NEXT

button to start the backup process.

After saving the data, the Voluson™ P8/Voluson™P6 reboots and the application starts again.

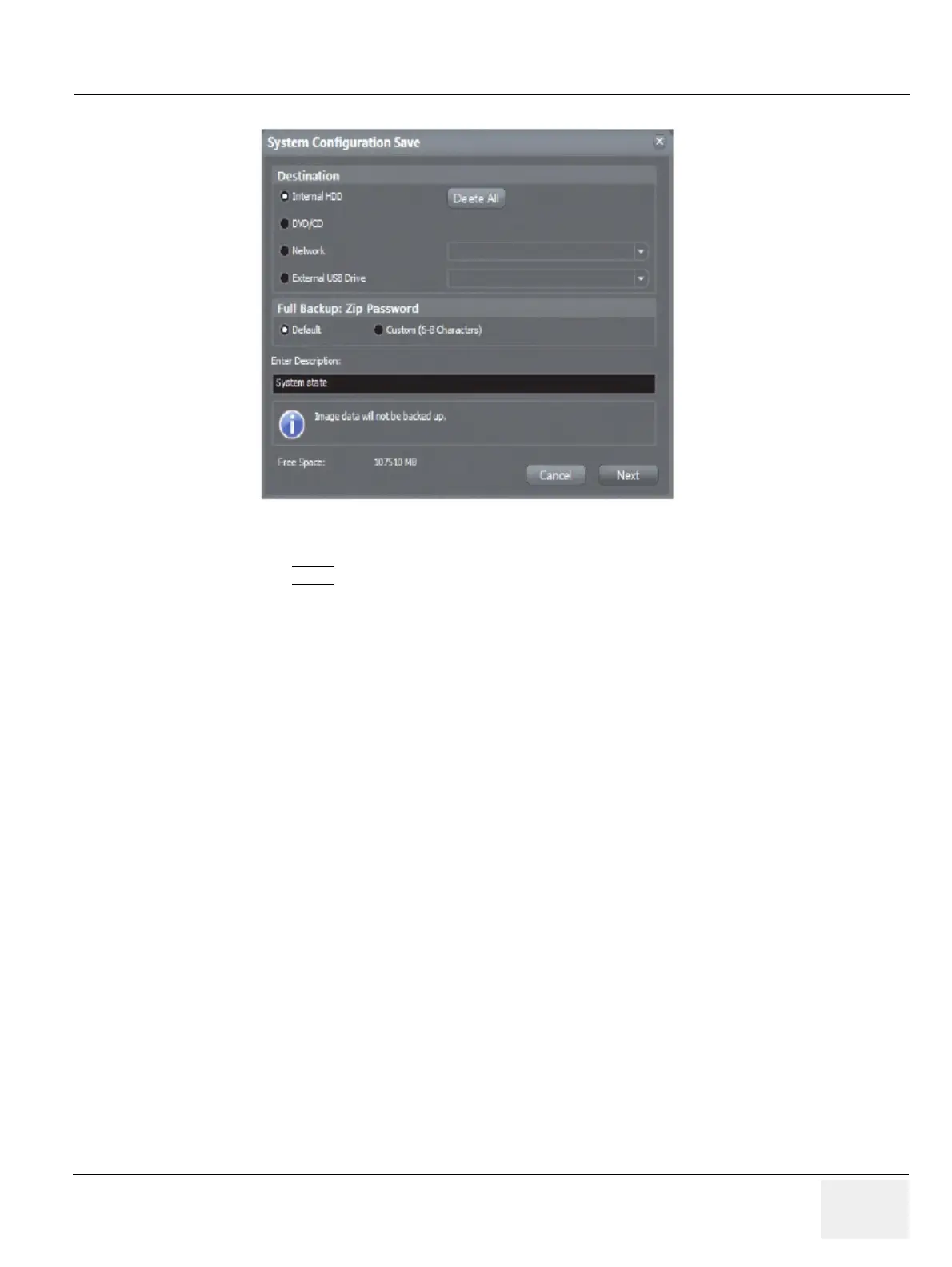

Figure 7-15 System Configuration Save
