GE DRAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-119

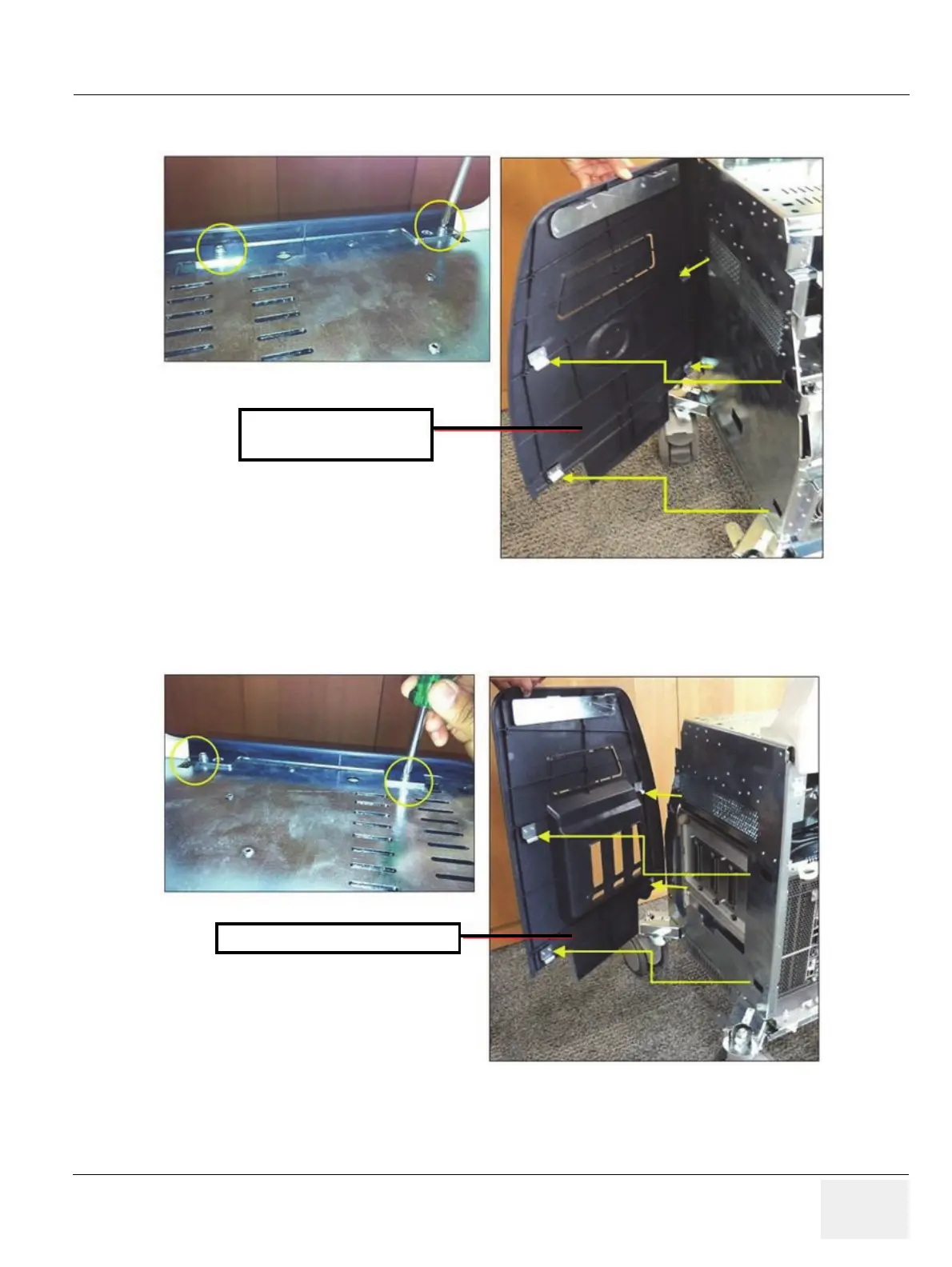

7.) Unscrew 2 screws, and remove the SIDE COVER L ASSY BT16 . Refer to the figure below.

8.) Unscrew 2 screws, and remove the SIDE COVER R ASSYBT16 . Refer to the figure below.

Figure 8-174 Removing the SIDE COVER L ASSYBT16

Figure 8-175 Removing the SIDE COVER R ASSYBT16

SIDE COVER L ASSY

BT16

SIDE COVER R ASSY BT16
