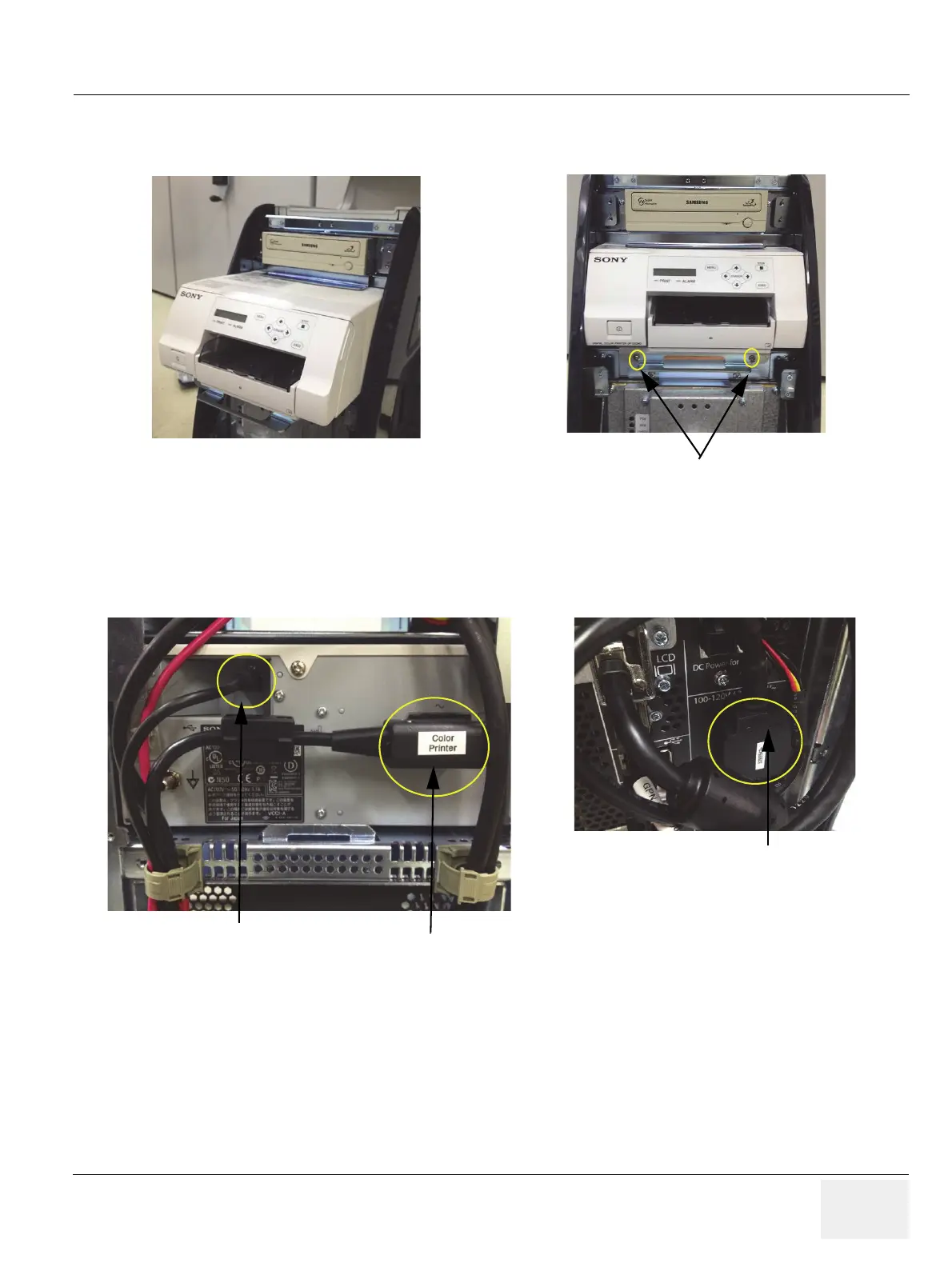

13.)Assemble the printer assembly.

14.)Assemble the printer base plate with chassis using 2 screws (2159634 - screw BH M4X10).

Figure 8-229 Assembling printer base plate

15.)Insert the printer USB cable and printer power cable.

16.)Insert the printer power cable in to the nest box.

Figure 8-230 Printer cables

2 screws (2159634 -screw BH M4X10)

Printer USB cable

Printer Power cable

in Nest box
