GE DRAFT VOLUSON™ P8/VOLUSON™P6
DIRECTION 5775469, R
EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-163
21.)Assemble the DVD front cover plastic with DVD strip and B/W printer strip using 8 screws
(2327596 - screw washer head M3x6).
22.)Assemble 4 numbers of Holding Catch, female with DVD front cover using 8 screws (2306562
- screw FH M3x6)

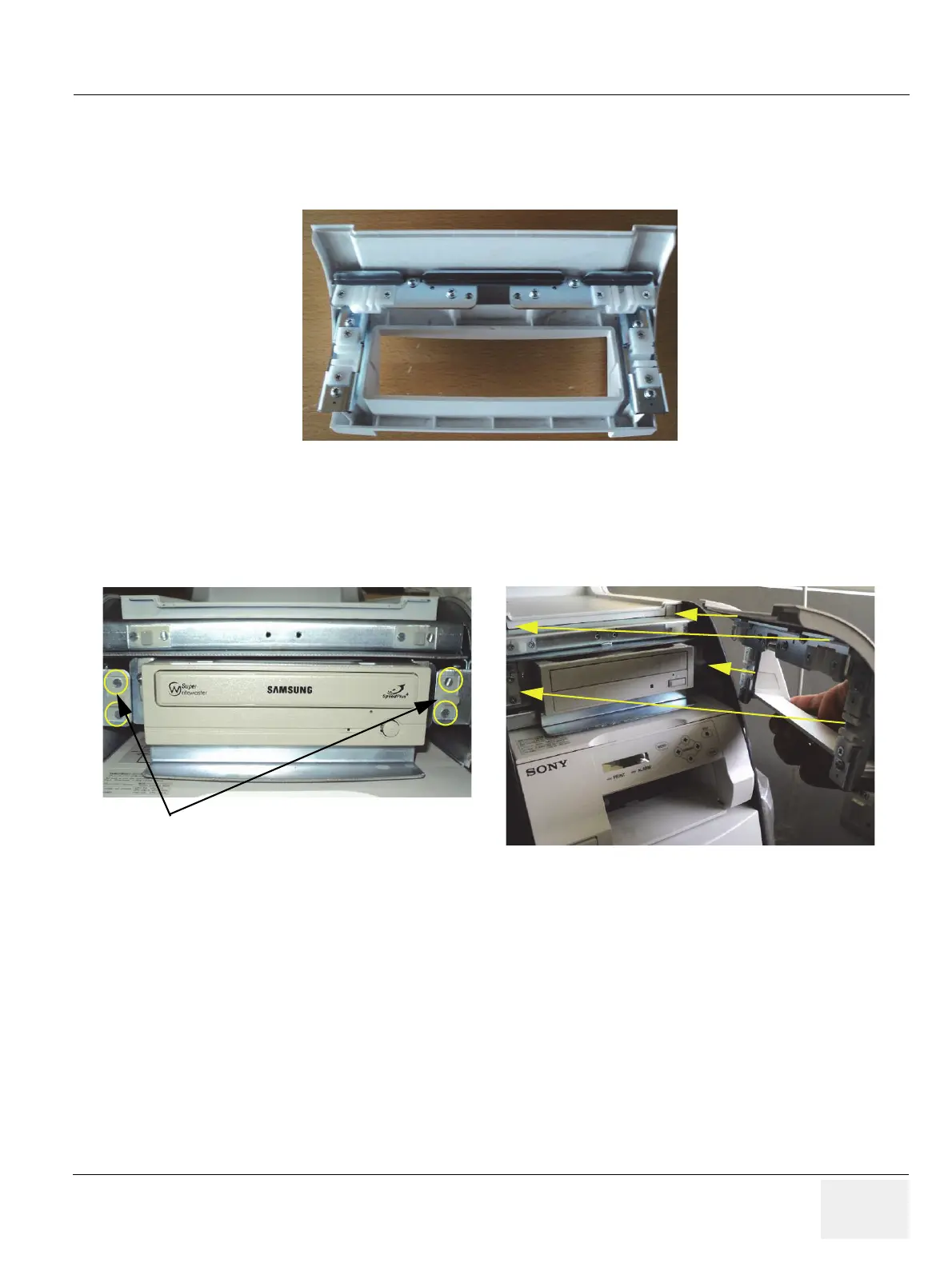

Figure 8-233 Assembling DVD front cover
23.)Assemble 2 numbers of holding catch male with sheet metal chassis using 4 screws (2306562
- screw FH M3x6)
24.)Assemble ASSY BEZEL FRONT DVD PLASTIC BT16 with sheet metal chassis.
Figure 8-234 Assembling Holding Catch, male and ASSY BEZEL FRONT DVD PLASTIC BT16
