Remark:
The results (such as outer and inner distance and the Stenosis %) appear automatically.

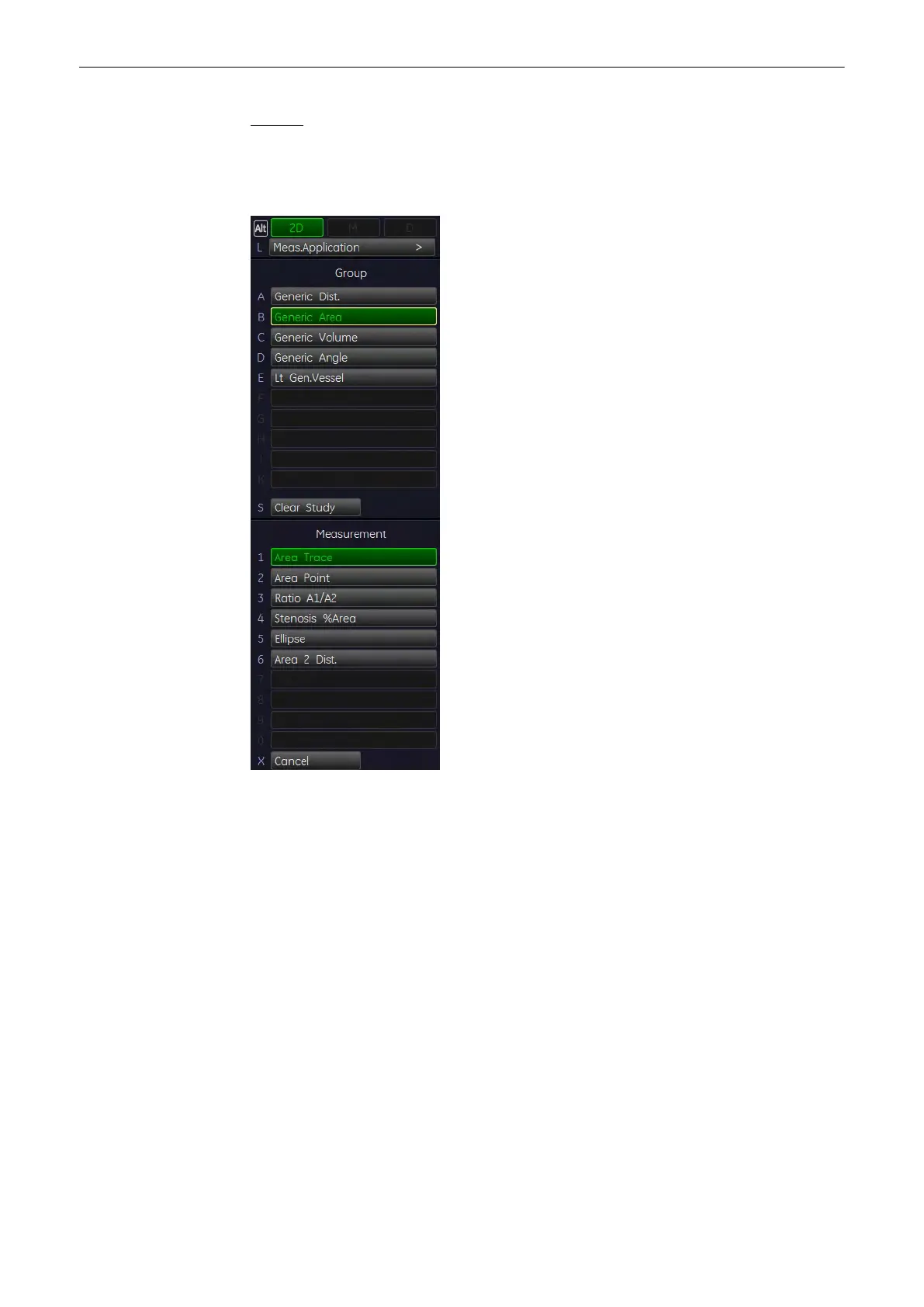

11.1.2.2 Generic Area Measurements
11.1.2.2.1 Area Trace
1. To measure circumference and area using trace, select the [Area Trace] item in the
menu area. A cursor appears on the screen.
2. Move the cursor to the start of the measurement and press the right or left trackball key
[Set] to fix the marker. A second cursor appears.
3. Move the second cursor around the shape to be measured.
Note
To re-adjust the traced line, press the upper trackball key [Undo] repeatedly.
4. When the second cursor is near the initial cursor position, or if you press the right or left
trackball key [Set] again the trace is automatically completed by a straight line.
11.1.2.2.2 Area Point
1. To measure circumference and area by setting several points (as much as desired),
select the [Area Point] item in the menu area. A cursor appears on the screen.
2. Move the cursor to the start of the measurement and press the right or left trackball key
[Set] to fix the marker.
Measurements and Patient Worksheets (Reports)
11-8
Voluson® S6/S8 Basic User Manual
5433669-100 Revision 4
