GE Voluson S6 - MV (Mitral Valve); TV (Tricuspid Valve)

11.2.5.9 MV (Mitral Valve)

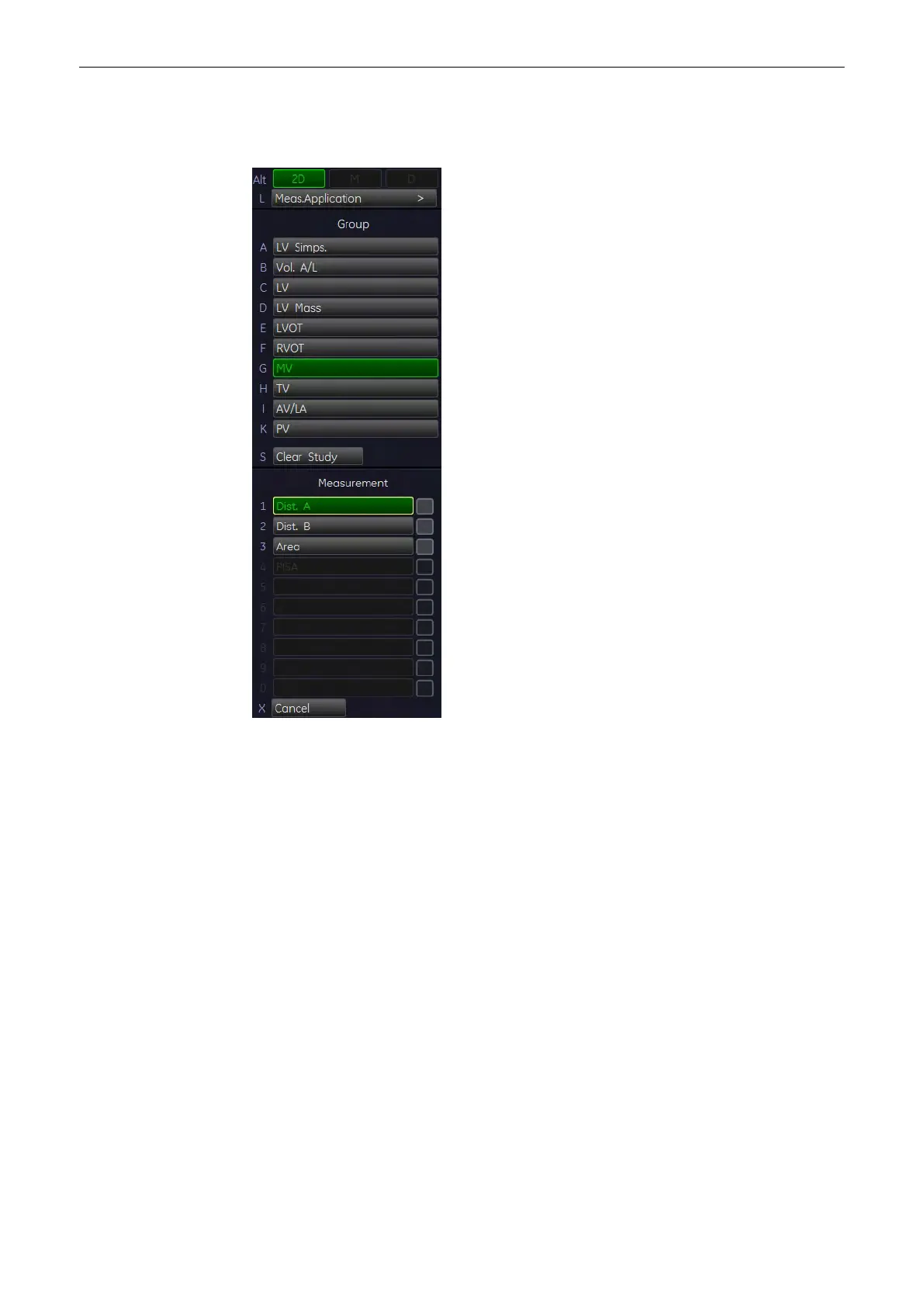

To measure Distance A, Distance B or Area of the MV
(Mitral Valve) in 2D mode:
1. Press the [Calc] key on the control panel.
2.
Select the item [MV].
3. Select the appropriate measurement parameter. For example: select [Dist A].
4. Use the trackball to move the cursor to the start point of the measurement and press the
right or left trackball key [Set] to fix the marker. A second cursor appears.
5. Move the second cursor to the second point of the measurement and press [Set] again.
11.2.5.10 TV (Tricuspid Valve)
To measure the Diameter of the TV
(Tricuspid Valve) in 2D mode:
1. Press the [Calc] key on the control panel.
2. Select the item [TV] and then the measurement parameter [TV Diam].
3. Use the trackball to move the cursor to the start point of the measurement and press the
right or left trackball key [Set] to fix the marker. A second cursor appears.
4. Move the second cursor to the second point of the measurement and press [Set] again.
Note
To re-adjust the start point, press the upper trackball key [Change] before completing the
measurement. This alternates the control from one cursor to the other.
