6 Chapter 1, Installation
2. Remove all plastic wrapping materials.
3. Remove the pieces of foam, which protect the tool head during
transportation.
4. If you had your cutter delivered with a stand, please refer to the
mounting instructions that came with it.

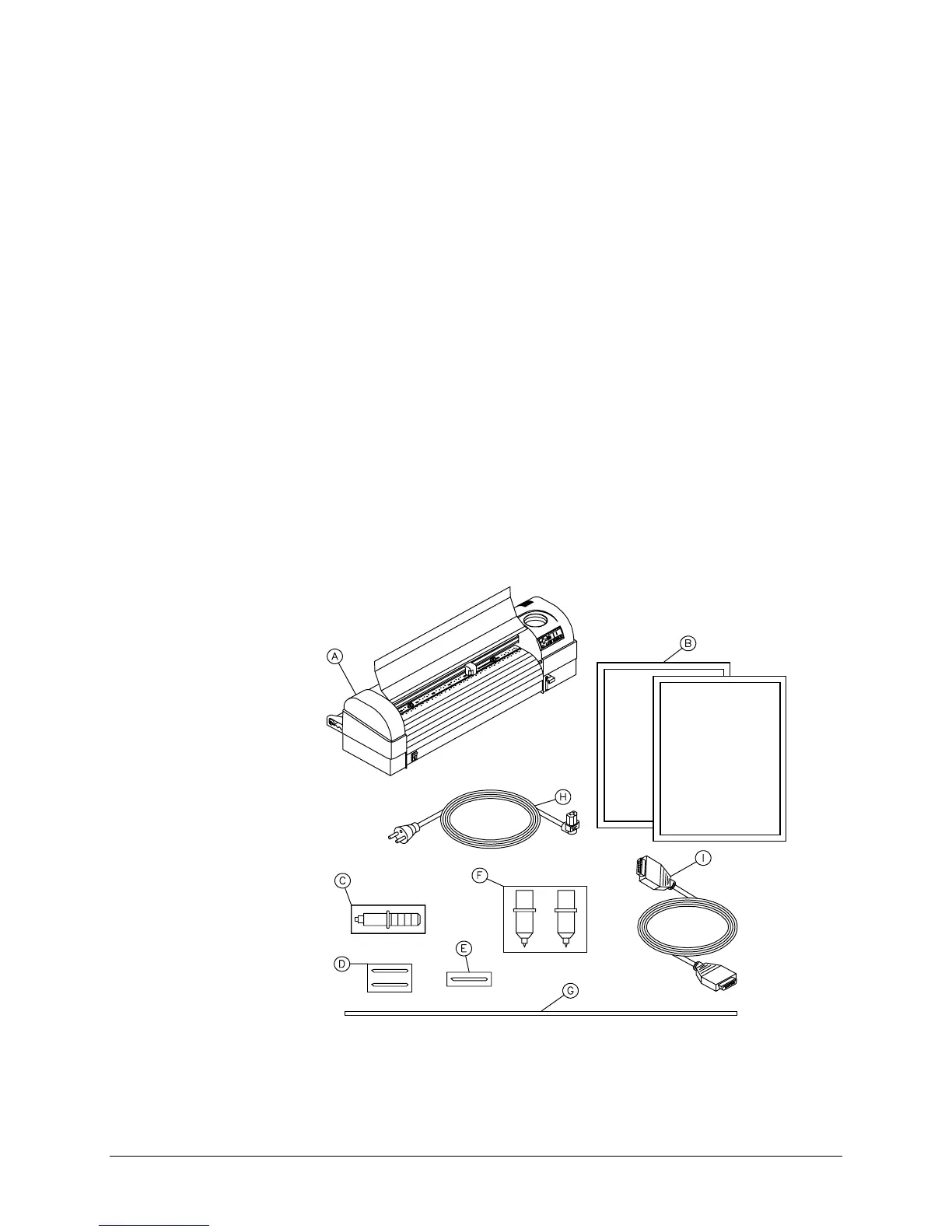

Cutter box contents
A. Cutter unit with roll support system, conveyor rolls, and small flanges.
B. Owner’s Guide and Quick Reference
C. One knife holder
D. Set of 2 blades and 1 spring for cutting jobs (45°/Offset 0.50 mm)
E. Blade for auto-sheet-off (1 pc–installed in tool head)
F. Set of fiber-tip pens (2 pcs)
G. Spare cutting mat (1 pc)
H. Power cord
I. RS-232C serial interface cable
