10 Chapter 1, Installation
Do not use sharp or pointed tools like pens or pencils to press control
panel keys. Press the keys with your fingertips only.
CONNECTING THE CUTTER TO THE COMPUTER
Serial interface

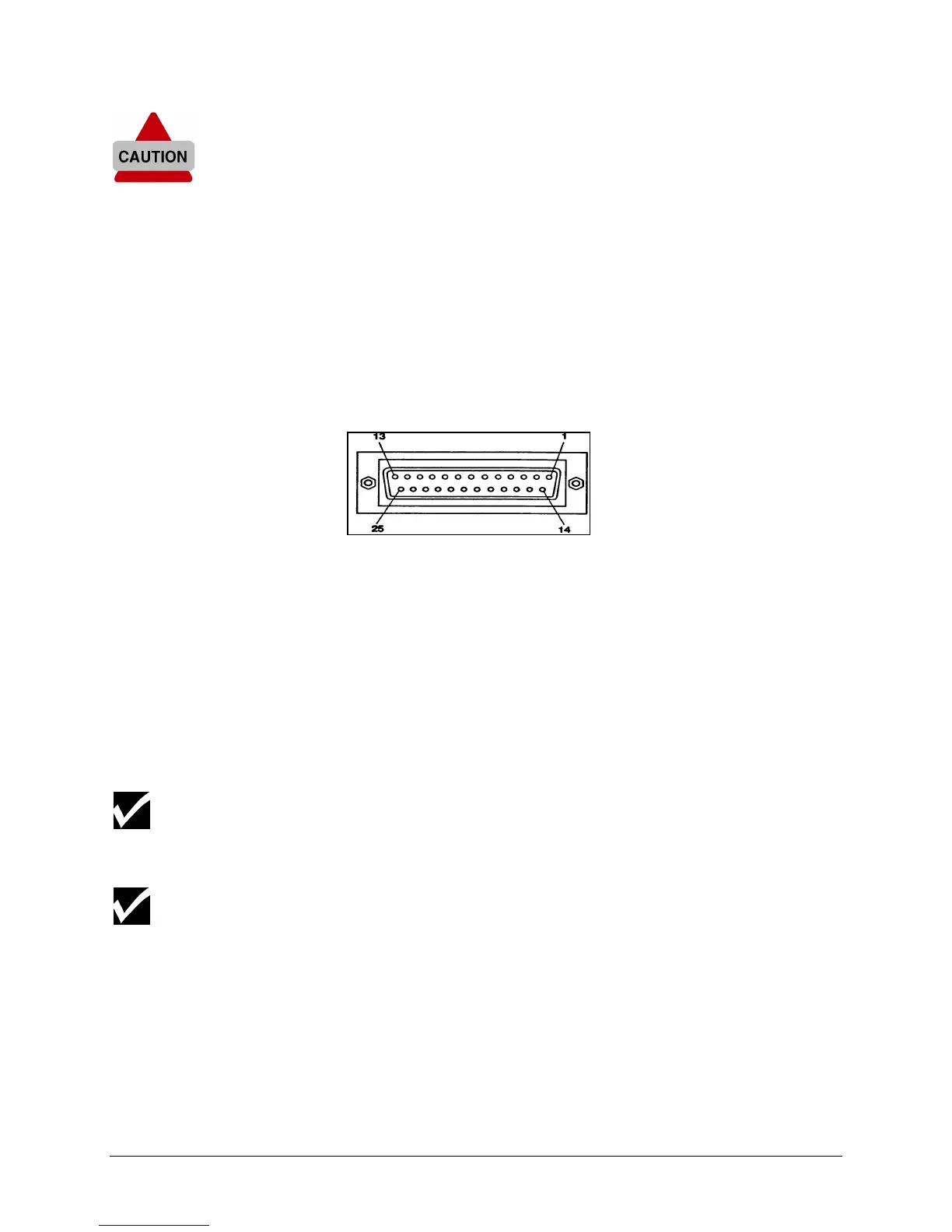

The serial RS-232C interface enables the cutter to be connected to and
controlled by an RS-232C compatible host computer system. The cutter is
equipped with a standard RS-232C - DB-25P connector on the rear panel
and requires a standard RS-232C dB-25S mating connector.
To connect the serial interface
1. Make sure both the cutter and the computer are turned off.
2. Connect one end of the serial interface cable to the serial interface
connector at the back of the cutter.
3. Fasten the screws to secure the connector.
4. Connect the other end of the serial cable to your computer.
For proper operation of the serial communication, it is necessary to match the
computer settings to the cutter settings. For instructions, refer to
Communication Settings, Page 40, in Chapter 3.
Using the serial communication, your cutter will have two-way communication.
It can receive data from the computer and also send information to the
computer, material size, for example.
