Chapter 1, Installation 13
LOADING MATERIAL
You can load either cut-sheet or roll material. Follow the procedure below
for the type of material you are loading.
To load cut-sheet material

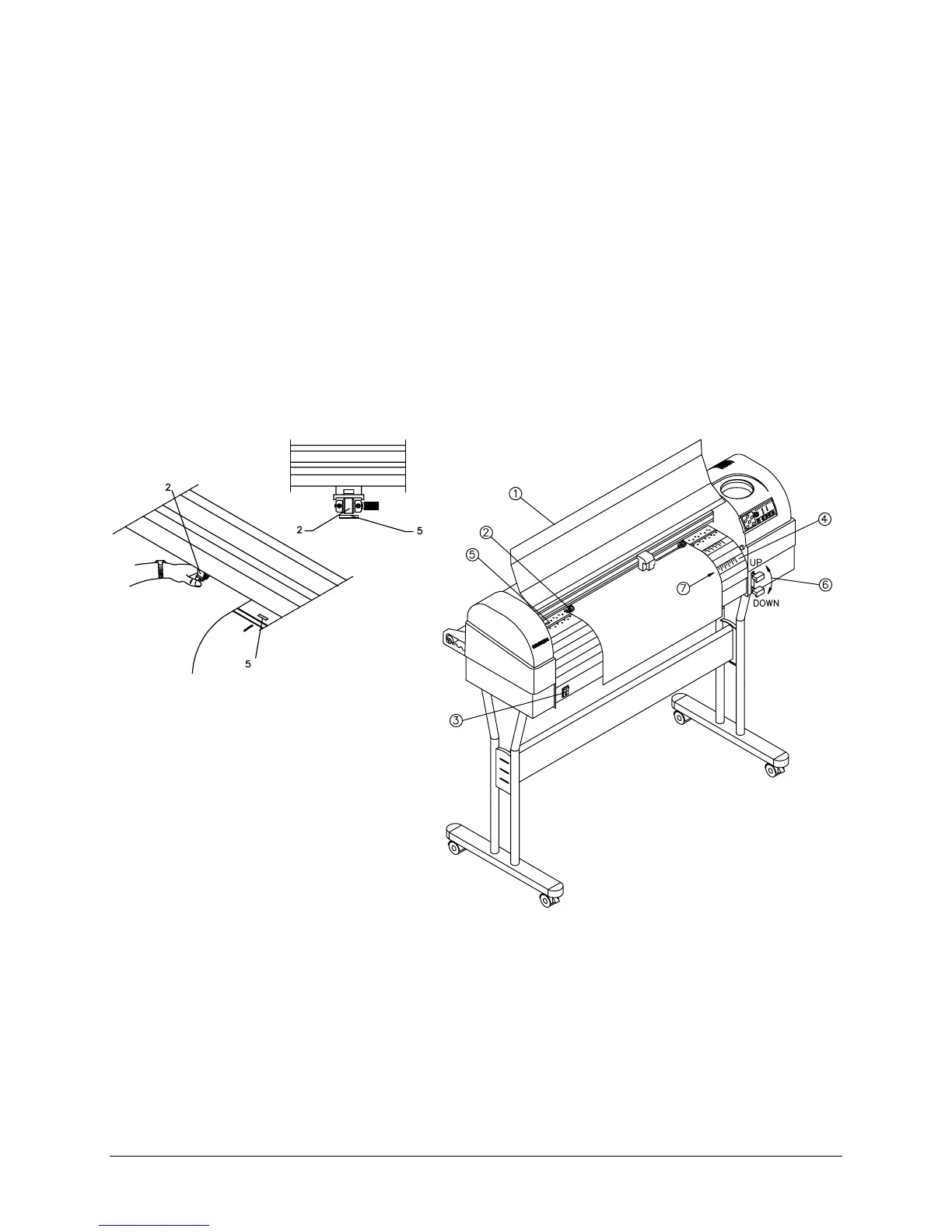

1. Close the protective cover (1).
2. Make sure the pressure rollers (2) are up. If they are not lift them up
using the material hold lever (6).
3. Turn on the power switch (3).
The cutter performs its start-up routine and moves the tool head to the
rightmost position.
4. Open the protective cover (1).
5. Insert the material into the cutter, using the two sets of alignment
markers (4) to make sure the right edge of the material is straight.
Position the material so that half of it hangs in front and half of it hangs
in back of the cutter.
6. Adjust the position of the pressure rollers (2) so that they align with the
drive rollers (5). When the left pressure roller is moved into proper
alignment with one of the drive rollers, you will feel and hear it click into
