6.9 Additional settings window
To adjust breathing parameters during
ventilation, press the Additional settings
touchpad to open the Additional Settings
Window.
SVS_9001_XX

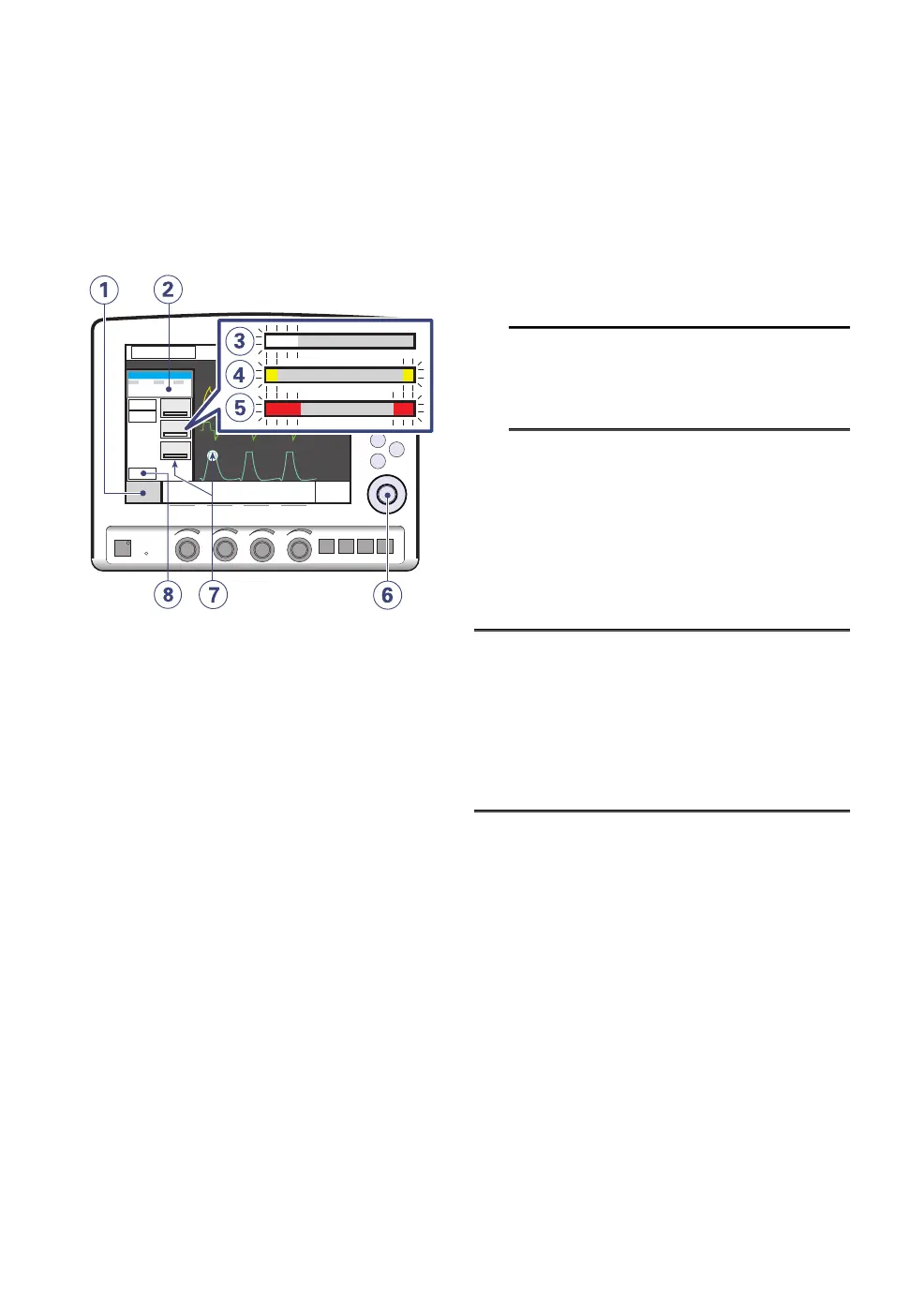

1. The Additional settings touchpad is in the
lower left corner of the screen.
2. Values derived from settings such as
inspiration time in seconds and calculated
inspiratory flow are displayed.
3. A white bar indicates that the selected
setting is within generally recognized
safety limits.
4. A yellow (advisory) bar indicates that the
selected setting is beyond generally
recognized safety limits (this warning is
accompanied by an audio signal and text
message).
5. A red (warning) bar indicates that the
selected setting is significantly beyond
generally recognized safety limits (this
warning is accompanied by an audio
signal and text message).
6. Turning and pressing the Main Rotary Dial
allows you to select settings and adjust
values.
Note: New settings are effective from
the first breath after adjustment (when
the touchpad is deactivated).
7. The waveforms and measured values are
displayed. Thus, the effects of the
adjustments made can be checked
immediately.
8. The Close touchpad closes the Additional
Settings Window.
Note: The trigger sensitivity bar has
different colors based on the setting. A
green bar indicates a normal setting for flow
triggering. The risk of self-triggering
increases when the bar is red. A white bar
indicates pressure triggering.
SERVO-s VENTILATOR SYSTEM V8.0, User's Manual
117
